Pitot-Static Instruments Quiz PPL

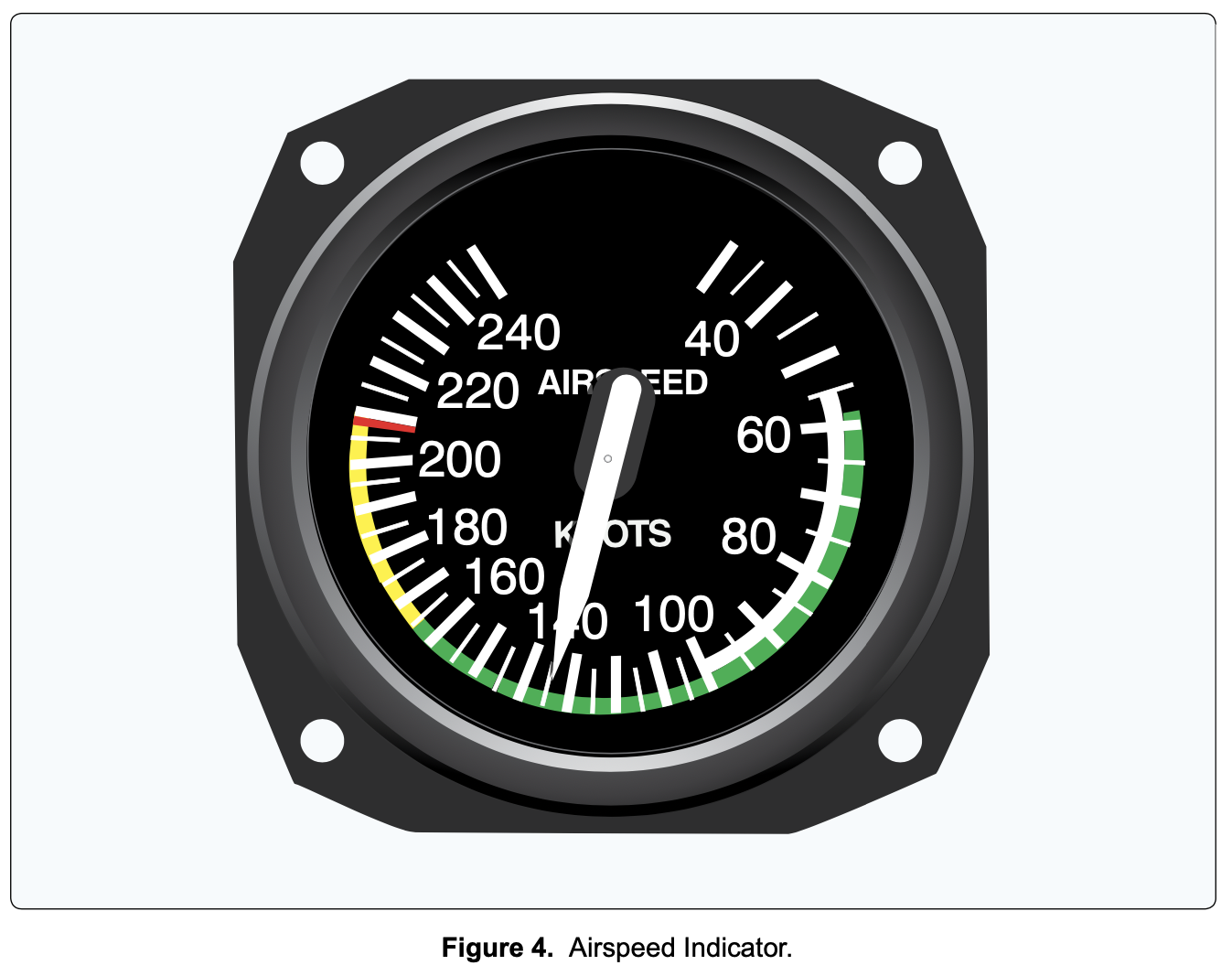

(Refer to Figure 4.) Which color identifies the power-off stalling speed in a specified configuration?
Upper limit of the green arc.
Upper limit of the white arc.
Lower limit of the green arc.
What does the red line on an airspeed indicator represent?
Maneuvering speed.
Turbulent or rough-air speed.
Never-exceed speed.
Which would provide the greatest gain in altitude in the shortest distance during climb after takeoff?
VY.
VA.
VX.
Which V-speed represents maximum landing gear extended speed?
VLE.
VLO.
VFE.
(Refer to Figure 4.) What is the caution range of the airplane?
0 to 60 KTS.
100 to 165 KTS.
165 to 208 KTS.
(Refer to Figure 4.) The maximum speed at which the airplane can be operated in smooth air is
100 KTS.
165 KTS.
208 KTS.
After takeoff, which airspeed would the pilot use to gain the most altitude in a given period of time?
VY.
VX.
VA.
(Refer to Figure 4.) Which color identifies the power-off stalling speed with wing flaps and landing gear in the landing configuration?
Upper limit of the green arc.
Upper limit of the white arc.
Lower limit of the white arc.
Which V-speed represents best-angle-of-climb speed?
VA.
VX.
VY.
Which V-speed represents maneuvering speed?
VA.
VLO.
VNE.
(Refer to Figure 4.) What is the maximum structural cruising speed?
100 KTS.
165 KTS.
208 KTS.
The speed at which a single flight control can be moved, one time, to its full deflection without risk of damage to the aircraft is
maneuvering speed.
structural cruise speed.
never exceed speed.
VSO is defined as the
stalling speed or minimum steady flight speed in the landing configuration.
stalling speed or minimum steady flight speed in a specified configuration.
stalling speed or minimum takeoff safety speed.
What is an important airspeed limitation that is not color coded on airspeed indicators?
Never-exceed speed.
Maximum structural cruising speed.
Maneuvering speed.
(Refer to Figure 4.) Which color identifies the normal flap operating range?
The lower limit of the white arc to the upper limit of the green arc.
The green arc.
The white arc.
Which V-speed represents maximum flap extended speed?
VFE.
VLOF.
VFC.
If the pitot tube and outside static vents become clogged, which instruments would be affected?
The altimeter, airspeed indicator, and turn-and-slip indicator.
The altimeter, airspeed indicator, and vertical speed indicator.
The altimeter, attitude indicator, and turn-and-slip indicator.
Which instrument will become inoperative if the pitot tube becomes clogged?
Altimeter.
Vertical speed.
Airspeed.
Which instrument(s) will become inoperative if the static vents become clogged?
Airspeed only.
Altimeter only.
Airspeed, altimeter, and vertical speed.
(Refer to Figure 3) Altimeter 1 indicates
500 feet.
1,500 feet.
10,500 feet.
(Refer to Figure 3) Altimeter 2 indicates
1,500 feet.
4,500 feet.
14,500 feet.
(Refer to Figure 3.) Altimeter 3 indicates
9,500 feet.
10,950 feet.
15,940 feet.
(Refer to Figure 3.) Which altimeter(s) indicate(s) more than 10,000 feet?
1, 2, and 3.
1 and 2 only.
1 only.
Altimeter setting is the value to which the barometric pressure scale of the altimeter is set so the altimeter indicates
calibrated altitude at field elevation.
absolute altitude at field elevation.
true altitude at field elevation.
How do variations in temperature affect the altimeter?
Pressure levels are raised on warm days and the indicated altitude is lower than true altitude.
Higher temperatures expand the pressure levels and the indicated altitude is higher than true altitude.
Lower temperatures lower the pressure levels and the indicated altitude is lower than true altitude.
What is true altitude?
The vertical distance of the aircraft above sea level.
The vertical distance of the aircraft above the surface.
The height above the standard datum plane.
What is absolute altitude?
The altitude read directly from the altimeter.
The vertical distance of the aircraft above the surface.
The height above the standard datum plane.
What is pressure altitude?
The indicated altitude corrected for position and installation error.
The altitude indicated when the barometric pressure scale is set to 29.92.
The indicated altitude corrected for nonstandard temperature and pressure.
Under what condition is indicated altitude the same as true altitude?
If the altimeter has no mechanical error.
When at sea level under standard conditions.
When at 18,000 feet MSL with the altimeter set at 29.92.
If it is necessary to set the altimeter from 29.15 to 29.85, what change occurs?
70-foot increase in indicated altitude.
70-foot increase in density altitude.
700-foot increase in indicated altitude.
The pitot system provides impact pressure for which instrument?
Altimeter.
Vertical-speed indicator.
Airspeed indicator.
If a pilot changes the altimeter setting from 30.11 to 29.96, what is the approximate change in indication?
Altimeter will indicate .15 inches Hg higher.
Altimeter will indicate 150 feet higher.
Altimeter will indicate 150 feet lower.
If a flight is made from an area of low pressure into an area of high pressure without the altimeter setting being adjusted, the altimeter will indicate
the actual altitude above sea level.
higher than the actual altitude above sea level.
lower than the actual altitude above sea level.
If a flight is made from an area of high pressure into an area of lower pressure without the altimeter setting being adjusted, the altimeter will indicate
lower than the actual altitude above sea level.
higher than the actual altitude above sea level.
the actual altitude above sea level.
Under what condition will true altitude be lower than indicated altitude?
In colder than standard air temperature.
In warmer than standard air temperature.
When density altitude is higher than indicated altitude.
Which condition would cause the altimeter to indicate a lower altitude than true altitude?
Air temperature lower than standard.
Atmospheric pressure lower than standard.
Air temperature warmer than standard.
