Gyroscopic Instruments Quiz PPL

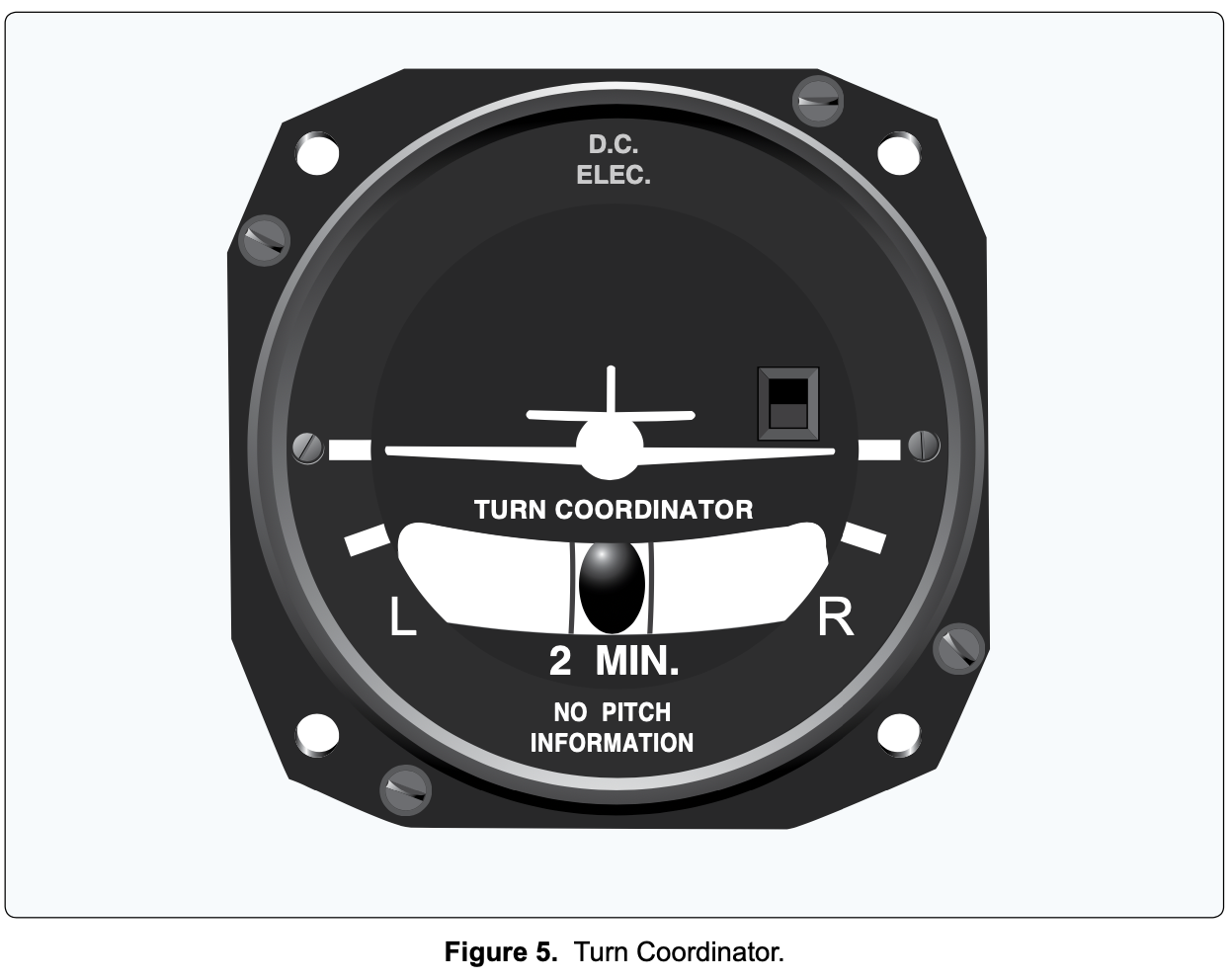

(Refer to Figure 5.) A turn coordinator provides an indication of the
movement of the aircraft about the yaw and roll axes.
angle of bank up to but not exceeding 30°.
attitude of the aircraft with reference to the longitudinal axis.

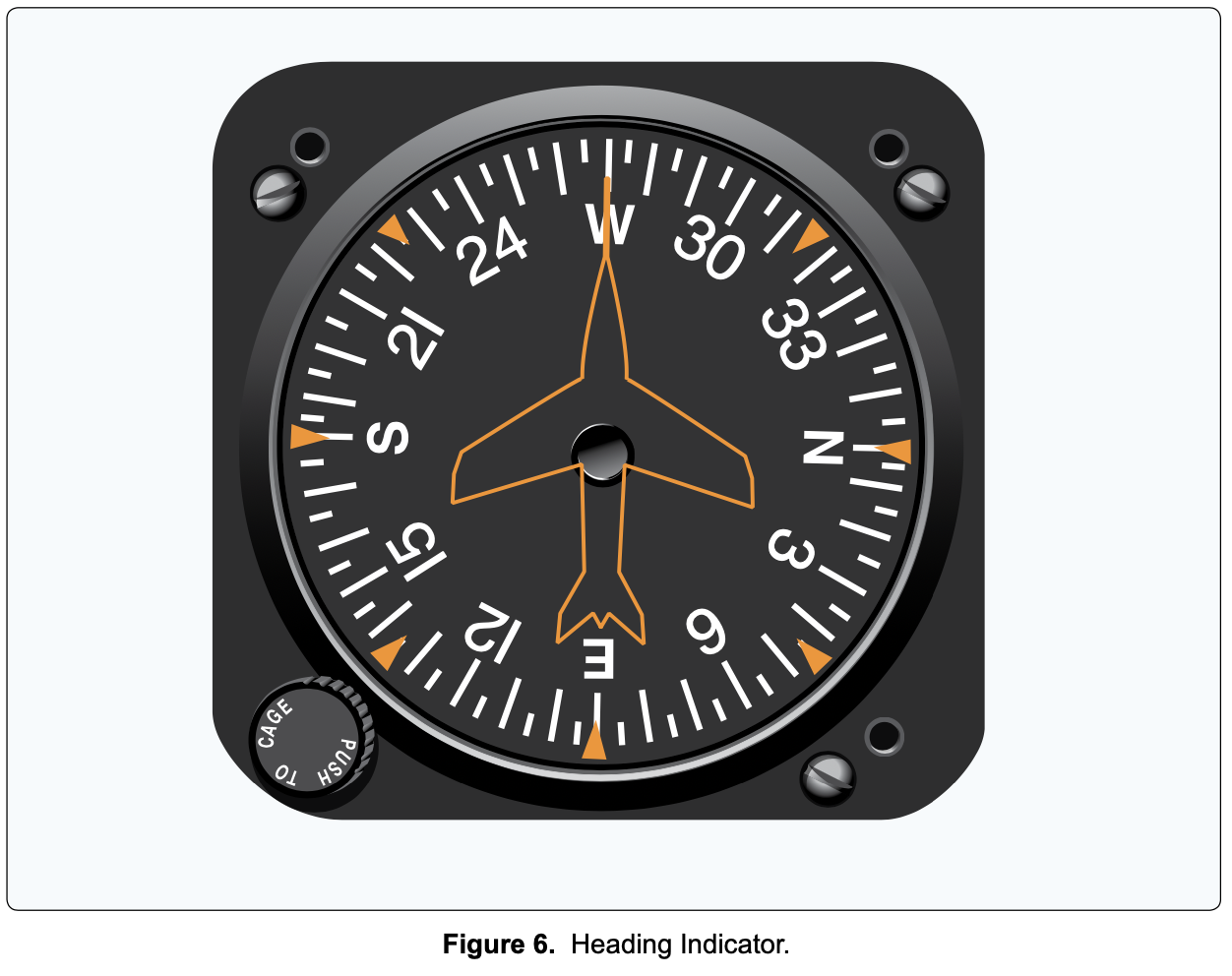

(Refer to Figure 6.) To receive accurate indications during flight from a heading indicator, the instrument must be
set prior to flight on a known heading.
calibrated on a compass rose at regular intervals.
periodically realigned with the magnetic compass as the gyro precesses.

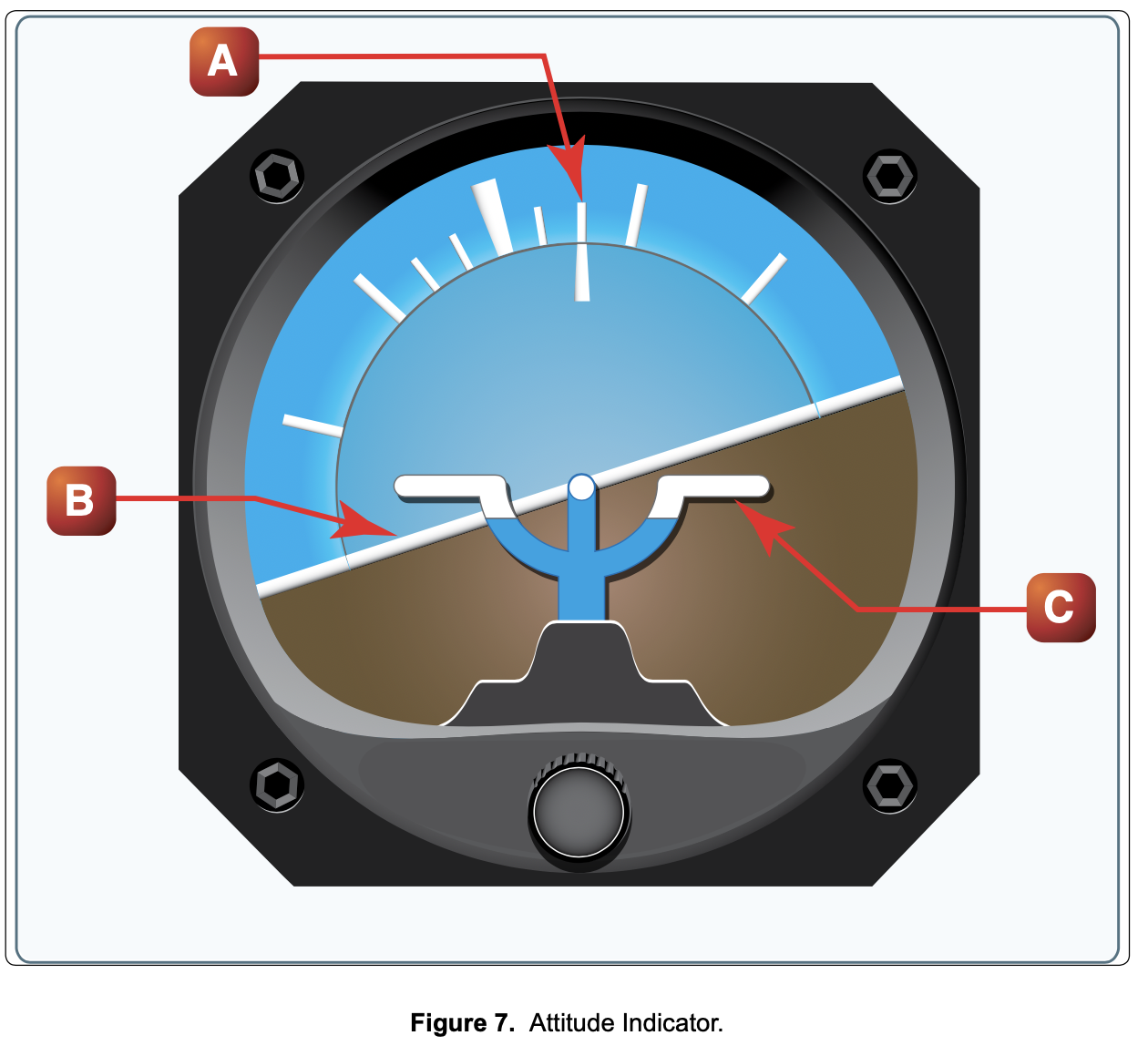

(Refer to Figure 7.) The proper adjustment to make on the attitude indicator during level flight is to align the
horizon bar to the level-flight indication.
horizon bar to the miniature airplane.
miniature airplane to the horizon bar.
(Refer to Figure 7.) How should a pilot determine the direction of bank from an attitude indicator such as the one illustrated?
By the direction of deflection of the banking scale (A).
By the direction of deflection of the horizon bar (B).
By the relationship of the miniature airplane (C) to the deflected horizon bar (B).
What is an advantage of an attitude indicator that is displayed digitally?
It is more sensitive than the analog instrument.
The indicator can be moved to any place around the PFD.
The horizon line extends all the way to the edges of the PFD.
