Hydraulics - Week 4 - Just the pictures
Hydraulics Knowledge Challenge
Test your understanding of hydraulics with our engaging quiz designed specifically for enthusiasts and professionals alike! Dive into a variety of questions that cover various types of actuators, accumulators, and switches.
Key Features:
- 42 carefully crafted questions
- Multiple choice format for easy answers
- Designed for all levels of expertise

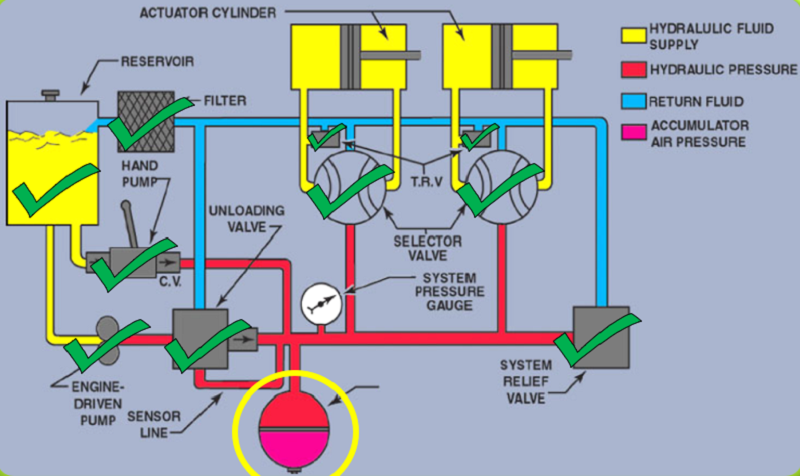

What is indicated by the yellow circle?
Actuator Cylinder
Accumulator
Sensor Line
System Relief Valve

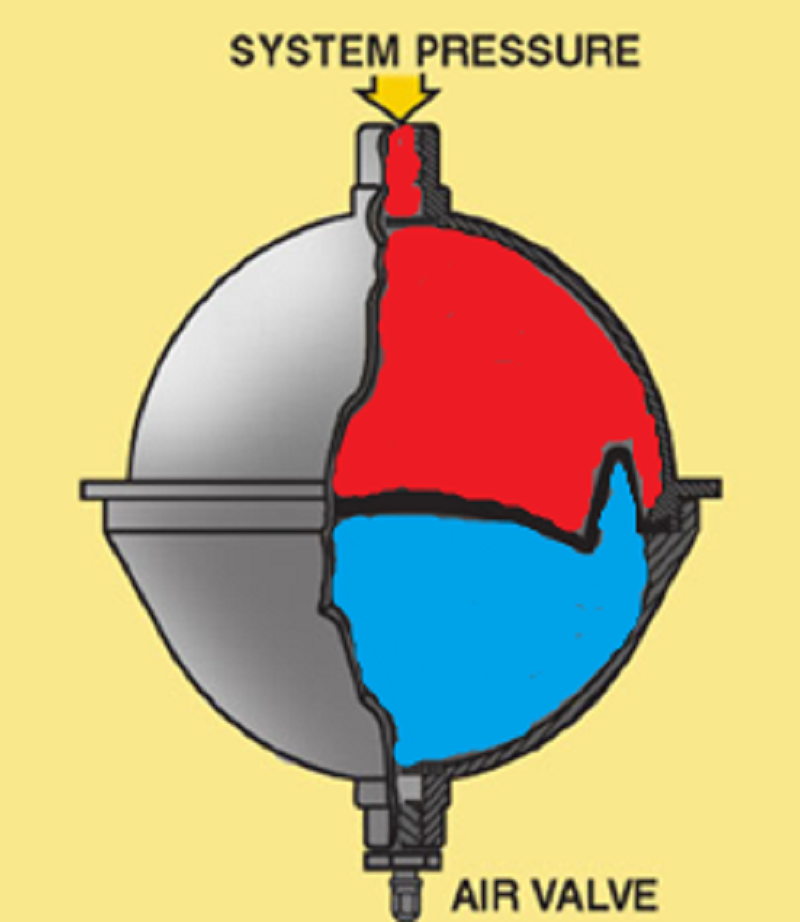

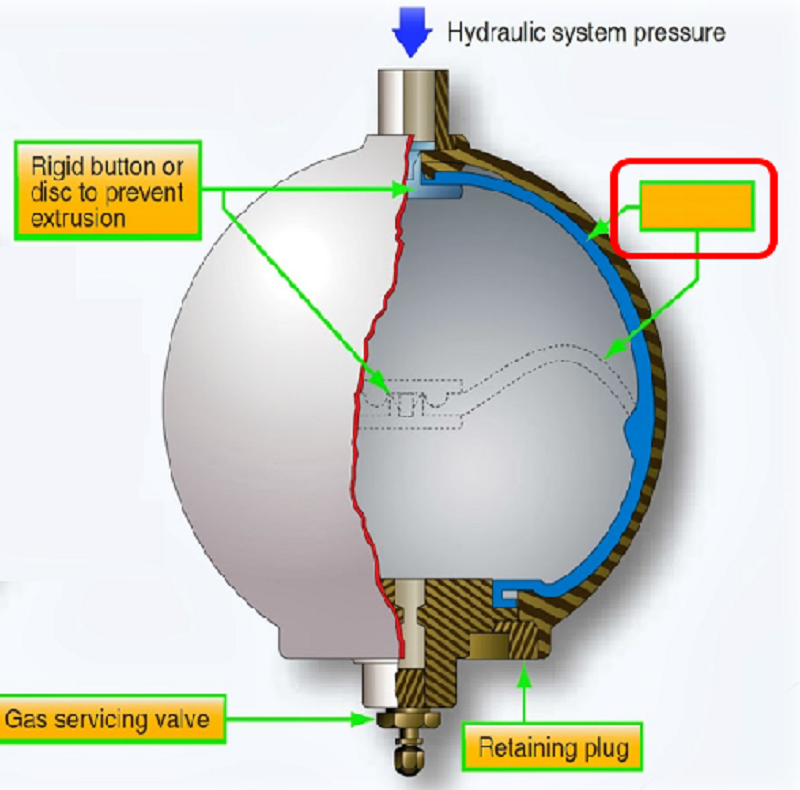

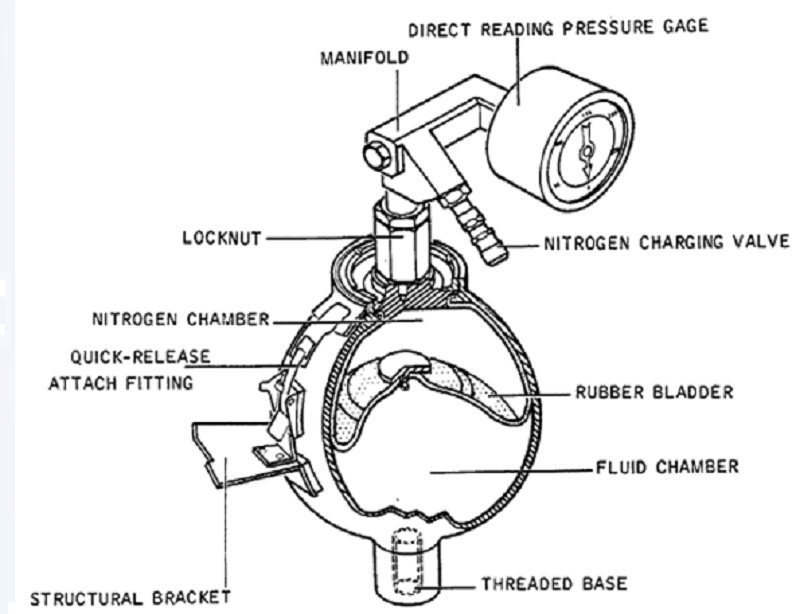

What type of accumulator is shown by the picture?
Piston
Bladder
Diaphragm
Metal-Bellows

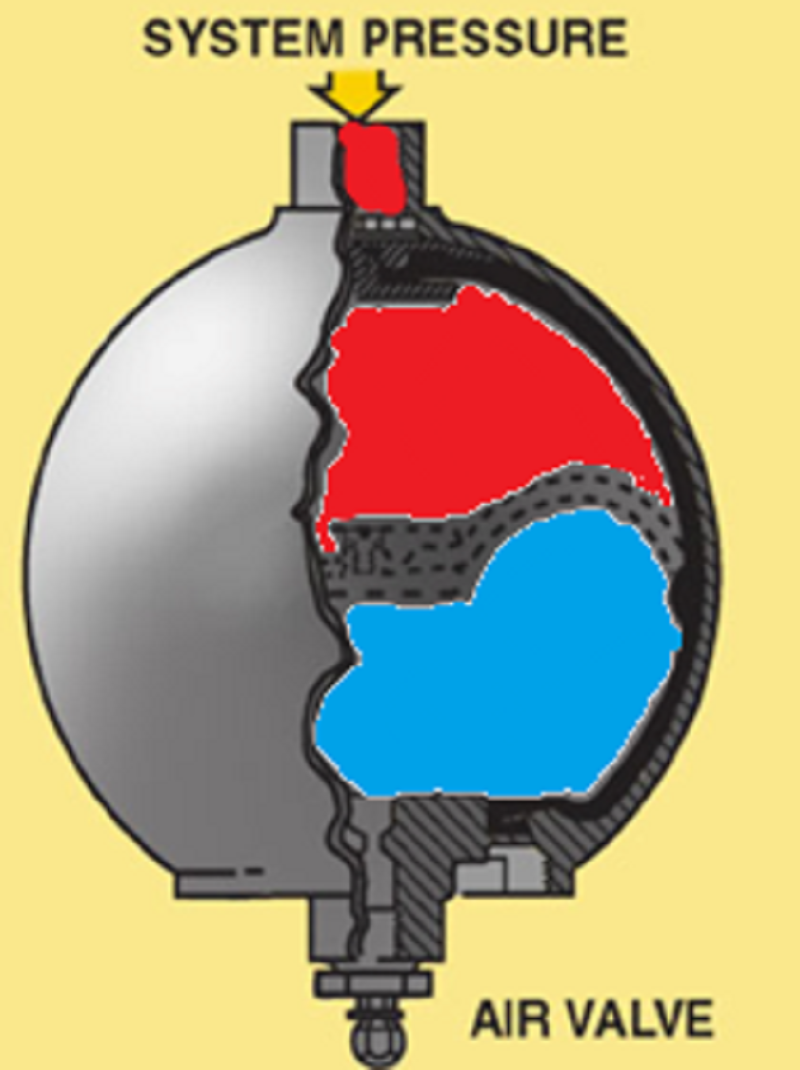

What type of accumulator is shown by the picture?
Piston
Bladder
Diaphragm
Metal-Bellows
What type of accumulator is shown by the picture?
Piston
Bladder
Diaphragm
Metal-Bellows

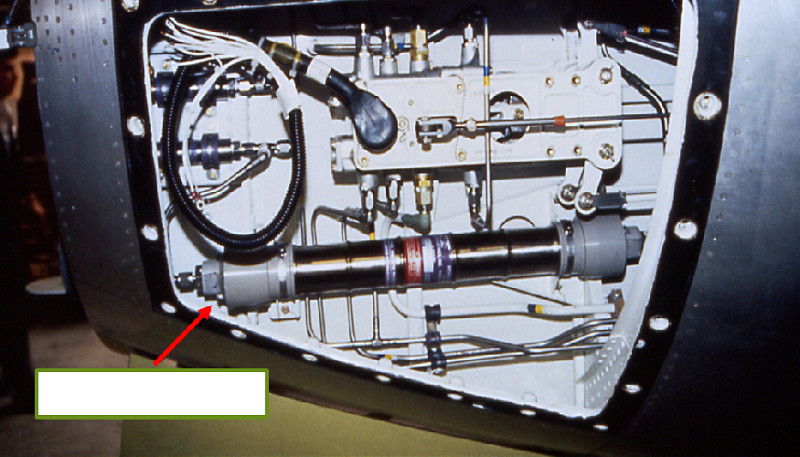

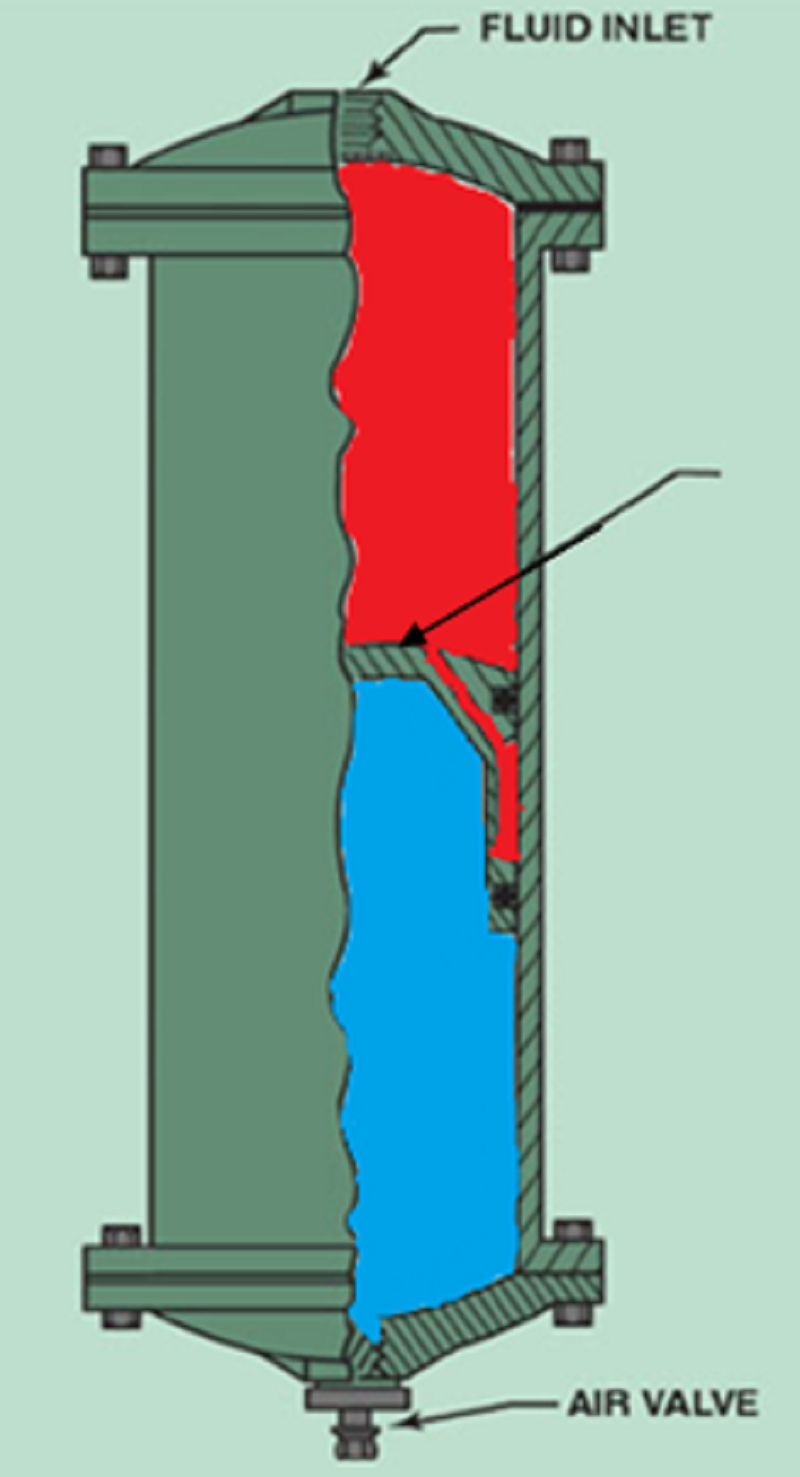

The arrow indicates what?
Brake accumulator
Piston accumulator
Bladder accumulator
Diaphragm Accumulator

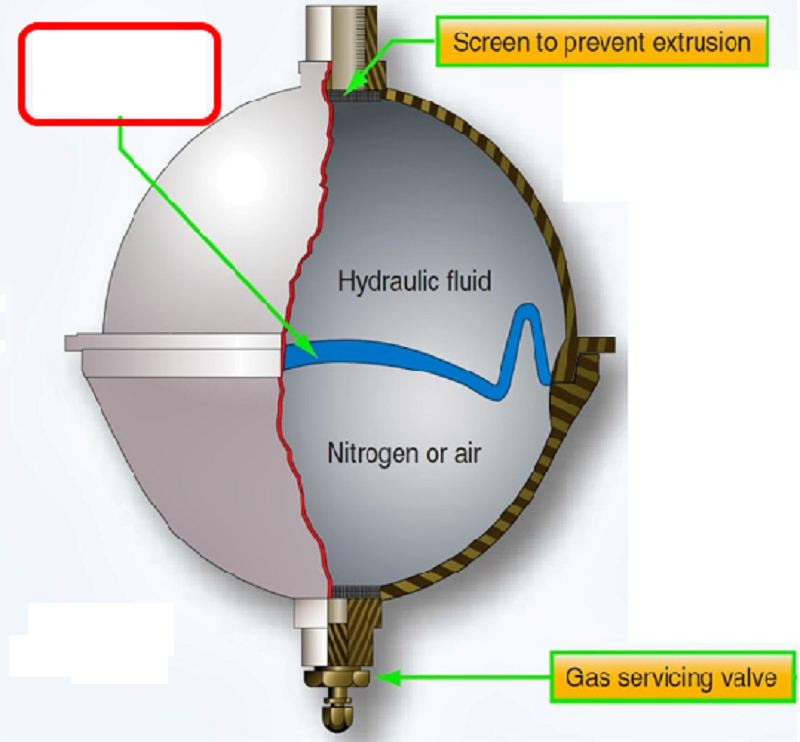

What is it?
Diaphragm
Piston
Bladder
Brake
What is it?
Bladder
Piston
Brake
Diaphragm

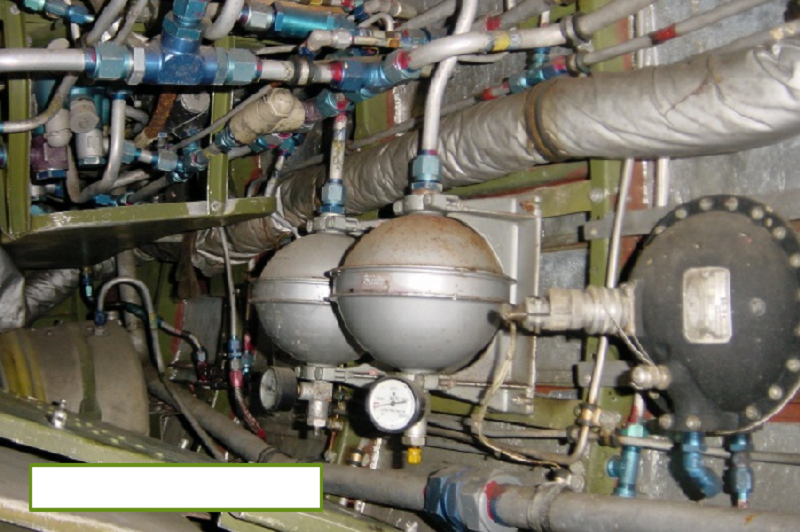

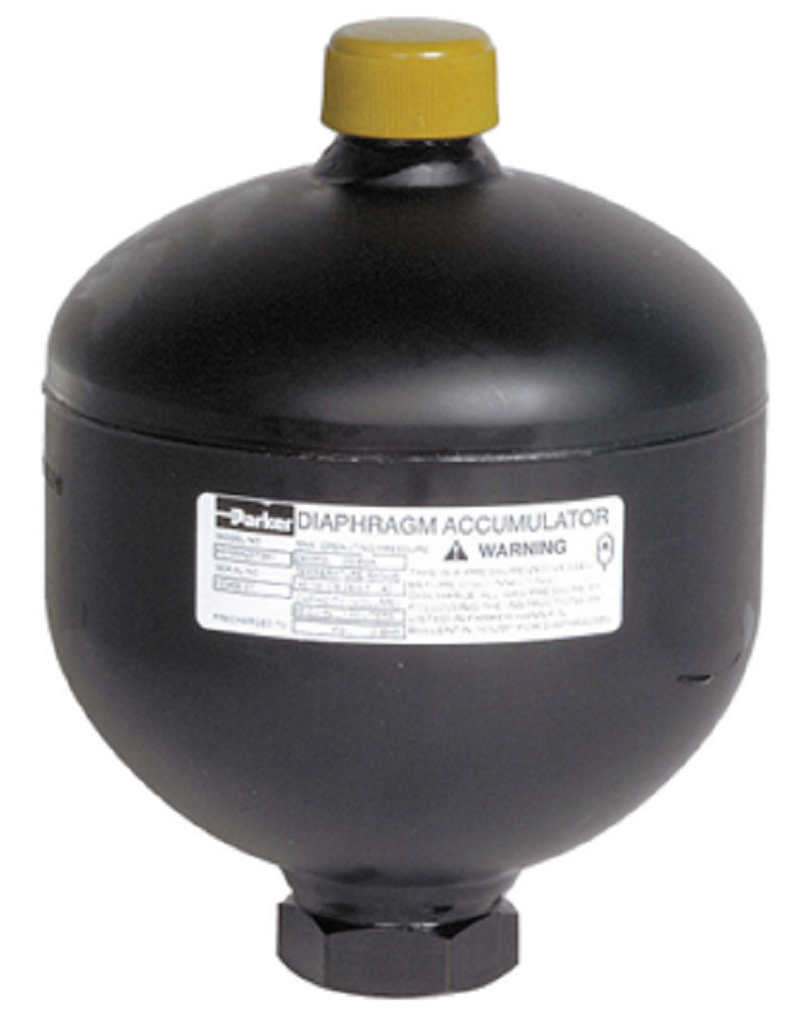

What type of accumulator is this?
Diaphragm
Brake
Piston
Bladder
What type of accumulator is this?
Diaphragm
Brake
Piston
Bladder

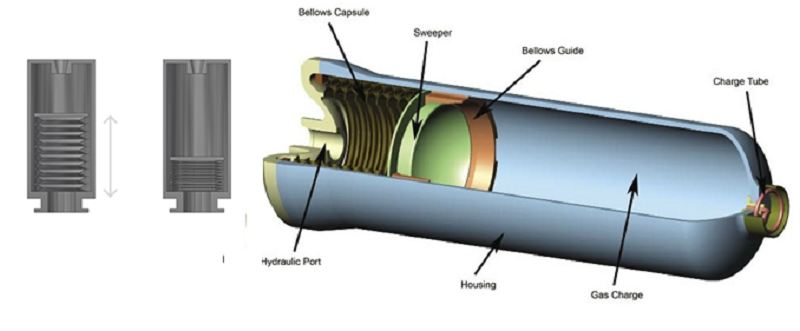

What type of accumulator is this?
Metal bellows
Brake
Piston
Diaphragm

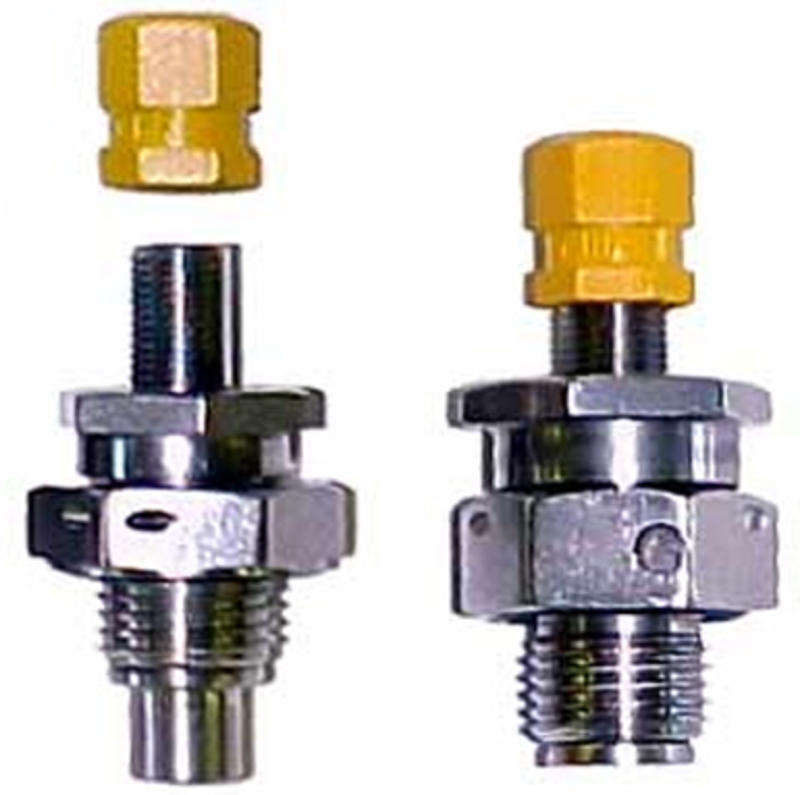

What type of servicing valve is this?
Pressure regulator valve to maintain system pressure
Shrader valve to add hydraulic fluid
Pressure relief valve should regulator fail
Schrader valve to add dry air or nitrogen

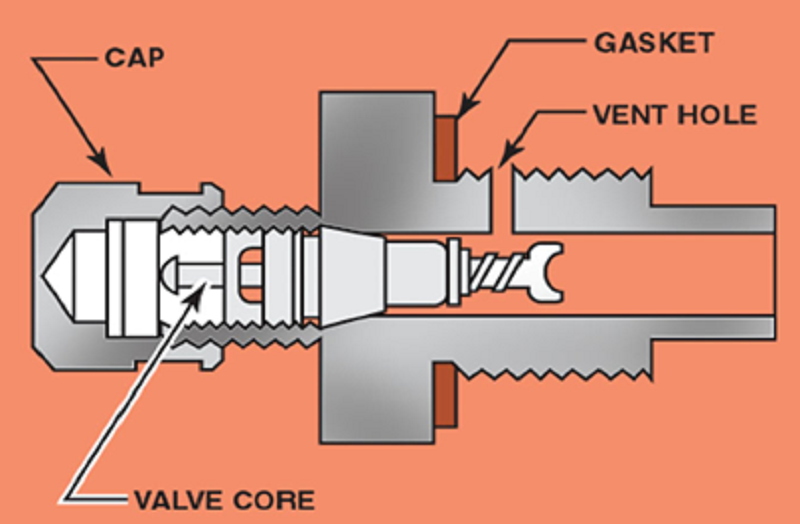

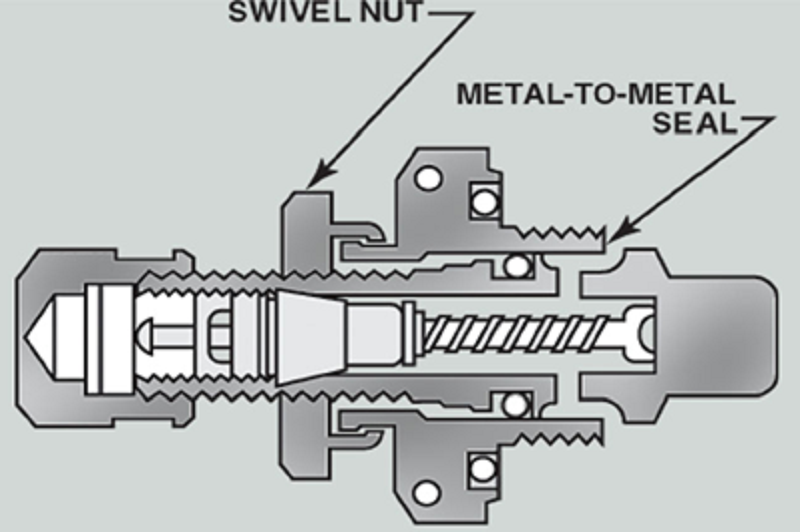

Identify the model number of the shown Schrader valve
AN812
AN6287
MS28889
MS7606

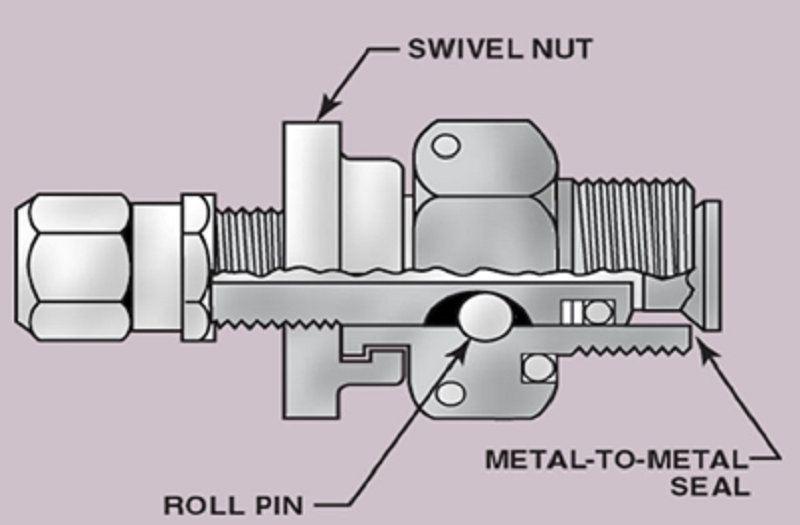

Identify the model number of the shown Schrader valve
AN812
AN6287
MS28889
MS7606
Identify the model number of the shown Schrader valve
AN812
AN6287
MS28889
MS7606
This is what ____ looks like
Accumulator
Reservoir
Pressure relief valve
Engine driven pump

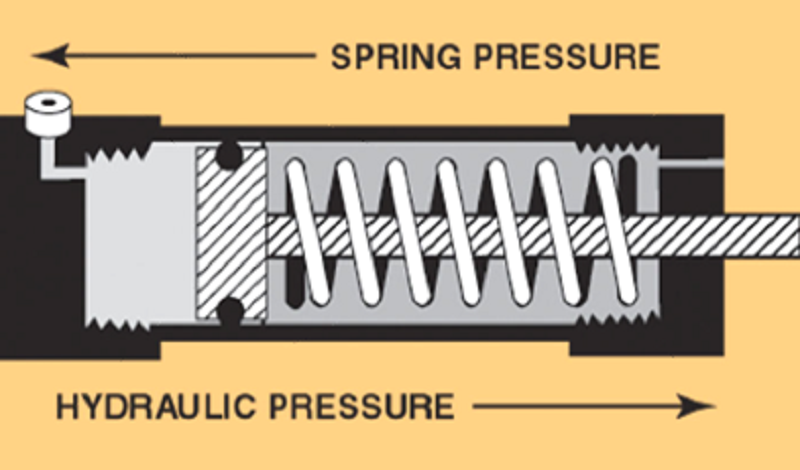

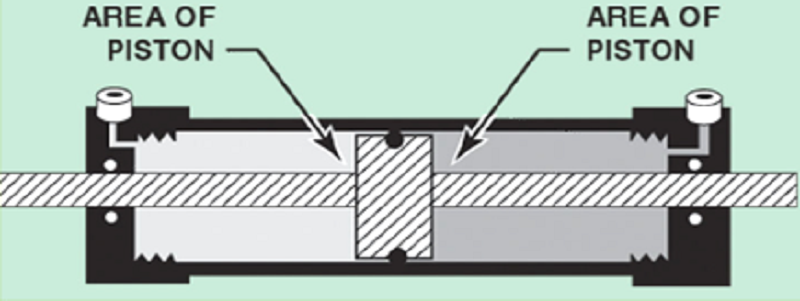

What type of actuator?
Single Acting
Double Acting
Double Acting Balanced
Cushioned Gear Actuator

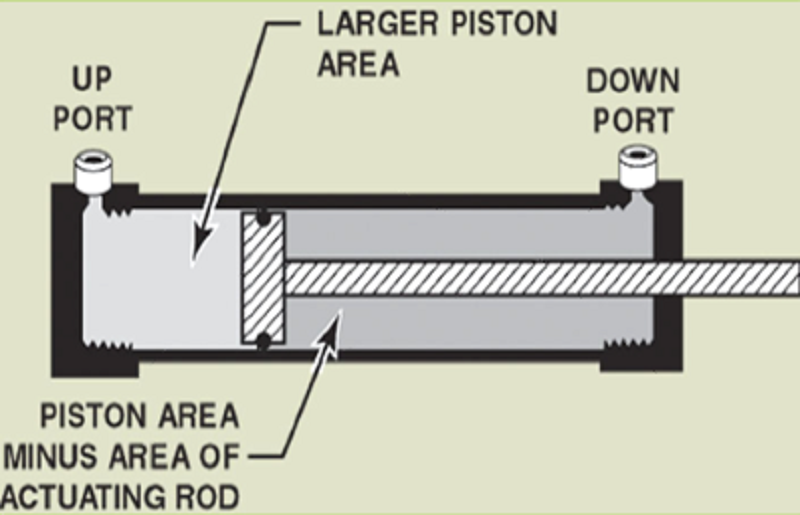

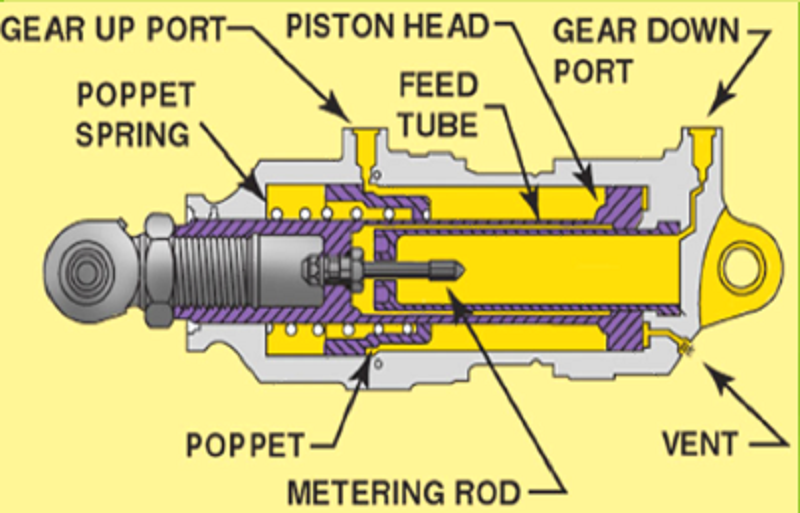

What type of actuator?
Single Acting
Double Acting Unbalanced
Double Acting Balanced
Cushioned Gear Actuator
What type of actuator?
Single Acting
Lock Actuator
Double Acting Balanced
Cushioned Gear Actuator
What type of actuator?
Single Acting
Lock Actuator
Double Acting Balanced
Cushioned Gear Actuator
What type of actuator?
Single Acting
Lock Actuator
Double Acting Balanced
Cushioned Gear Actuator
What type of actuator?
Rack & Pinion Actuator
Single Acting Balanced Actuator
Double Acting Balanced Actuator
Single Acting Actuator

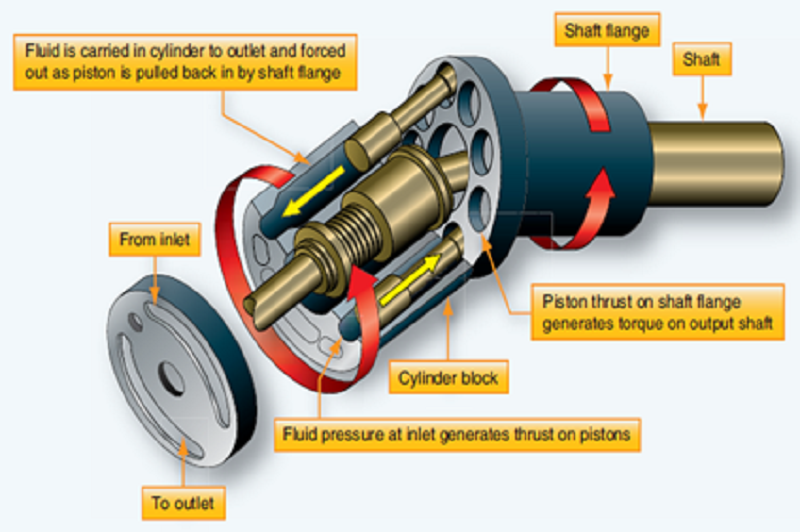

What type of actuator?
Rotary - hydraulic motor
Rack & Pinion
Single Acting Balanced Actuator
Double Acting balanced Actuator

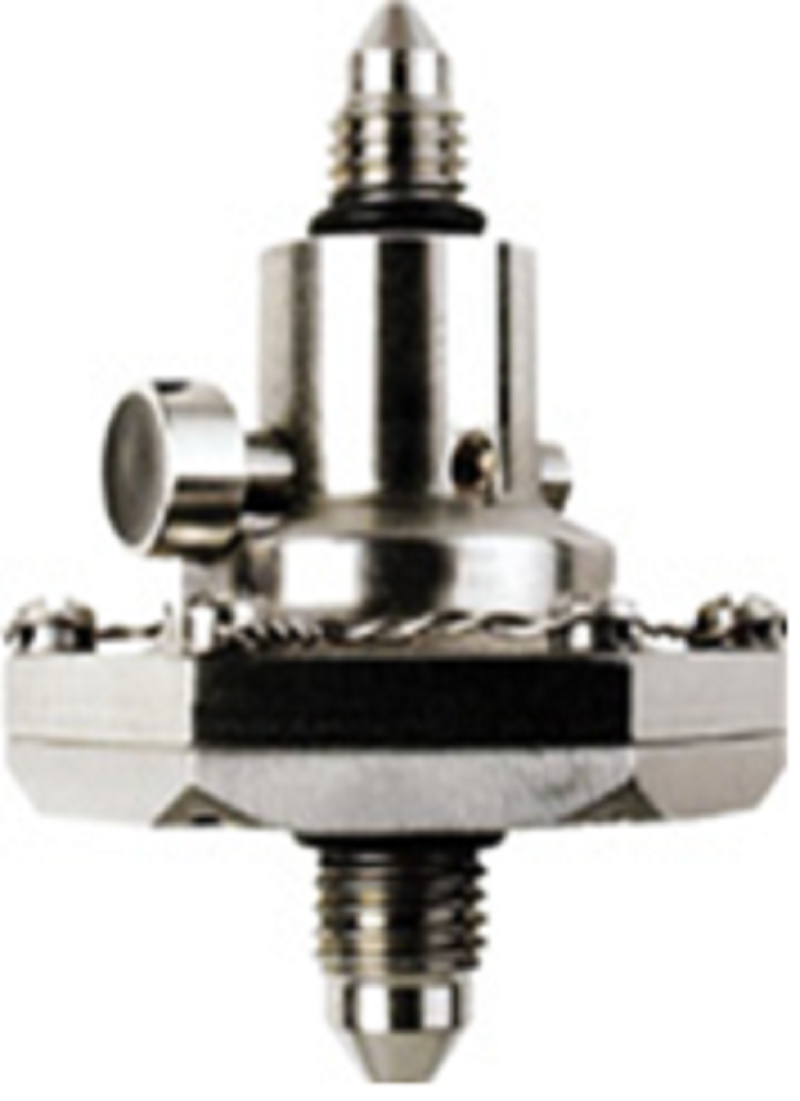

What type of switch?
Piston
Sensory
Diaphragm
Differential Pressure

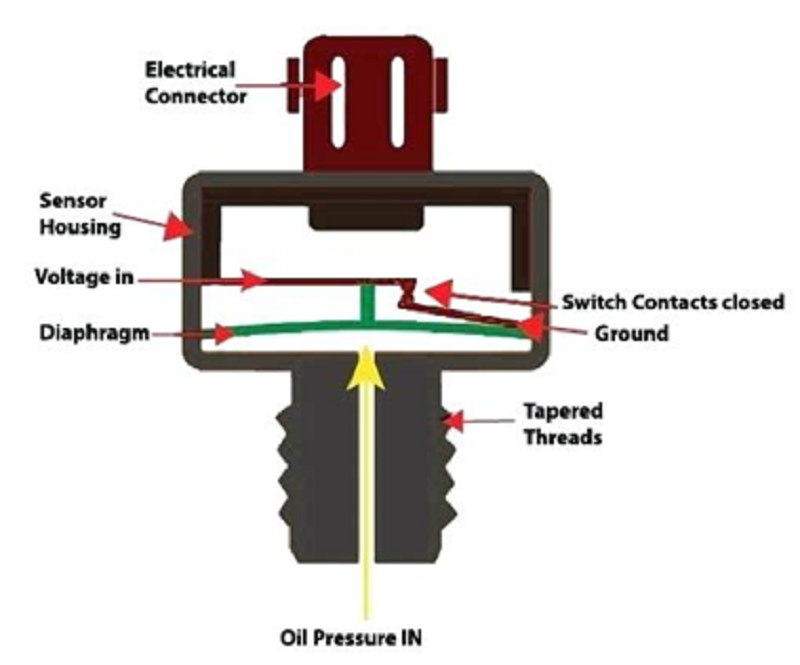

What type of switch?
Piston
Proximity
Diaphragm
Differential Pressure
What type of switch?
Differential Pressure
Piston
Proximity
Diaphragm
What type of transmitter do you see here?
Position transmitter
Thermal transmitter
Pressure transmitter
Proximity

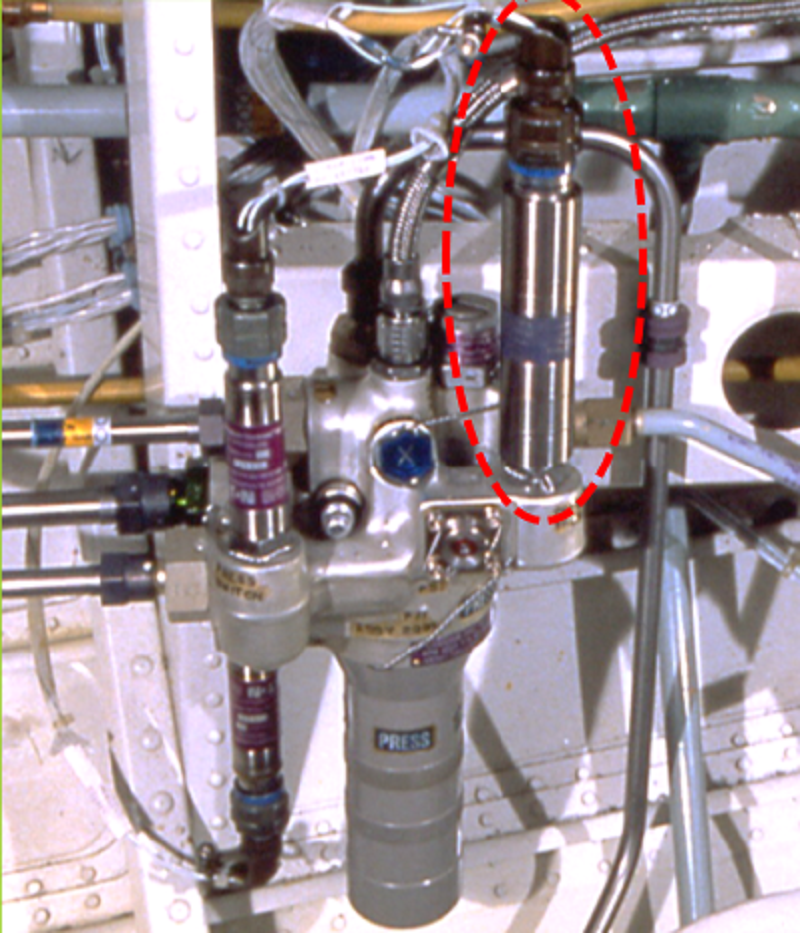

What's indicated by the red circle?
Position transmitter
Thermal transmitter
Pressure transmitter/transducer
Proximity

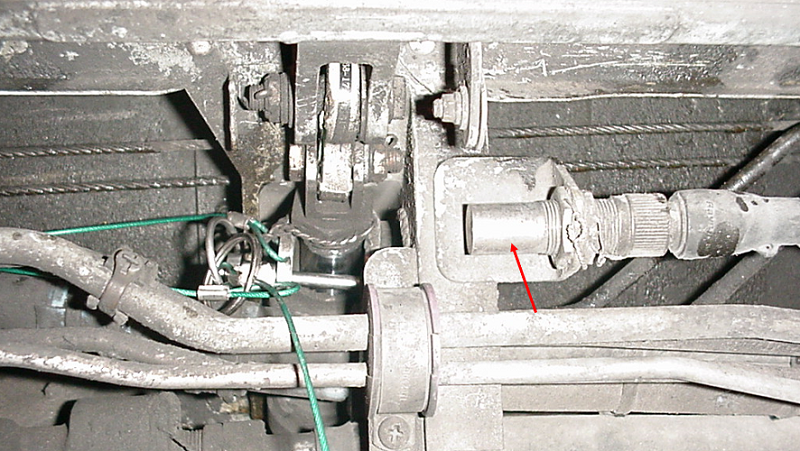

What is indicated by the red arrow?
Potentiometer
Micro switch
Limit switch
Proximity Sensor

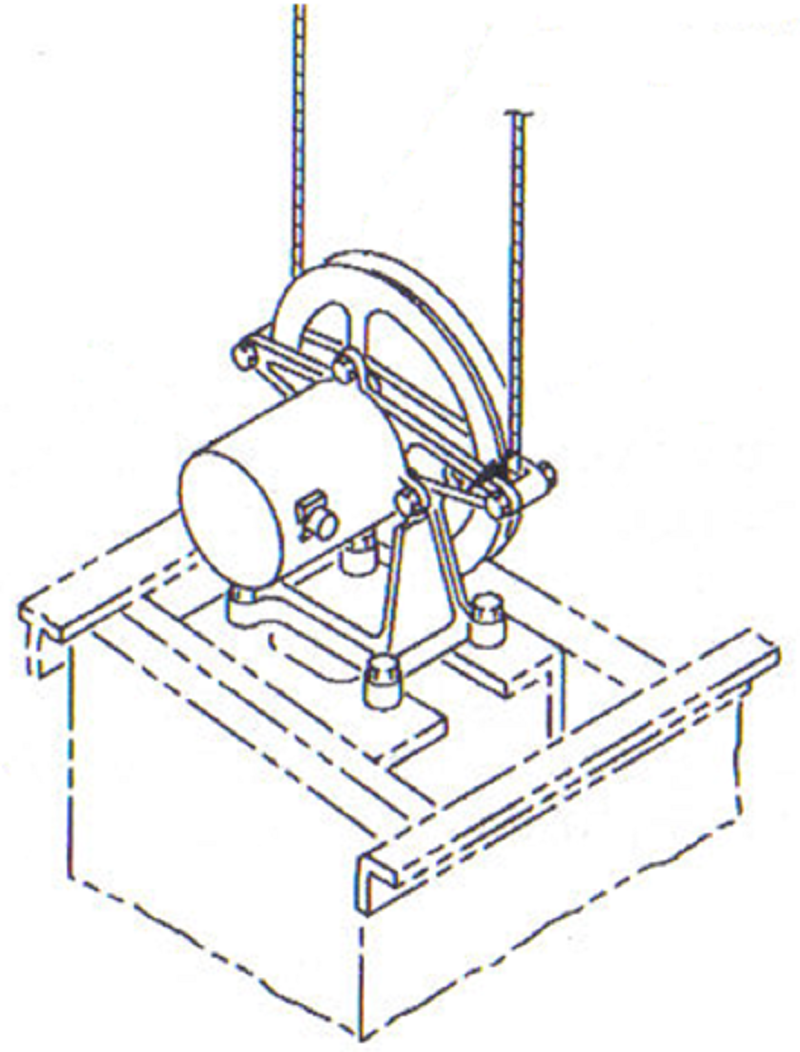

The picture shows module of position transmitter and ____________
Limit switch
Micro switch
Proximity switch
Potentiometer

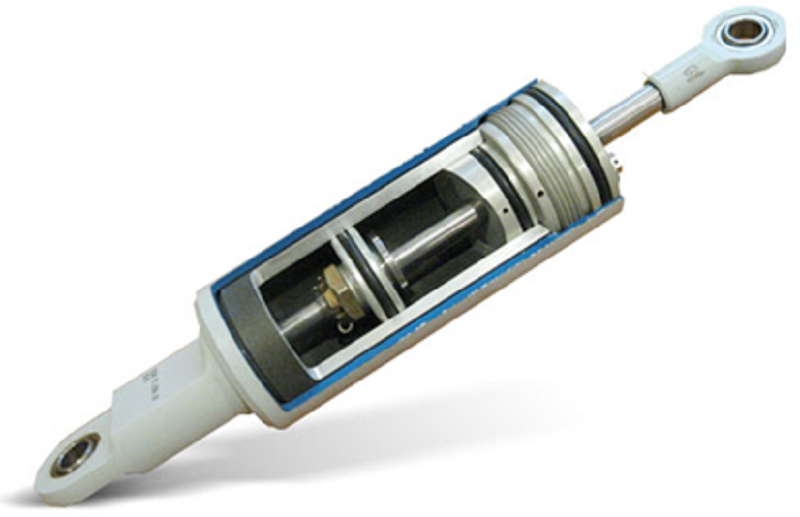

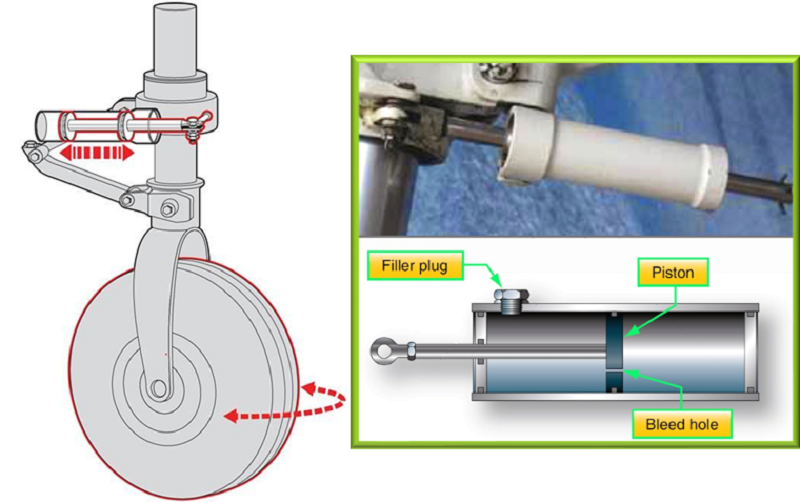

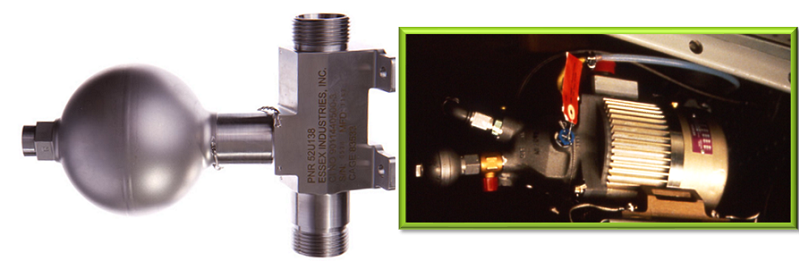

What type of damper?
Piston type damper
Vane-type damper
Pulsation damper
Shimmy damper

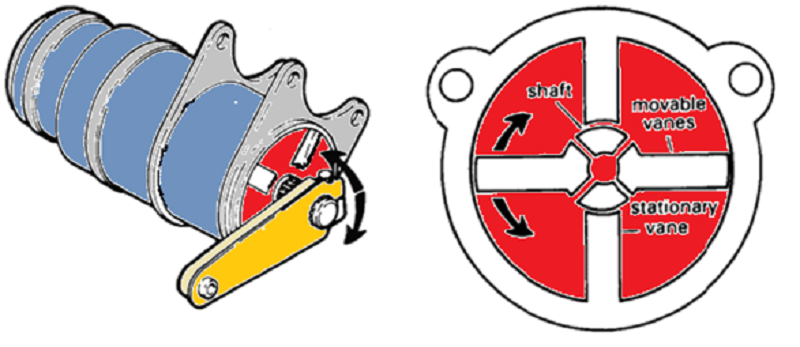

What type of damper is this?
Piston type damper
Fixed wing damper
Rotary type damper
Vane type damper
What type of damper?
Piston type damper
Vane type damper
Nose wheel steering damper
Rotary damper

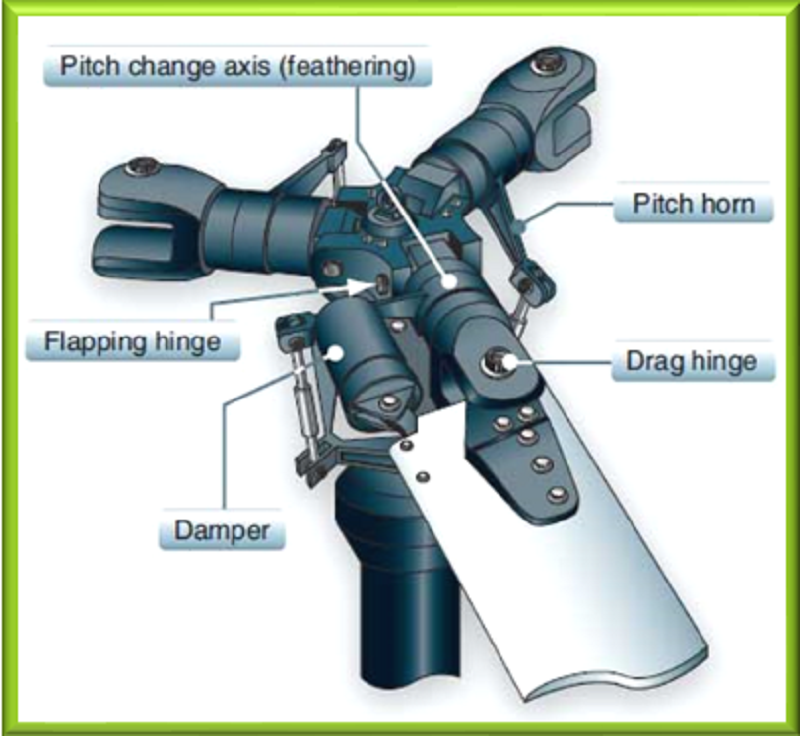

What type of damper?
Flutter damper
Vane damper
Nose wheel steering damper
Main Rotor Lead-Lag Damper
What type of damper?
Flutter damper
Vane damper
Nose wheel steering damper
Main Rotor Lead-Lag Damper
What type of damper?
Flutter damper
Pulsation damper
Nose wheel steering damper
Vane damper

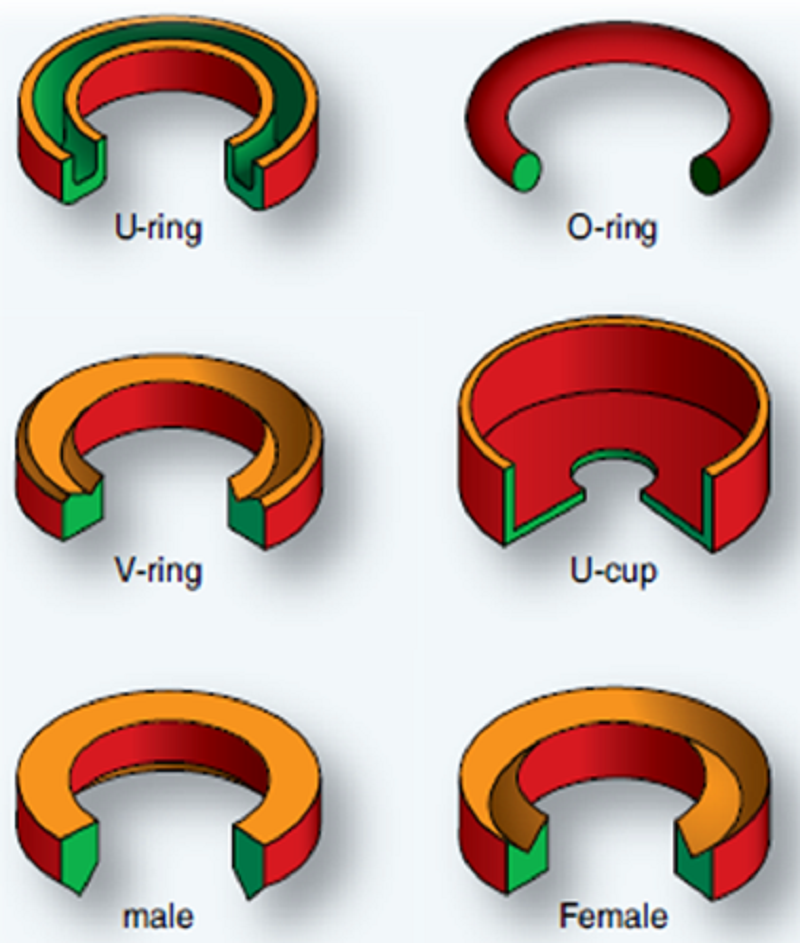

What type of seal is this?
One way seal
Two way seal
Three way seal
Blocking seal
Rings shown in the picture are what type of rings?
One way rings
Two way rings
Three way rings
Blocking seal

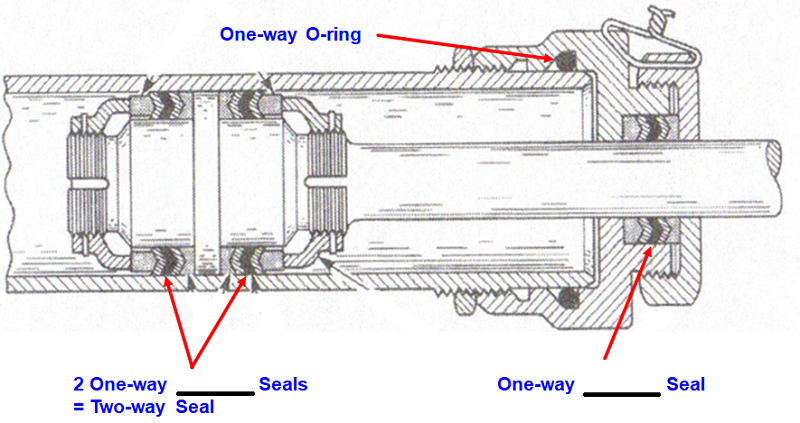

What type of rings are shown by red arrows?
U ring
V ring
Chevron
Cup

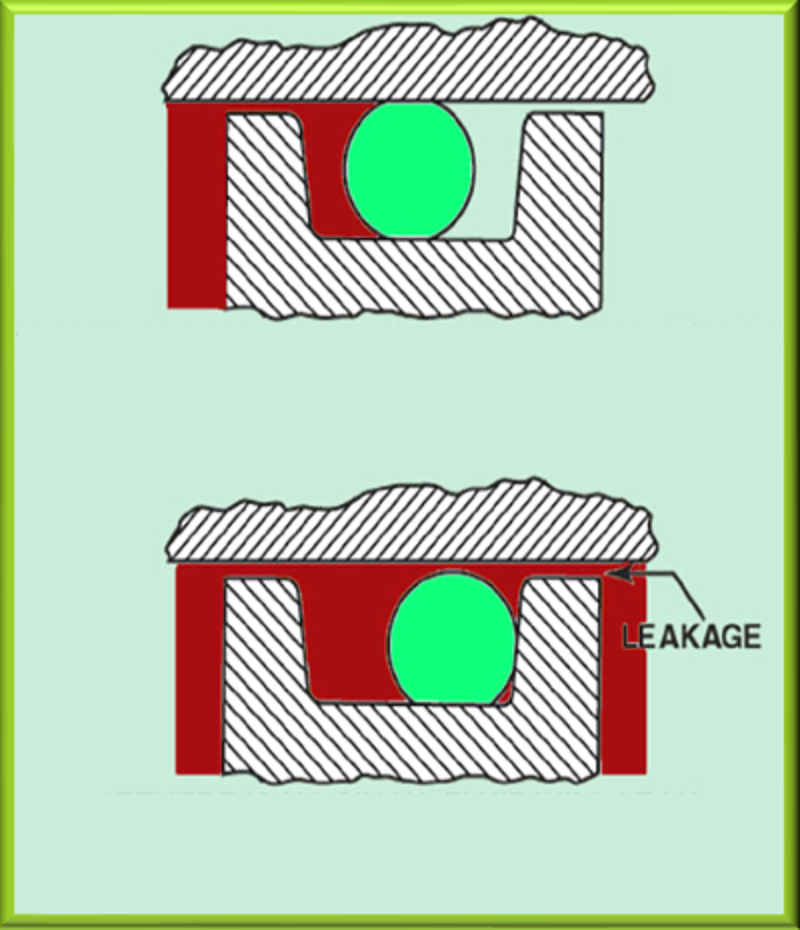

The sealing mechanism of an O-ring is provided by what?
Pinching
Squeezing
Hardening
Stretching

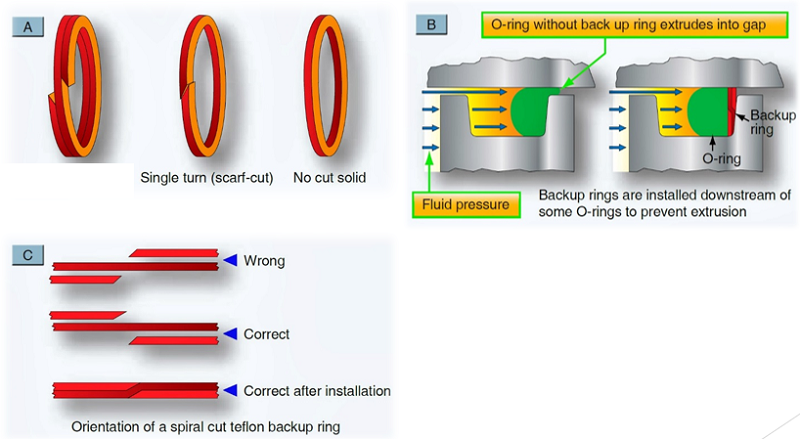

Back up ring prevents what?
Extrusions of the O-ring
Elevation of the O-ring
Bulking of the O-ring
Hardening of the O-ring
What is the O-ring #A called?
Spiral cut
Tornado cut
Twisting cut
Teflon cut

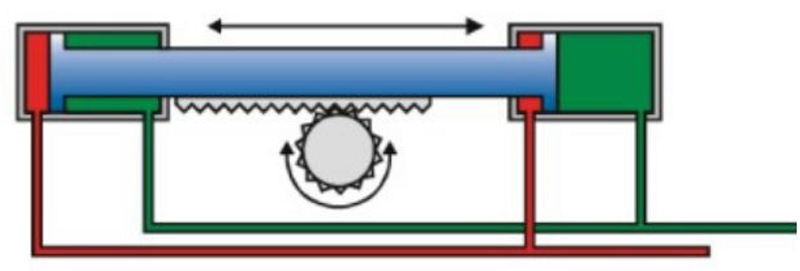

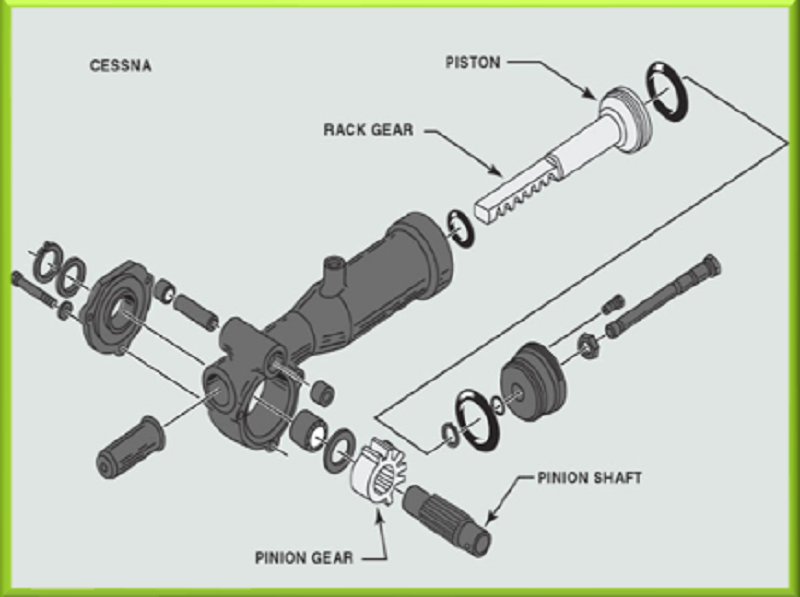

I mean, the picture literally says rack and pinion in it, but just in case
Rack & Pinion Actuator
