Rotary Week 5
What is the definition of the term Pitch Angle?
The distance rom the blade root to the blade tip along the centerline of the blade
The distance from the leading edge to the trailing edge
The angle between the chord line and the reference plane determined by the rotor hub
The acute angle between the relative wind and the chord line of the blade
How is the flapping action accomplished on the Hughes 500 MRH?
Horizontally mounted hinge pins or bolts
Flexing of a strap pack assembly
Flexing of the star arm assembly
Flexing of the spindle assembly inside the elastomeric retention and thrust bearings
What type of rotor head is the Sikorsky S-58 MRH?
Semi-articulated main rotor head
Fully articulated main rotor head
Rigid main rotor head
Semi-rigid main rotor head
How is the flapping action accomplished on the AS350/355 MRH?
Flexing of the spindle assembly inside the elastomeric retention and thrust bearings
Horizontally mounted hinge pins or bolts
Flexing of the star arm assembly
Flexing of a strap pack assembly
What type of bearing assembly supports the hub assembly on the stationary mast of the Hughes 500?
Needle bearings
Roller bearings
Tapered roller bearings
Ball type thrust bearings
When a rotor system is at rest, what will occur due to the weight of the blade over their span?
Blade coning
Blade droop
Blade hunting
Blade Flapping
What is the purpose of the tension torsion strap in the Bell 206 MRH?
It is the lead/lag hinge
Transfers the centrifugal force from the grip to the head
Secures the grip to the yoke assembly
All of the above
As the blade of a semi-rigid underslung main rotor head teeters up, what does this blade want to do?
Speed up
Slow down
Change pitch angle
Nothing
During the hover of a helicopter, which of the following conditions exist?
Lift and thrust are both vertical and they are greater than weight and drag
Lift and thrust are both vertical and they are equal to weight and drag
Lift is straight up, thrust is forward and weight and drag are downward
Lift is straight up, thrust is forward, weight is downward and drag is aft

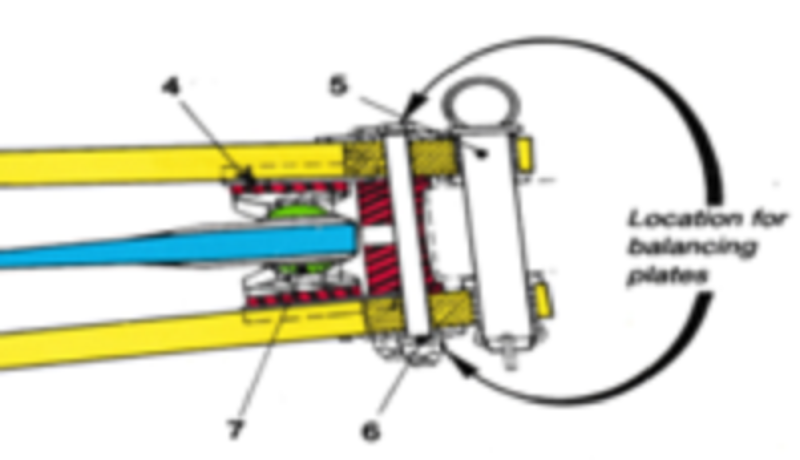

What is item number 5?
Frequency adapter
Blade bolt
Balance washers
Self-lubricating oscillating bearing

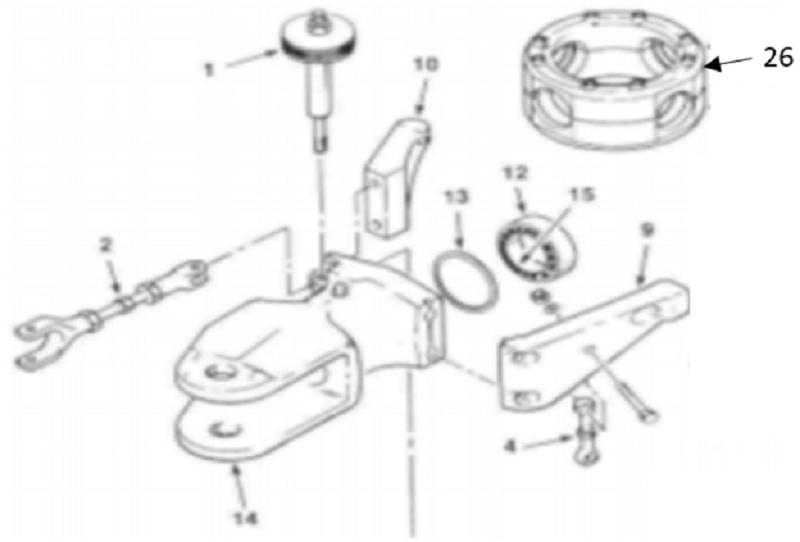

What is item # 1 on the Bell 47 MRH?
Counterweight Assembly
Drag Brace
Grip
Gimbal Ring
What is the meaning of the term "Dry Head" on the Bell 206 MRH?
The MRH is lubricated by oil using self-contain oil reservoirs
The MRH is not lubricated, as there are no moving parts
The MRH is Teflon lined and requires no lubrication
The MRH is lubricated by grease using various grease fittings

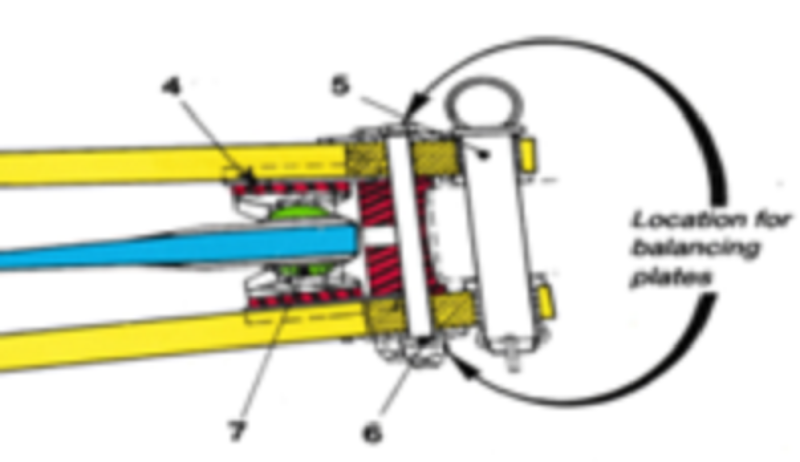

What is item number 7?
Frequency adapter
Blade bolt
Self-lubricating oscillating bearing
Balance washers
If one of the main rotor blade tips is not follow the same tip path plane as the others, this is referred to as which of the following conditions?
Out of balance
In track
Out of track
In phase
How does the Semi-rigid main rotor head deal with the Coriolis Effect?
Lead/Lag or hunting hinge
Teetering hinge
Underslung head design
Blade flexing
If the main rotor blade tips all follow the same tip path plane, this is referred to as which of the following conditions?
Out of balance
In track
Out of track
In phase
What is the purpose of the rotor brake system?
To hold the rotor from tuning during start-up
To stop the rotation of the rotor with engine running to disembark passengers
Stop the helicopter from moving forward while on the ground
To slow the rotor down quickly during shutdown

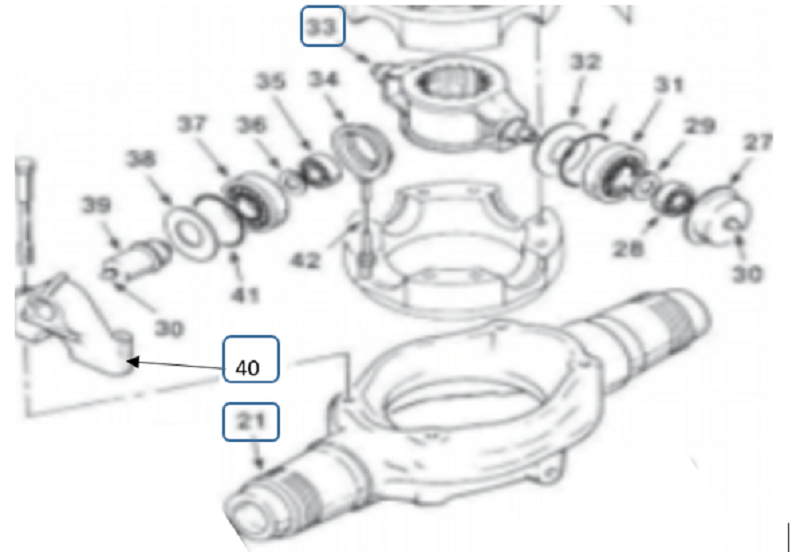

What is item # 33 on the Bell 47 MRH?
Trunnion
Yoke
Pillow Block
Gimbal Ring
In helicopter theory of flight, as lift is produced it is always perpendicular to which of the following?
Drag
Weight
Relative wind
Thrust
What is the purpose of the latch assemblies on the Bell 206 MRH?
It is the lead/lag hinge
Allows blade sweeping for balance
Holds the blade in the head
Secures the grip to the yoke assembly
As the blade of a fully articulated main rotor head flaps up, what does this blade want to do?
Nothing
Slow down
Speed up
Change pitch angle
During the forward movement of a helicopter, which of the following conditions exist?
Lift and thrust are both vertical and they are greater than weight and drag
Lift and thrust are both vertical and they are equal to weight and drag
Lift is straight up, thrust is forward and weight and drag are downward
Lift is straight up, thrust is forward, weight is downward and drag is aft
What is item # 14 on the Bell 47 MRH?
Drag Brace
Grip
Gimbal Ring
Counterweight Assembly
What is centrifugal force trying to do to the main rotor blades?
Pull the blades out of the head
Force the blades into the center of the head
Make the blades bend upwards
Make the blades flex downwards
How does the fully articulated main rotor head deal with the Coriolis Effect?
Blade flexing
Lead/Lag or hunting hinge
Underslung head design
Teetering hinge

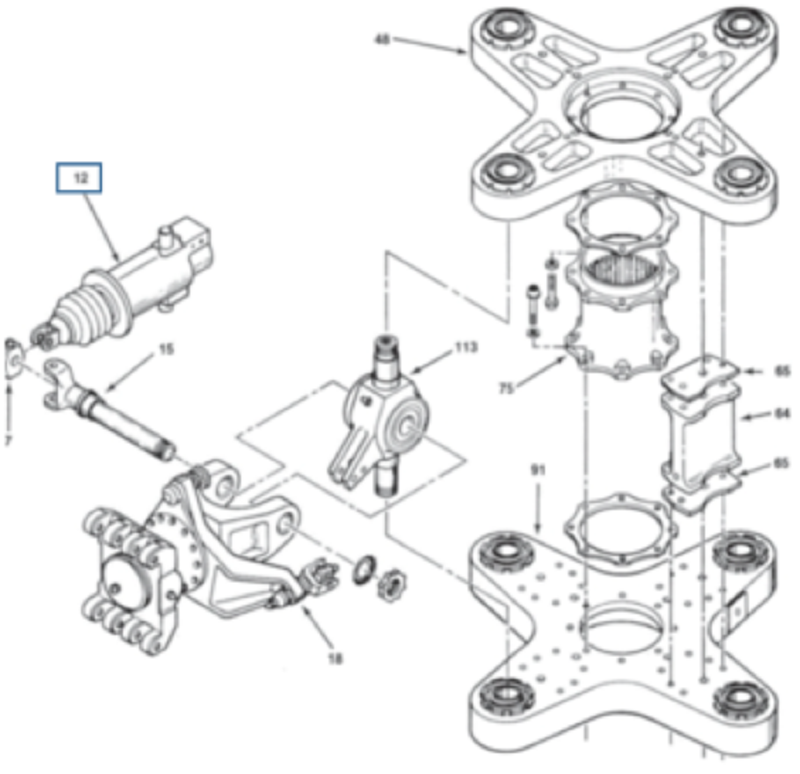

What is item # 12 as identified by the box around the number in the picture?
Lead/lag hinge assembly
Damper assembly
Sleeve-spindle assembly
Flapping hinge pin
What force cause the rotor blades to straighten out as they begin to rotate?
Circumferential force
Centripetal force
Centrifugal force
Coriolis force

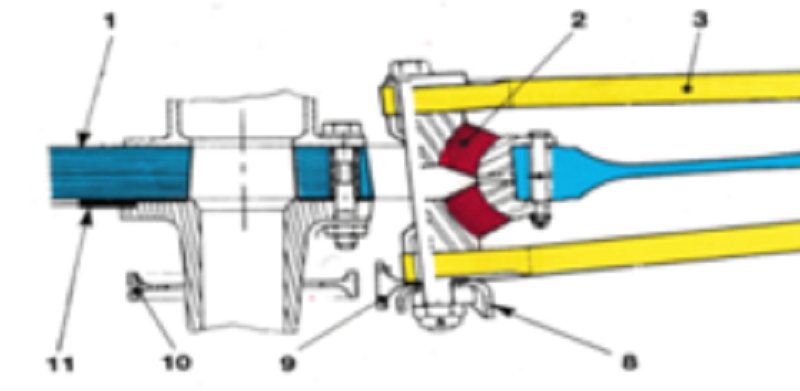

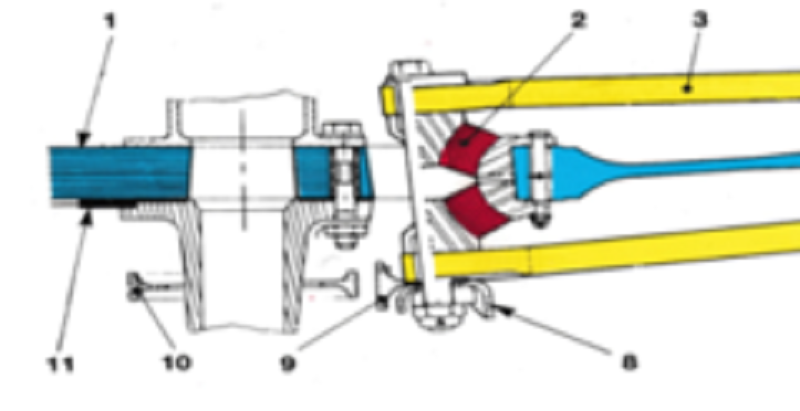

What is item number 3?
Spherical thrust bearing
Droop restraint
Sleeve flange assembly
Star assembly
What is the definition of the term Chord?
The distance rom the blade root to the blade tip along the centerline of the blade
The distance from the leading edge to the trailing edge
The angle between the chord line and the reference plane determined by the rotor hub
The acute angle between the relative wind and the chord line of the blade
Which of the following will produce induced drag?
Generation of lift
Weight
Air flow over the fuselage
The extended landing gear
What is the purpose of the pendulum weights installed on the rigid rotor head system blades?
To eliminate the harmonic vibrations created by the blades
To eliminate the out of track vibrations
To maintain inertial of the blades for autorotation
To act as flap restraint devices at the blade roots
What causes dissymmetry of lift in a helicopter rotor system during forward flight?
Decrease in airspeed over the advancing blade
Increase in airspeed over the retreating blade
Both blades are turning at the same speed therefore; lift is always symmetrical in any flight condition
Increase in airspeed over the advancing blade
What is item number 9?
Star assembly
Spherical thrust bearing
Sleeve flange assembly
Droop restraint
What is item # 40 on the Bell 47 MRH?
Pillow Block
Yoke
Trunnion
Gimbal Ring
What type of rotor head is the Eurocopter AS350/355 MRH?
Semi-rigid main rotor head
Semi-articulated main rotor head
Fully articulated main rotor head
Rigid main rotor head
For the fully articulated main rotor head, for which force is the lead lag hinge designed to compensate?
Dissymmetry of lift
Colander effect
Coriolis effect
Coronation effect
What is item # 21 on the Bell 47 MRH?
Gimbal Ring
Pillow Block
Trunnion
Yoke
How is dissymmetry of lift dealt with on the rigid main rotor head?
Flapping hinge
Teetering hinge
Underslung head design
Blade flexing
What type of main rotor head is installed on the Bell 206 Helicopter?
Rigid main rotor head
Semi-rigid main rotor head
Semi-articulated main rotor head
Fully articulated main rotor head
How are centrifugal loads from the blades supported in the Hughes 500 MRH?
An elastomeric bearing assembly at each end of the pitch housing assembly
A gland nut secures the spindle to the gimbal assembly
Stainless steel and Teflon impregnated cloth layers in a strap pack
Tension torsion straps installed between the pitch housing and hub assembly
What is the purpose of the rotor brake system?
To hold the rotor from tuning during start-up
Prevent the rotor from turning during high winds while helicopter parked
Stop the helicopter from moving forward while on the ground
To stop the rotation of the rotor with engine running to disembark passengers
How does the rigid main rotor head deal with the Coriolis Effect?
Teetering hinge
Blade flexing
Underslung head design
Lead/Lag or hunting hinge
How is the lead/lag action accomplished on the Sikorsky S-76 MRH?
Lead/lag link assembly
Flexing of the upper and lower sleeves at the spherical thrust bearing and the frequency adapter
Vertical mounted hinge pins or bolts
Flexing of the spindle assembly inside the elastomeric retention and thrust bearings
In helicopter theory of flight, as drag is produced it is always parallel to which of the following?
Lift
Relative wind
Chord line
Weight
What type of main rotor head is installed on the Bell 47 Helicopter?
Rigid main rotor head
Semi-rigid main rotor head
Semi-articulated main rotor head
Fully articulated main rotor head
What is item number 2?
Spherical thrust bearing
Droop restraint
Sleeve flange assembly
Star assembly
What is the meaning of the term "Wet Head" on the Bell 206 MRH?
The MRH is lubricated by hydraulic fluid using the airframe hydraulic system
The MRH is lubricated by oil using the main rotor gearbox oil system
The MRH is lubricated by oil using self-contain oil reservoirs
The MRH is lubricated by grease using various grease fittings
In which of the following flight conditions is lift symmetrical over the entire rotor disc?
Vertical Climb
Forward flight
No-wind hover
No-wind forward flight

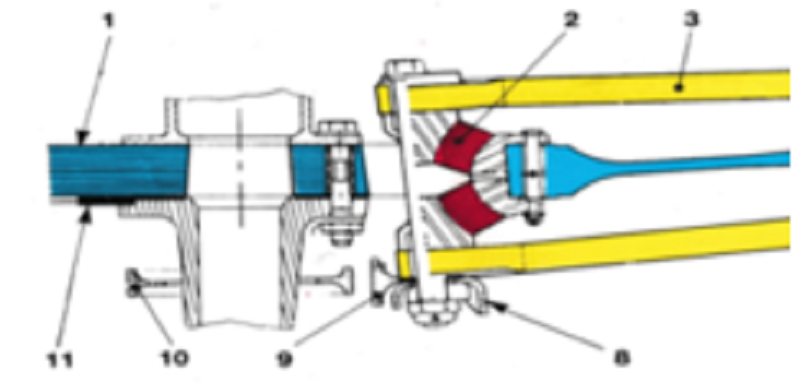

What is item number 1?
Star assembly
Sleeve flange assembly
Droop restraint
Spherical thrust bearing
What impact does increased weight of the helicopter have on the blade coning angle?
Increase in coning angle
Decrease in coning angle
Negative coning angle
Nothing
What is the definition of the term Span?
The distance rom the blade root to the blade tip along the centerline of the blade
The distance from the leading edge to the trailing edge
The angle between the chord line and the reference plane determined by the rotor hub
The acute angle between the relative wind and the chord line of the blade
What is the definition of the term Angle of Attack?
The distance rom the blade root to the blade tip along the centerline of the blade
The distance from the leading edge to the trailing edge
The angle between the chord line and the reference plane determined by the rotor hub
The acute angle between the relative wind and the chord line of the blade
What is item # 2 on the Bell 47 MRH?
Drag Brace
Grip
Gimbal Ring
Counterweight Assembly
How is the lead/lag action accomplished on the AS350/355 MRH?
Vertical mounted hinge pins or bolts
Lead/lag link assembly
Flexing of the upper and lower sleeves at the spherical thrust bearing and the frequency adapter
Flexing of the spindle assembly inside the elastomeric retention and thrust bearings
What is the resultant of the combination of increasing the blade pitch and lift and the centrifugal force acting on the main rotor blades?
Blade flapping
Blade hunting
Blade feathering
Blade coning
What type of rotor head is the Sikorsky S-76 MRH?
Rigid main rotor head
Semi-rigid main rotor head
Semi-articulated main rotor head
Fully articulated main rotor head
Which of the following items is not included on the five bladed Hughes 500nMRH assemblies?
Pitch housing
Lead/lag link
Damper assembly
Two-part pendulum assembly
How is pitch change accomplished on Semi-rigid main rotor head?
Blade flexing
Blade grips and pitch horn
Flapping hinge and pitch horn
Teetering hinge and pitch horn

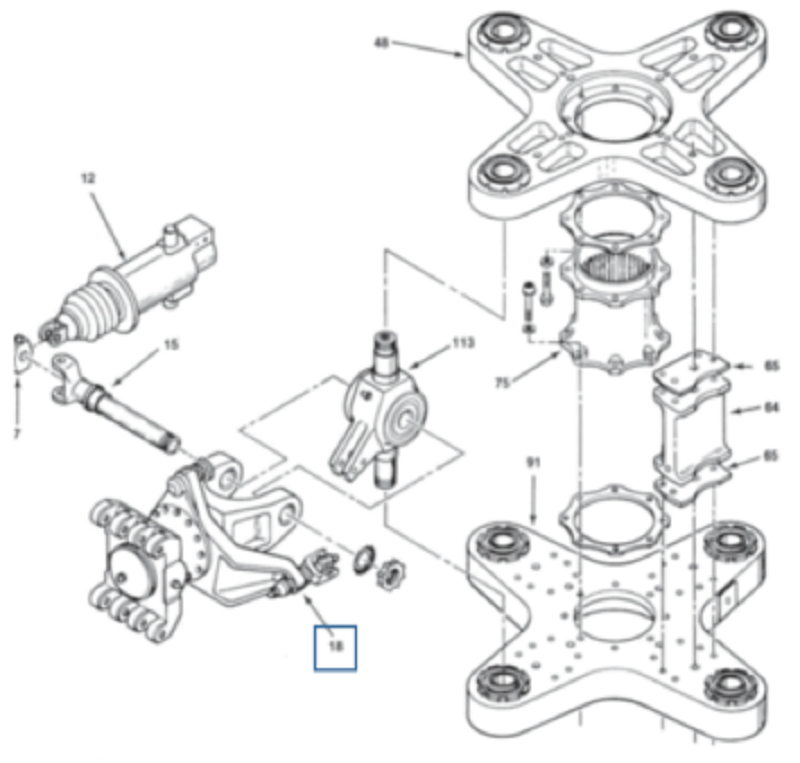

What is item # 18 as identified by the box around the number in the picture?
Hub assembly
Sleeve-spindle assembly
Flapping hinge pin
Lead/lag hinge assembly
How is pitch change accomplished on the rigid main rotor head?
Flapping hinge and pitch horn
Teetering hinge and pitch horn
Blade grips and pitch horn
Blade flexing
What is the fundamental principle of the stabilizer bar installed on the Bell 47?
Gyroscopic rigidity in space
Gyroscopic procession
Gyroscopic precession
Gyroscopic angular momentum
How is dissymmetry of lift dealt with on the fully articulated main rotor head?
Flapping hinge
Teetering hinge
Underslung head design
Blade flexing
How is pitch change accomplished on the fully articulated main rotor head?
Flapping hinge and pitch horn
Teetering hinge and pitch horn
Blade grips and pitch horn
Blade flexing
How is Pitch change achieved on the AS350/355 MRH?
Metal Spindle and pitch horn assembly rotating inside multiple elastomeric bearings mounted to a fixed hub
Metal Spindle and pitch horn assembly rotating inside multiple elastomeric bearings mounted to a flexible strap pack assembly
Metal Spindle and pitch horn assembly rotating inside multiple ball type thrust bearings mounted to a teetering hub
Two composite sleeve assemblies with two elastomeric bearings, and a metallic pitch horn mounted to a flexible star assembly/hub
What will occur if one blade is not flying through the same tip path plane as the other blades?
The helicopter will yaw to the right
The helicopter will pitch to the left
Nothing this is a normal situation
The helicopter will vibrate
How is dissymmetry of lift dealt with on Semi-rigid main rotor head?
Flapping hinge
Teetering hinge
Underslung head design
Blade flexing
How is the flapping action accomplished on the Sikorsky S-76 MRH?
Horizontally mounted hinge pins or bolts
Flexing of a strap pack assembly
Flexing of the star arm assembly
Flexing of the spindle assembly inside the elastomeric retention and thrust bearings
Why can a rotor brake system only be used below a certain rpm?
Pads will overheat at higher speeds due to transforming kinetic energy into heat
Pads will not generate enough friction to slow down above this speed
Brake system will not work due to the engine torque
Can cause the engine to overheat
What is item # 75 as identified by the box around the number in the picture?
Flapping hinge pin
Lead/lag hinge assembly
Hub assembly
Sleeve-spindle assembly
Why are the blade bolts hollow?
Reduce the weight
To allow a place to add weight for balancing
Increase structural strength
All of the above
What is the purpose of the Counterweight assemblies on the Bell 47 MRH?
Static balance
Dynamic balance
Assist with pitch change
Reduce teetering
What is item # 26 on the Bell 47 MRH?
Gimbal Ring
Counterweight Assembly
Grip
Drag Brace
What is the purpose of the latch bolt assembly on the Bell 206 MRH?
It secures the grip to the tension torsion strap assembly
It allows for blade flapping
It is the lead/lag hinge
Holds the blade in the head
What is the purpose of the drag brace on the Bell 47 MRH?
To allow blade sweeping for balance
Holds the blade in the head
It is the lead/lag hinge
Used as a collapsible strut for blade retraction
What limits the amount of downward flexing of the blades when they are static or turning slowly?
Droop restraints
Flapping restraints
Primary stops
Hunting restraints
How is Pitch change achieved on the Sikorsky S-76 MRH?
Metal Spindle and pitch horn assembly rotating inside multiple ball type thrust bearings mounted to a teetering hub
Metal Spindle and pitch horn assembly rotating inside multiple elastomeric bearings mounted to a fixed hub
Two composite sleeve assemblies with two elastomeric bearings, and a metallic pitch horn mounted to a flexible star assembly/hub
Metal Spindle and pitch horn assembly rotating inside multiple elastomeric bearings mounted to a flexible strap pack assembly
What is the purpose of the trunnion assembly on the Bell 47 Main Rotor Head?
Acts as the teetering hinge point
Acts as the lead/lag hinge point
Acts as the feathering hinge point
Both a & b are correct
What type of rotor head is the Hughes 500 MRH?
Rigid main rotor head
Semi-rigid main rotor head
Semi-articulated main rotor head
Fully articulated main rotor head

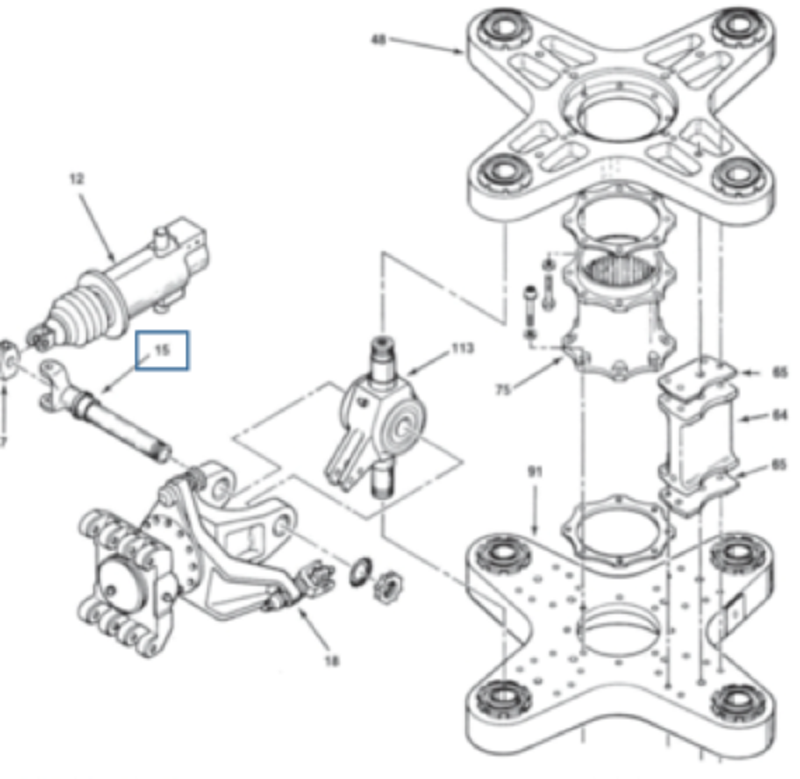

What is item # 15 as identified by the box around the number in the picture?
Lead/lag hinge assembly
Sleeve-spindle assembly
Hub assembly
Flapping hinge pin
What is the maximum amount of twist allowed for the tension torsion strap Bell 206 on the Main Rotor Head?
10 degrees
45 degrees
90 degrees
180 degrees
What is item number 4?
Frequency adapter
Self-lubricating oscillating bearing
Balance washers
Blade bolt
What is item # 113 as identified by the box around the number in the picture?
Sleeve-spindle assembly
Hub assembly
Flapping hinge pin
Lead/lag hinge assembly
Following the completion of an autorotation test flight you discover the Nr is 488 RPM and the range is 480 rpm to 485 rpm. What is the required rectification?
Slow rotor speed by increasing blade pitch
Slow rotor speed by decreasing blade pitch
Increase rotor speed by increasing blade pitch
Increase rotor speed by decreasing blade pitch
Following the completion of an autorotation test flight you discover the Nr is 488 RPM and the range is 490 rpm to 505 rpm. What is the required rectification?
Slow rotor speed by increasing blade pitch
Slow rotor speed by decreasing blade pitch
Increase rotor speed by increasing blade pitch
Increase rotor speed by decreasing blade pitch
According to the instructions for Autorotation Test Flights, which of the following is NOT one of the three pieces of information are required to be recorded during the Autorotation Decent?
Outside Air Temperature at the start of the procedure
Altimeter Reading at the start of the procedure
N1 Tachometer Reading during the procedure
Nr Tachometer Reading during the procedure
During the Autorotation Speed Calculation, which of the following is NOT one of the three parameters that you require to determine if the rotor RPM is correct based upon the Autorotation Chart?
Direction and speed of the wind at take-off
Helicopter Weight during the procedure
Density Altitude during the procedure
Nr Tachometer Reading during the procedure
During an autorotation decent with the collective full down, what direction is the airflow through the main rotor system?
Down through the blades from the top to the bottom
Up through the blades from the bottom to the top
There is no air flow through the rotor system during the autorotation decent
There is only air flow through the rotor system when the collective is pulled up at the bottom of the decent
What does the term "Deadman's Curve" relate to when discussing Autorotation?
A direction of turn prohibited during autorotation
An altitude or forward speed above which a successful autorotation is impossible
An altitude or forward speed below which a successful autorotation is not possible
A flight maneuver that will cause the rotor system to stop turning during an autorotation
What is the purpose of an autorotation?
To allow the pilot to land helicopter safely under full engine power
To ensure that the helicopter rotor system automatically tilts forward as the cyclic is pushed forward
To ensure that the various components are rotated through the correct duty cycle during maintenance activities
To allow the pilot to land the helicopter safely with no engine power
{"name":"Rotary Week 5", "url":"https://www.quiz-maker.com/QPREVIEW","txt":"What is the definition of the term Pitch Angle?, How is the flapping action accomplished on the Hughes 500 MRH?, What type of rotor head is the Sikorsky S-58 MRH?","img":"https://www.quiz-maker.com/3012/CDN/94-4564379/blade-bolt.png?sz=1200"}
More Quizzes
Movie Trivia
9420
Which Jenna marbles dog are you
320
Assessment Test Of Subharambh and Fast Forward
116110
Nitesh's birthday Quiz
10524
Founding Father's Personality Quiz
8426
What au sans are you?
420
Math in a Basket 4th Grade Pre-Assessment (Craig Williams)
28140
Legislative Branch
1050
How well do yk william deontae cruz
13614
Who are you in Avantgarde Cosplay?
10541
Stari Rim
105728
Which House?
5225
