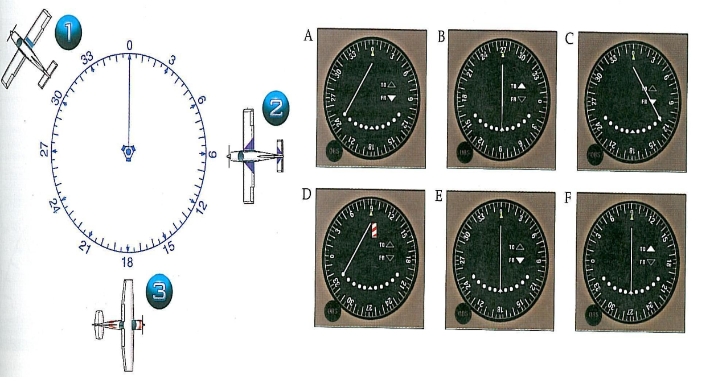

A detailed diagram of VOR and ADF navigation systems in an aircraft cockpit, showcasing instruments and their fun<wbr>ctions, mixed with a background of a clear blue sky.

VOR and ADF Navigation Quiz

Test your knowledge on VOR and ADF navigation systems with our comprehensive quiz designed for aviation enthusiasts and professionals alike. This quiz contains 24 multiple-choice questions that cover key concepts, terminology, and operational procedures related to VOR and ADF.

Prepare yourself for the world of aviation navigation and enhance your understanding! Here’s what you can expect:

24 challenging questions
Focus on VOR and ADF systems
Instant feedback on your answers

24 Questions6 MinutesCreated by FlyingBeacon37

The meaning of VOR is:

Very high range

Very high frequency omni directional range

Omni directional

The frequency allotted for the VOR:

118.00 MHz –135 MHz

108 MHz –111 MHz

108 MHz –117.95 MHz

VOR station transmit radio beams called:

Bearings

Magnetic bearings

Radials

What are the three (3) kinds of VOR stations?

Short, medium and long

Terminal, low and high altitude

Enroute VOR, approach VOR and station VOR

You should always identified the VOR before using by checking:

Morse code Identifier

Errors

Accuracy

What is an advantage of the VHF frequency used for VOR navigation?

You can received AM radio broadcast over your VOR on this frequencies

VHF frequencies are not limited by mountains or curvature of the earth

VHF radio waves are less susceptible to the interferencethan low frequency radio waves

What navigation capability does a VOR/DME provide?

Position and distance

Position only

Distance only

Why is it important to set your VOR indicator to generally agree with your intended course?

To avoid being drifted

To avoid reverse sensing

To proceed the VOR station

If the CDI is deflected 3 dots to the right of your VOR indicator and heading indicatorare in general agreement, where is your desired course:

6° left

3° right

6° right

Maximum error of VOR on ground:

2°

4°

6°

Maximum error of VOR in flight or IFR navigation:

2°

4°

6°

A procedure to find your position in the air by using 2 VOR:

Cross fixing

Intersection

Cross checking

What is the ADF frequency range?

190 –535 kHz

535 –1605 kHz

190 –106 kHz

What is the meaning of ADF?

Automatic Direction Finder

Automatic Direction Frequency

Automatic Direction Fix

NDB means?

Non-directional beacon

Non-directional Beam

Non-direction Broadcast

ADF requires two antennas:

Directional antennaand sense antenna

Beacon antenna and sense antenna

Beacon antenna and directional antenna

A kind of ADF where the nose of the aircraft is always 0°:

Movable Card

Fixed Card

Radio magnetic Card

A heading that will bring the aircraft to the NDB stations:

Relative Bearing

Magnetic Heading

Magnetic Bearing

The angular difference between the nose and the NDB station measure clockwise.

Relative Bearing

Magnetic Heading

Magnetic Bearing

A heading based on the Magnetic Compass.

Relative Bearing

Magnetic Heading

Magnetic Bearing

Magnetic heading plus relative bearing equals.

Relative Bearing

Magnetic Heading

Magnetic Bearing

A technique in flying the NDB by keeping the needle of the ADF on the aircraft nose:

Tracking

Homing

Bracketing

ADF equipment is capable of receiving signals from what type of facility?

Any FM radio stations

NDB and AM commercial broadcast station

Specially equipped VOR stations

It is the horizontal direction from 1 point to another; it can be measured clockwise in degrees from any reference point.:

Bearing

Heading

Relative Bearing
