Hydraulics - Week 5 pictures
Hydraulics Knowledge Challenge
Test your understanding of key components in hydraulic systems with our engaging quiz! Identify various parts used in hydraulic applications and enhance your knowledge in this vital field.
- Multiple choice questions
- Focused on hydraulics components
- Perfect for students and professionals alike
What this be?

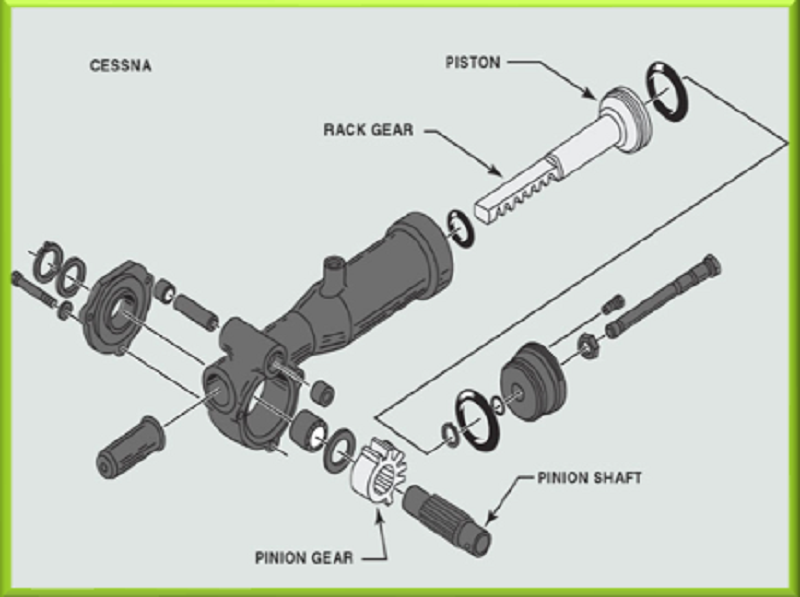

Rack & Pinion actuator
What this be?

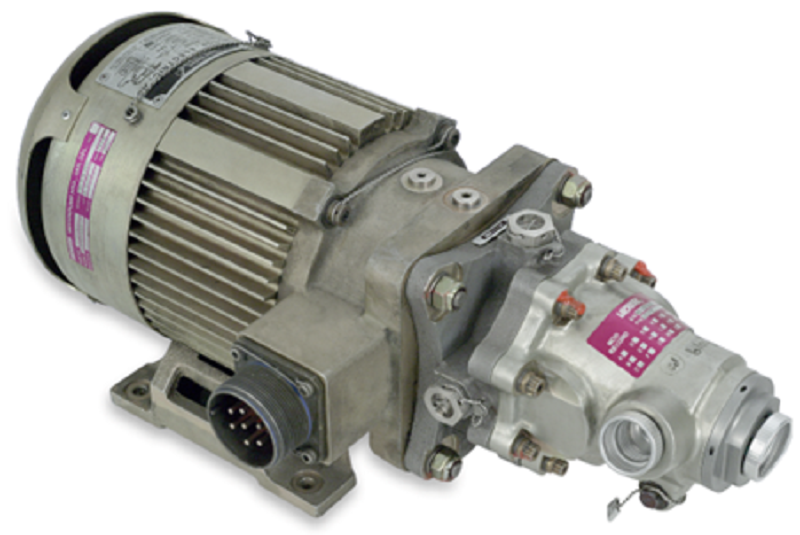

Electric motor pump
What this be? It's showing the shaft

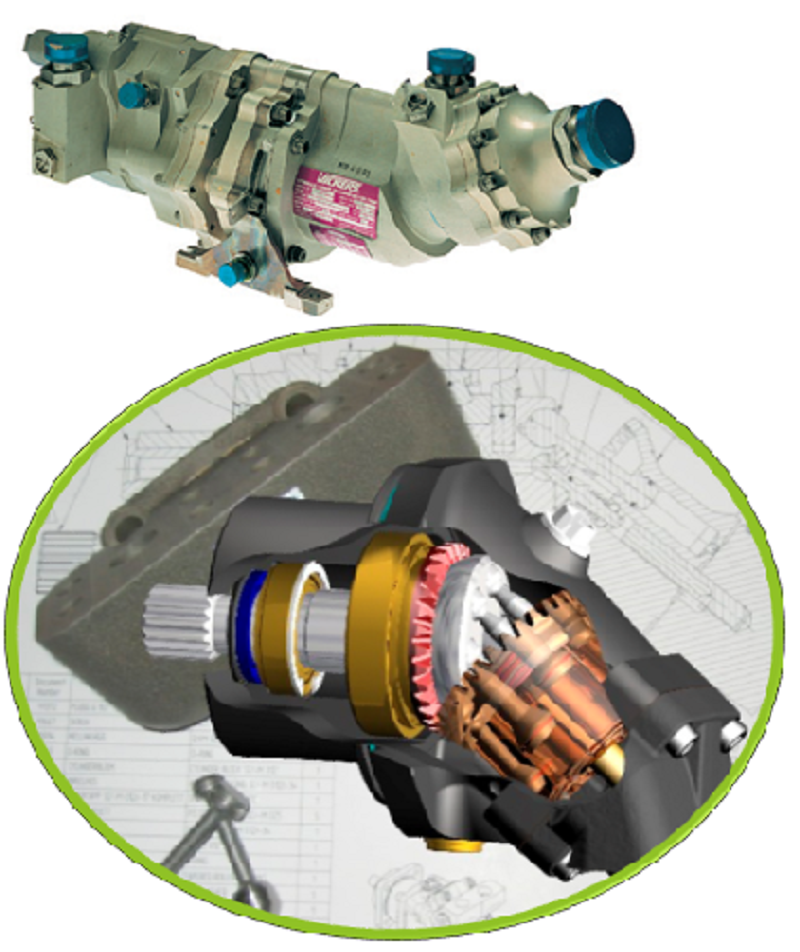

Hydraulic motor

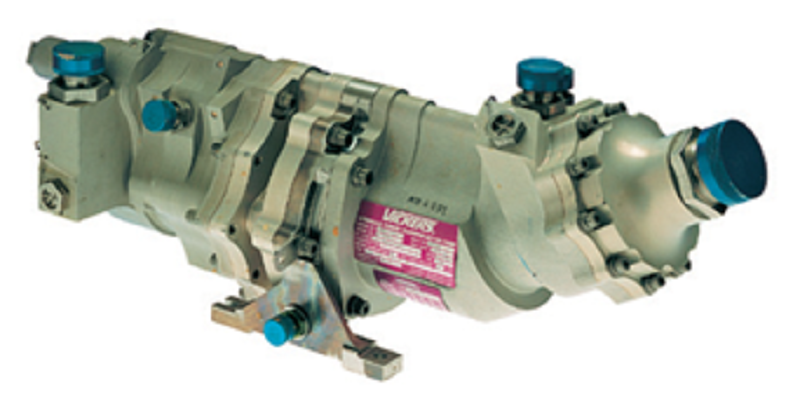

What this be?
PTU
What this be?

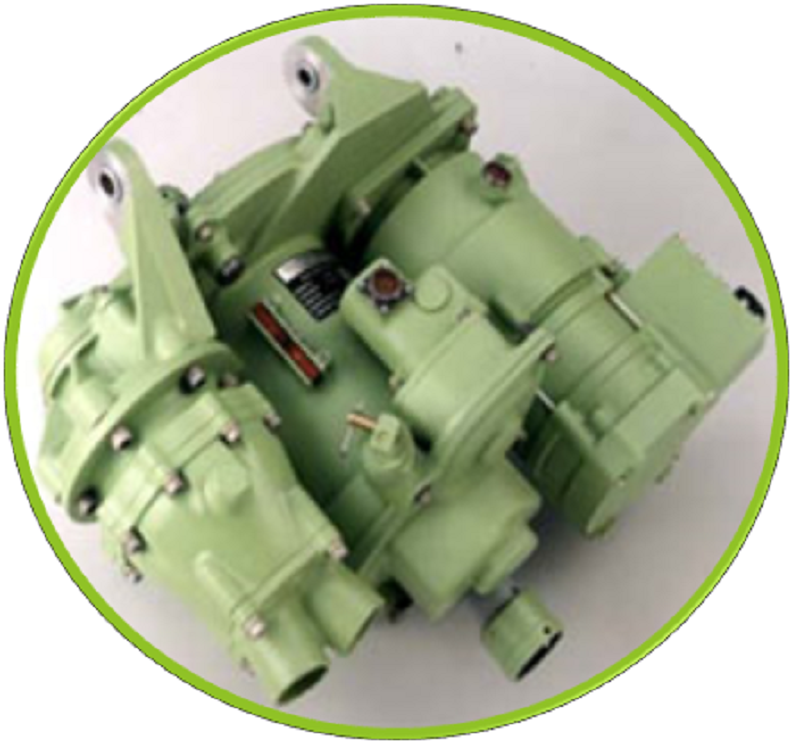

PDU
PCU
All of the above, because PDU = PCU
What this be?

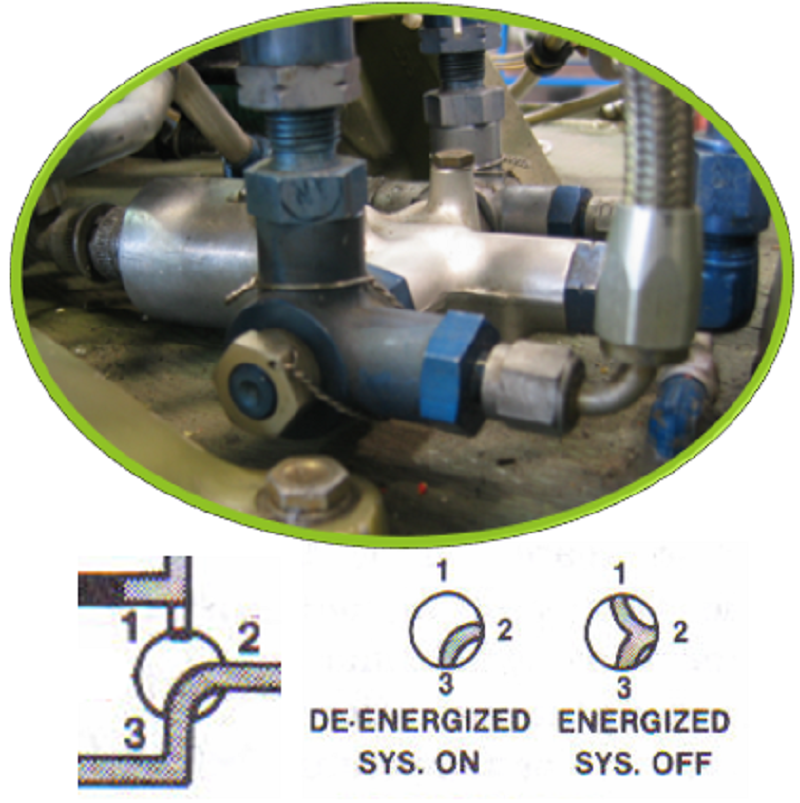

Solenoid Valve

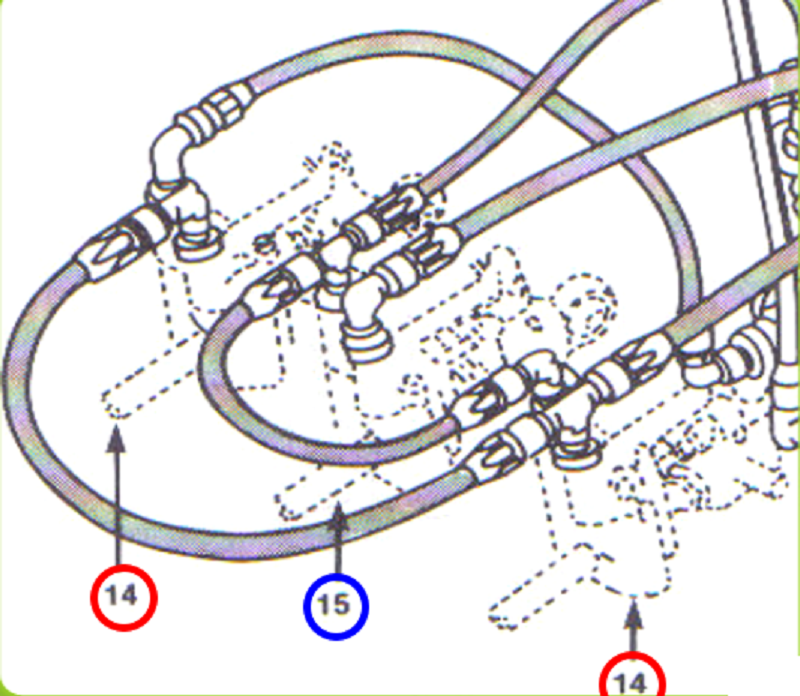

What this be?
Servo actuators
What this be?
Aft view of Bell 206 components
What this be?

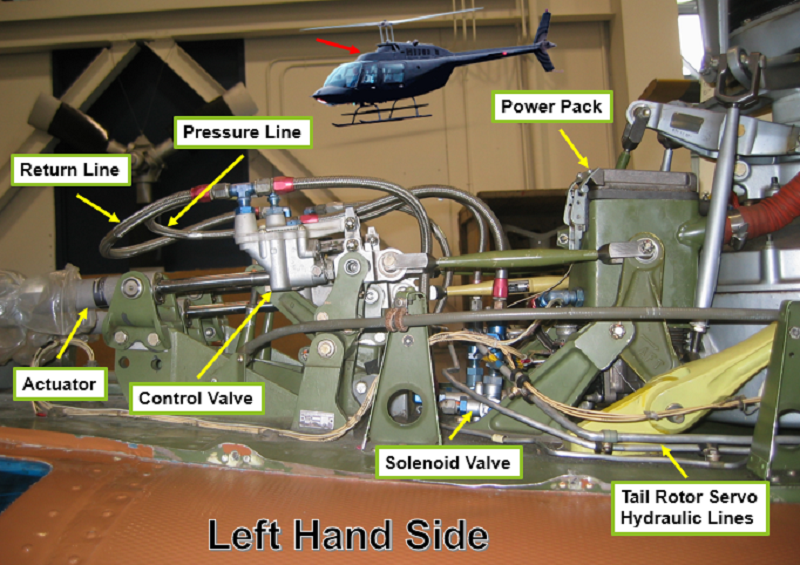

Left hand side view of Bell 206 components

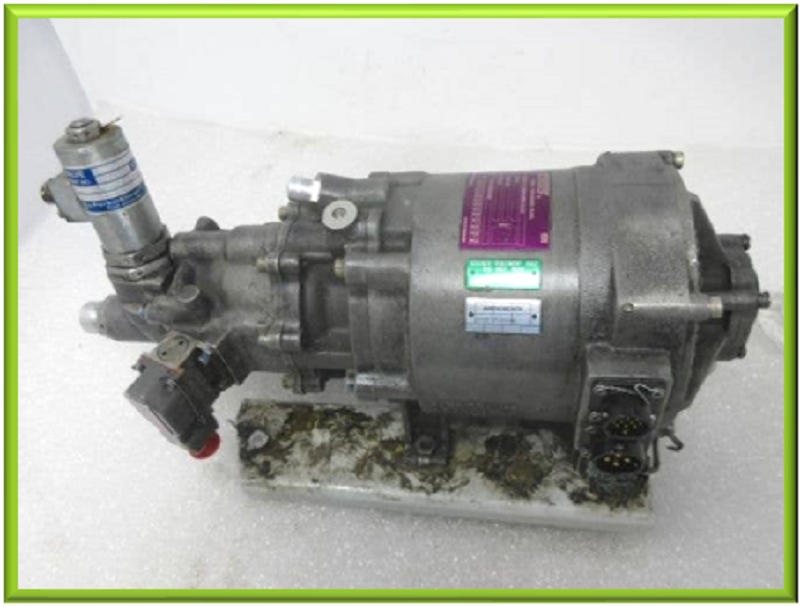

What's this one?
CSMG

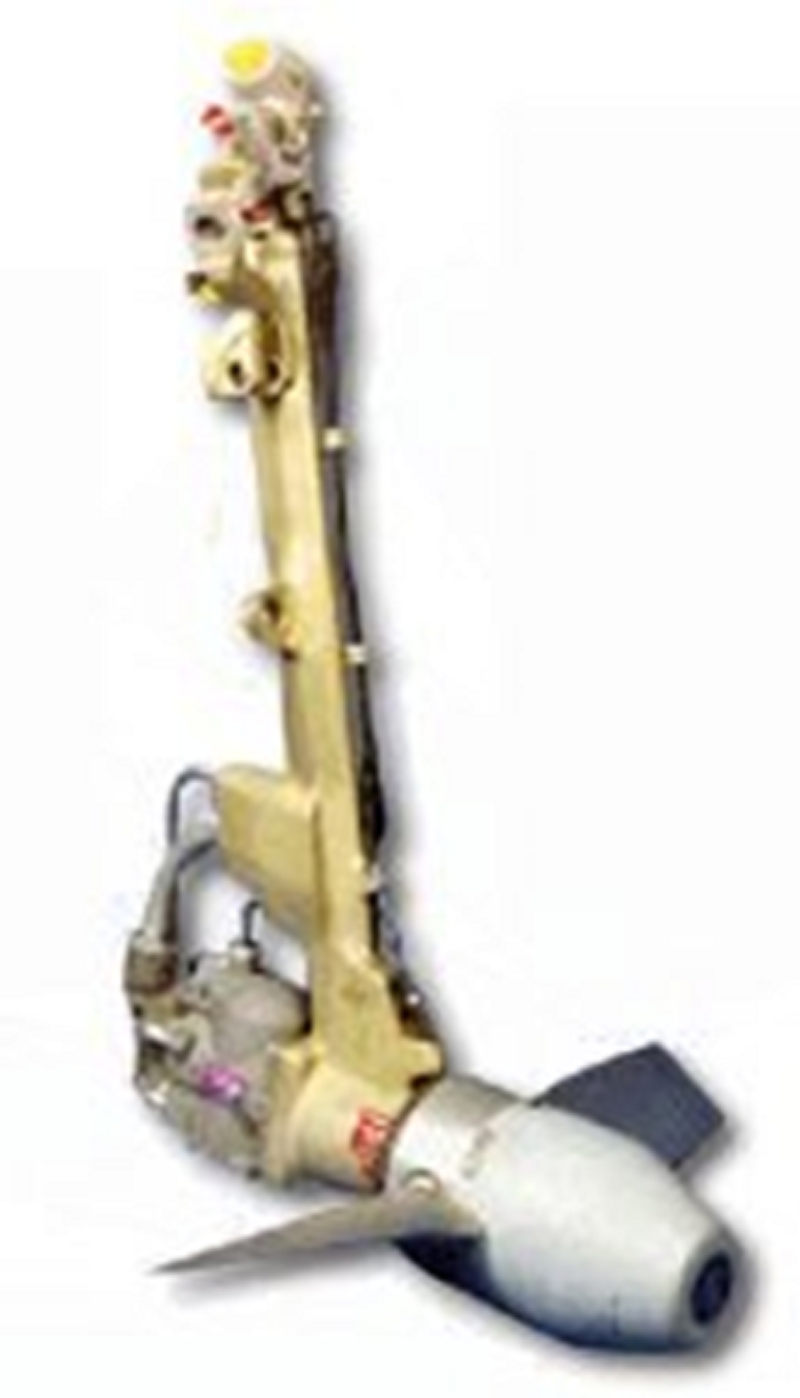

What's this one?
RAT
What's this one?

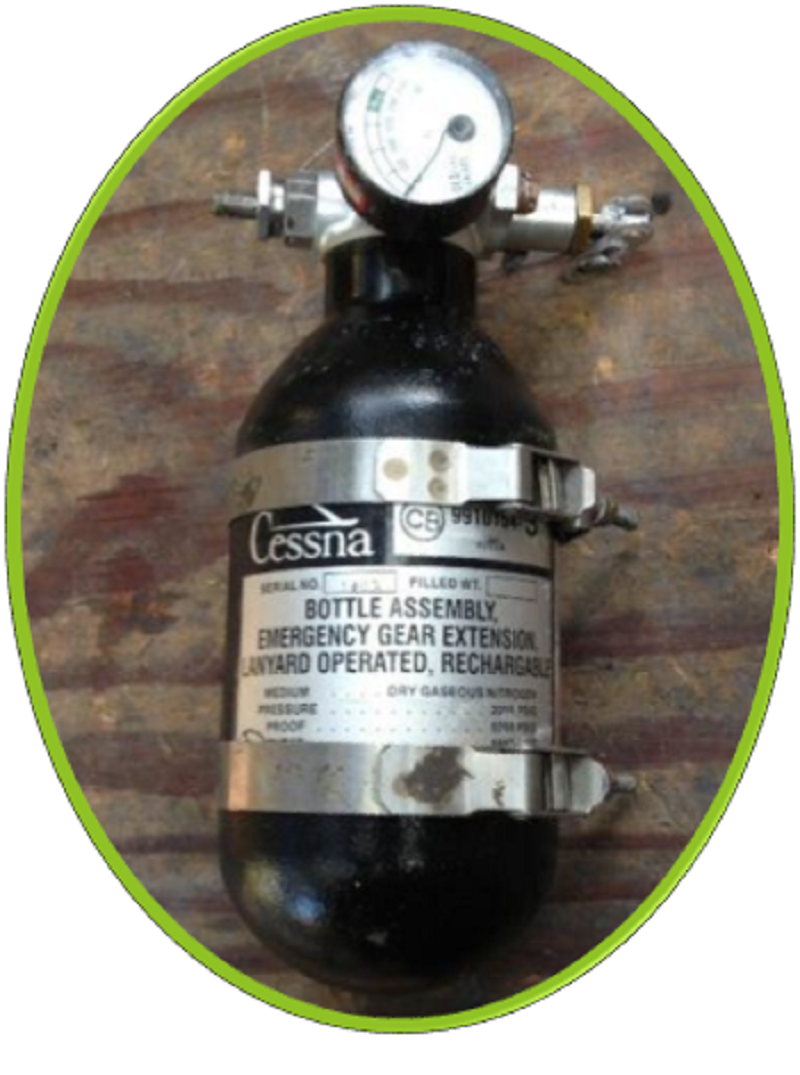

Air Bottle

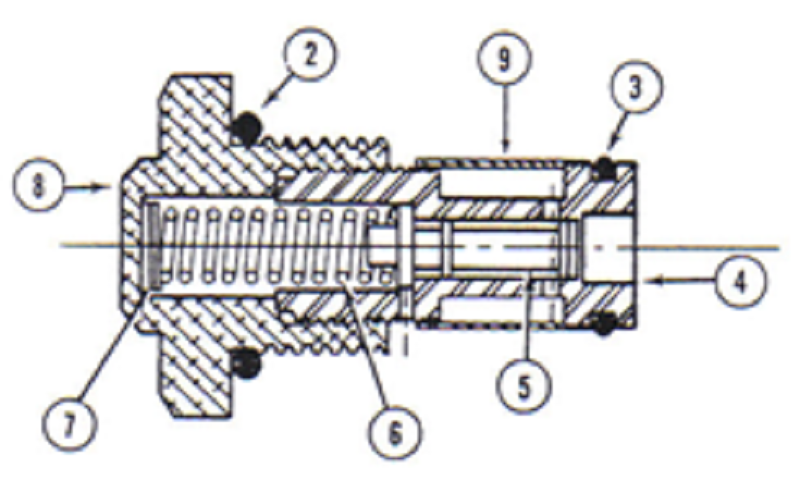

What's this one?
Pressure relief valve

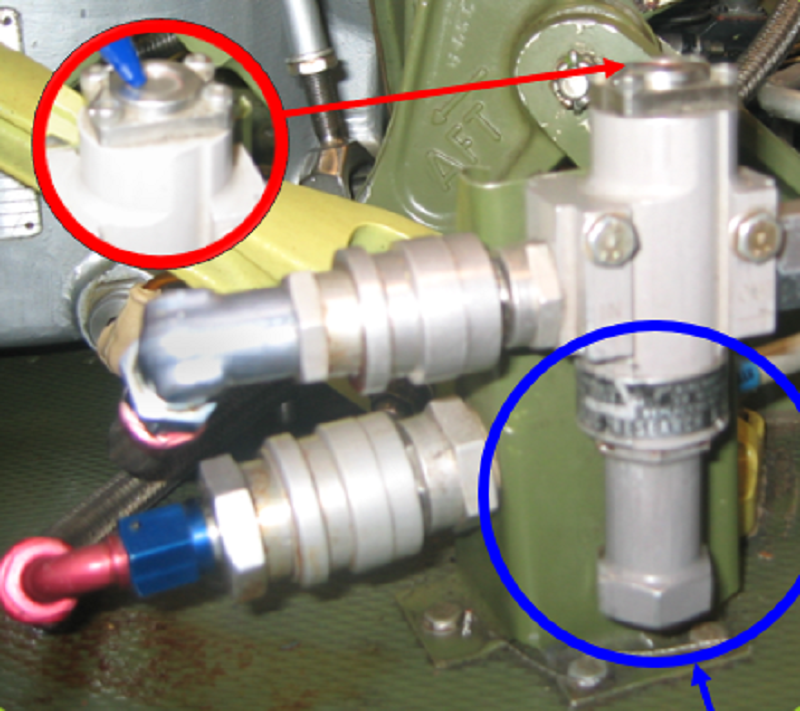

Whats this one?
Pressure filter

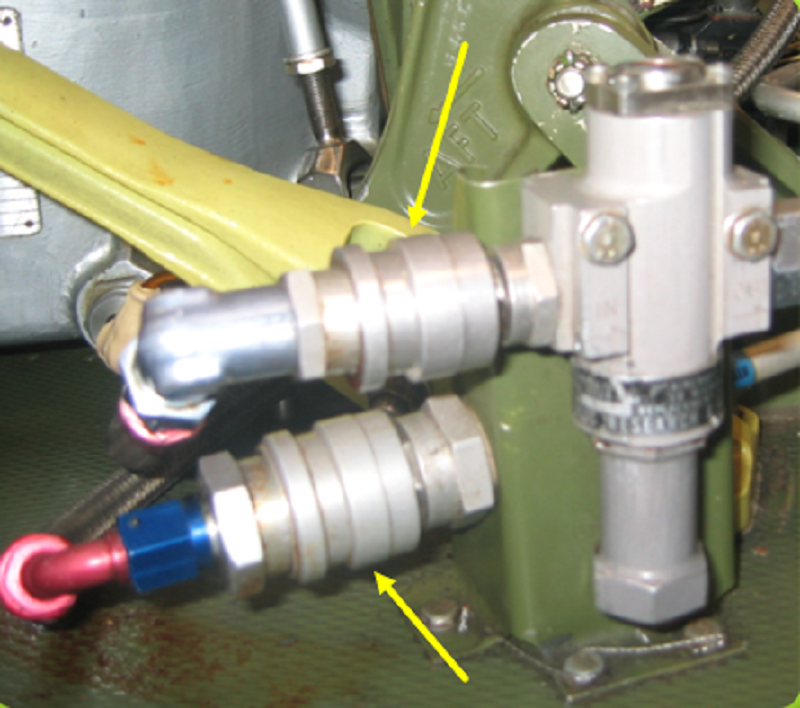

What's this one?
Quick disconnect valve
