Stair Design Knowledge Quiz

Test your knowledge on stair design concepts, construction standards, and architectural details with our engaging quiz!

In this quiz, you will:

Rank various elements of stair design.
Select the appropriate checkboxes for stair visibility in plans.
Answer specific measurement-related questions.

16 Questions4 MinutesCreated by BuildingCraftsman42

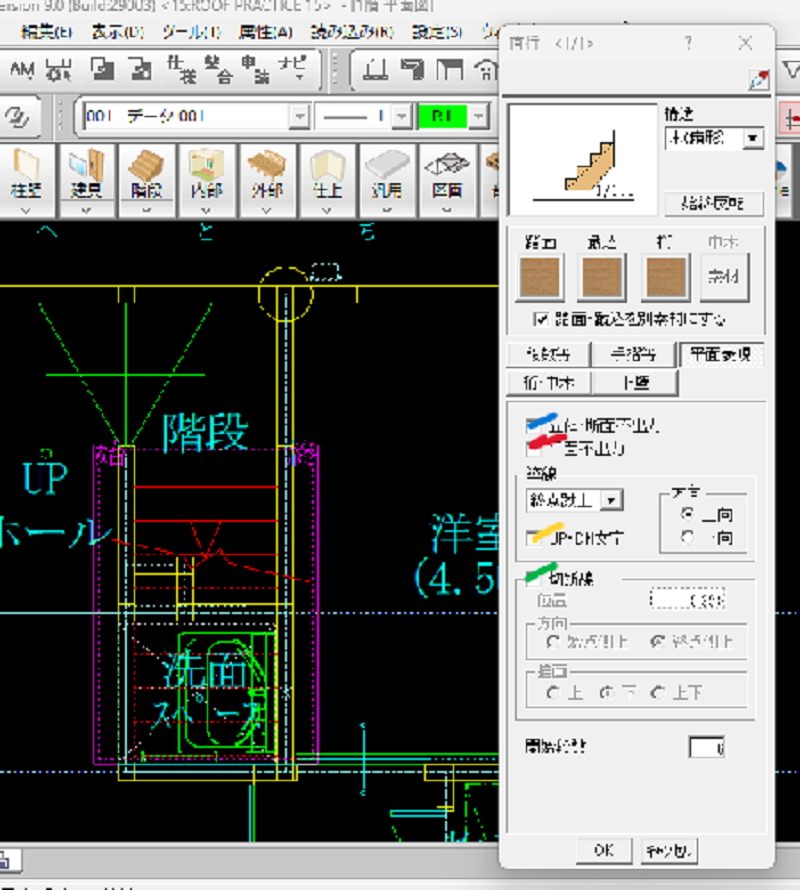

I want my stair section to have up or down label in normal and detailed plan, what unchecked checkbox should I put a check?

Blue

Yellow

Red

Green

I want my stairs to be hidden in normal and detailed plan, what unchecked checkbox should I put a check?

Blue

Red

Yellow

Green

I want my stairs to be hidden in perspective view, what unchecked checkbox should I put a check?

Blue

Red

Yellow

Green

I want my stairs to have a cutline, what unchecked checkbox should I put a check?

Blue

Red

Yellow

Green

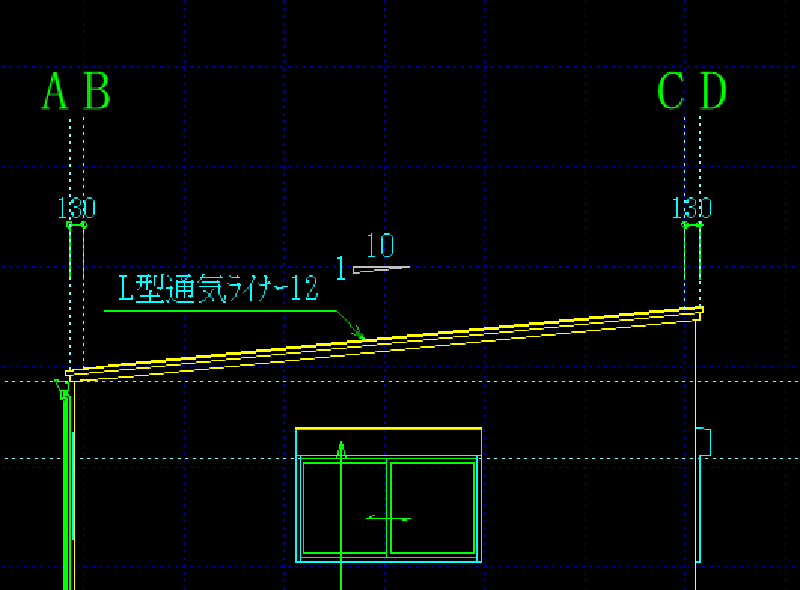

To find maximum height of roof (from beam), get the distance from line ___ to line ___ then multiply to the slope of roof. *Building ventilation height is not included.

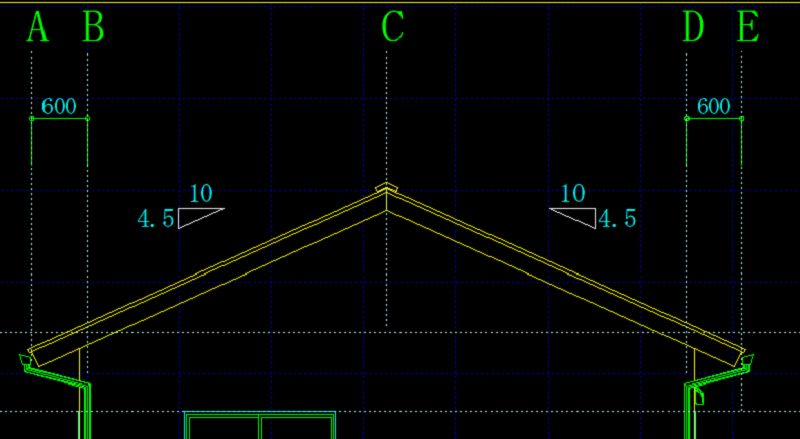

Find the maximum height of roof (from beam) if line A to line C is equal to 3,850mm. *Building ventilation height is not included.

Find the maximum height of roof (from beam) if line B to line C is equal to 3,250mm and line A to line B is changed to 750mm. *Building ventilation height is not included.

Line A to line D is 5,720mm, what is the maximum height of roof (from beam)? *Building ventilation height is not included.
