CCNA 519-530

A detailed illustration of networking components such as routers, switches, and servers in a modern data center, with visual representations of CCNA concepts like LAN, WAN, and IP addresses in a dynamic and colorful layout.

CCNA Networking Challenge

Test your knowledge with our CCNA 519-530 quiz designed for networking enthusiasts and professionals. Challenge yourself with 10 multiple-choice questions covering essential topics in Cisco networking standards and protocols.

Features of the quiz:

Focused questions based on the latest CCNA syllabus.
Interactive and engaging quiz format.
Immediate feedback on your answers.

10 Questions2 MinutesCreated by ConfiguringServer321

519 What is a similarly between 1000BASE-LX and 1000BASE-T standards?

A. Both use the same data-link header and trailer formats

B. Both cable types support LP connectors

C. Both cable types support Rj-45 connectors

D. Both support up to 550 meters between nodes

520 What is a capability of FTP in network management operations?

A. Encrypts data before sending between data resources

B. Devices are directly connected and use UDP to pass file information

C. Uses separate control and data connections to move files between server and client

D. Offers proprietary support at the session layer when transferring data

521 Refer to the exhibit. A network engineer is in the process of establishing IP connectivity between two sites. Routers R1 and R2 are partially configured with IP addressing. Both routers have the ability to access devices on their respective LANs. Which command set configures the IP connectivity between devices located on both LANs in each site?

Screenshot 2022-06-08 134528

A. Option A

B. Option B

C. Option C

D. Option D

523 In software-defined architecture, which place handles switching for traffic through a Cisco router?

A. Control

B. Management

C. Data

D. application

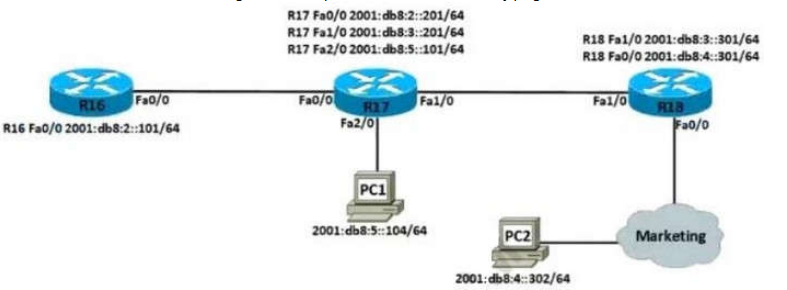

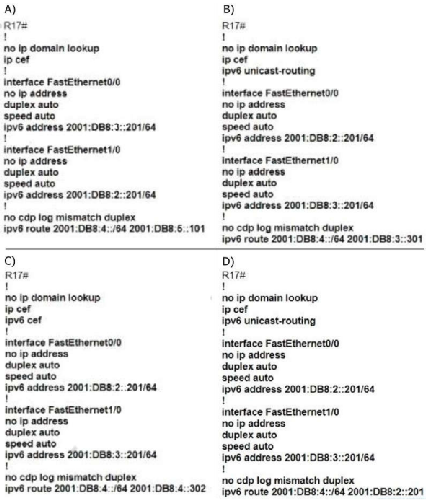

524 Refer to the exhibit. Which IPv6 configuration is required for R17 to successfully ping the WAN interface on R18?

2.1

A. Option A

B. Option B

C. Option C

D. Option D

525 Refer to the exhibit. Between which zones do wireless users expect to experience intermittent connectivity?

A. Between zones 1 and 2

B. Between zones 2 and 5

C. Between zones 3 and 4

D. Between zones 3 and 6

527 Refer to the exhibit. The entire MAC address table for SW1 is shown here: SW1#show mac-address-table Mac Address Table Vlan Mac Address Type Ports 000c.8590.bb7d DYNAMIC Fa0/1 010a.7a17.45bc DYNAMIC FaO/3 7aa7.4037.8935 DYNAMIC FaO/4 SW1# What does SW1 do when Br-4 sends a frame to Br-2?

A. It inserts the source MAC address and port into the forwarding table and forwards the frame to Br-2.

B. It maps the Layer 2 MAC address for FaO/3 to the Layer 3 IP address and forwards the frame.

C. It performs a lookup in the MAC address table for Br-4 and discards the frame due to a missing entry.

D. It floods the frame out of all ports except on the port where Br-2 is connected.

529 Refer to the exhibit. For security reasons, automatic neighbor discovery must be disabled on the R5 Gi0/1 interface.

A. R5(config)#int Gi0/1 R5(config-if)#no cdp run R5(config-if)#exit R5(config)#lldp run R5(config)#cdp enable R5#sh cdp neighbor R5#sh lldp neighbor

B. R5(config)#int Gi0/1 R5(config-if)#no cdp enable R5(config-if)#exit R5(config)#no lldp run R5(config)#cdp run R5#sh cdp neighbor R5#sh lldp neighbor

C. R5(config)#int Gi0/1 R5(config-if)#no cdp enable R5(config-if)#exit R5(config)#no lldp run R5(config)#cdp run R5#sh cdp neighbor detail R5#sh lldp neighbor

D. R5(config)#int Gi0/1 R5(config-if)#no cdp enable R5(config-if)#exit R5(config)#lldp run R5(config)#no cdp run R5#sh cdp neighbor detail R5#sh lldp neighbor

530 Which type of API allows SDN controllers to dynamically make changes to the network?

A. northbound API

B. REST API

C. SOAP API

D. southbound API
