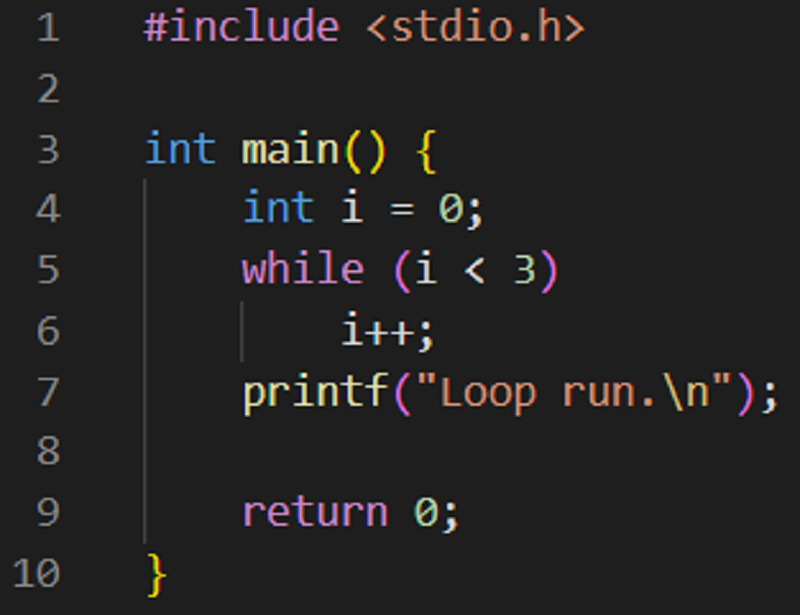

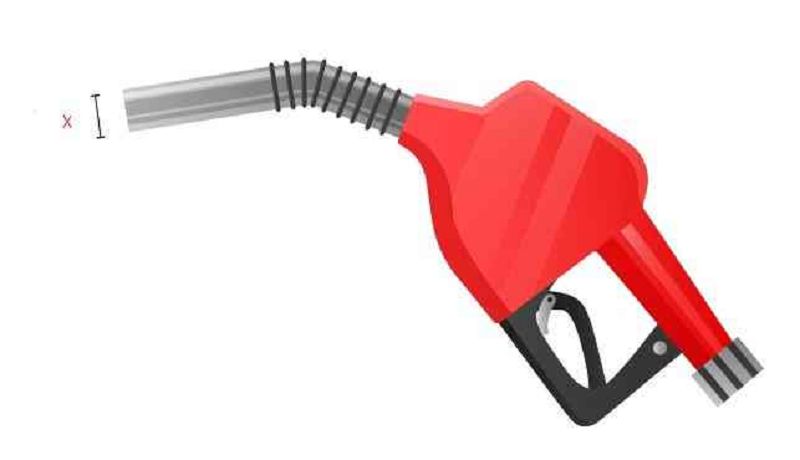

2. The skidpad queue is closing in 3 min. If you are at the gas station and you need to fuel your car from zero to full an you have a fuel tank of 6.5L. Which should be the area of the nozzle to reach the queue just in time? The time to reach the queue from the gas station is 1 min and the velocity that the fuel is coming out of the nozzle is v=1.53m/s

A) 419.57 cm^2

B) 378.33 cm^2

C) 353.98 cm^2

D) 424.56 cm^2

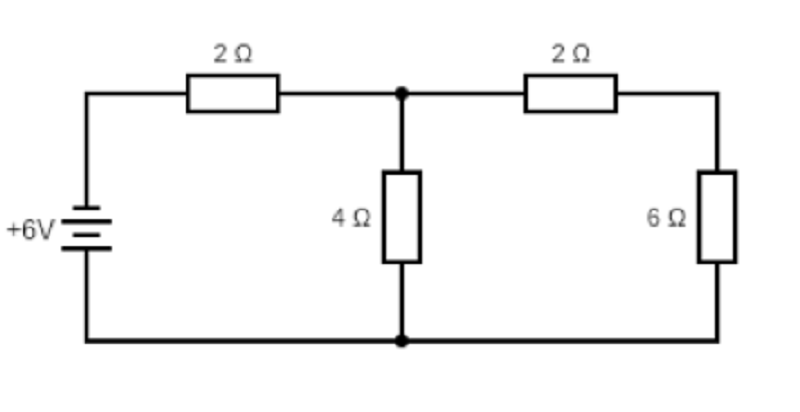

4. What is the minimum distance required between an LVS and TS system of 270V when they are on the same enclosure

A) 10mm

B) 5mm

C) 0mm

D) 30mm

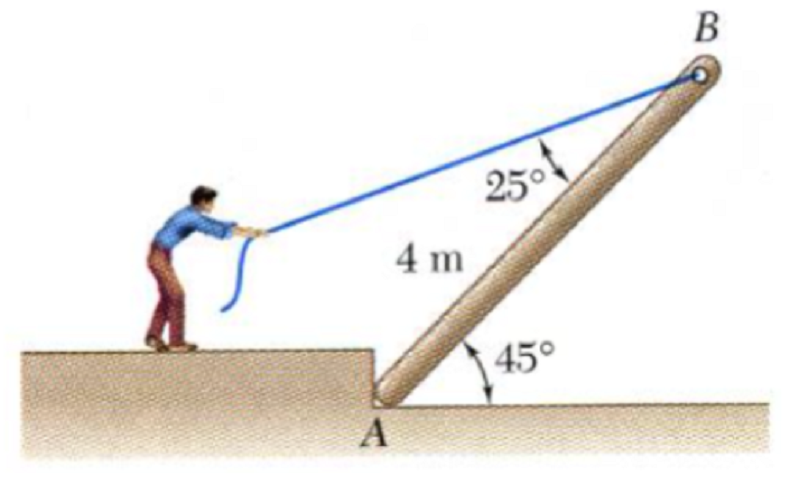

5. Α man lifts a wooden beam of mass 10 kg and length 4 m by pulling it with a rope. Find the force T in the rope and the reaction at point A. (round to 3 decimal in operations)

A) T=75,6 N , R=122,9 N

B) T=90,1 N , R=156,4 N

C) T=88,3 N , R=125,9 N

D) T=81,9 N , R=147,8 N

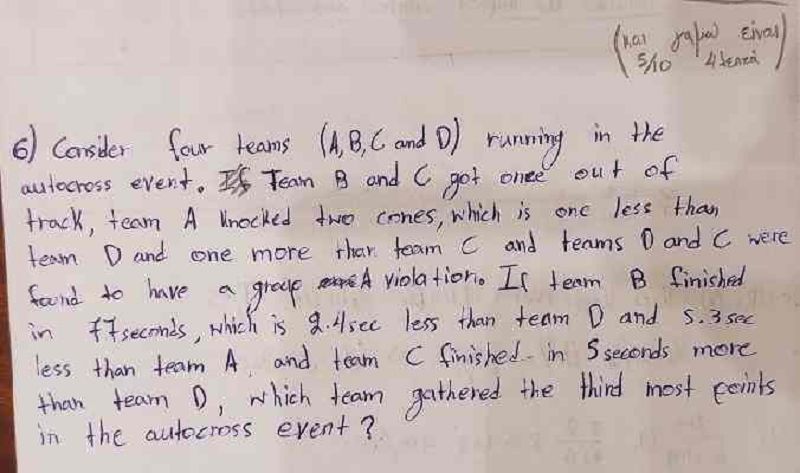

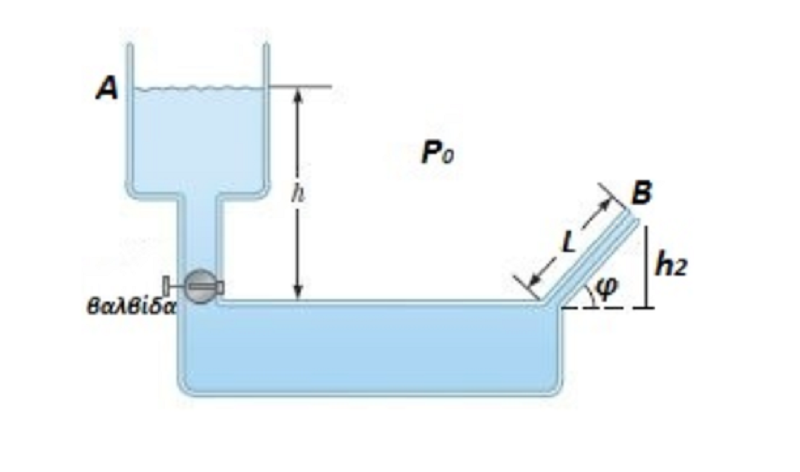

7. What must the correlation of the two densities be in order for equal pressure on each side of the valve, given that L is h/4 and φ=30°

A) 4*ρΑ=ρΒ

B) 8*ρΑ=ρΒ

C) 4√2*ρΑ=ρΒ

D) (8/√2)*ρΑ=ρΒ

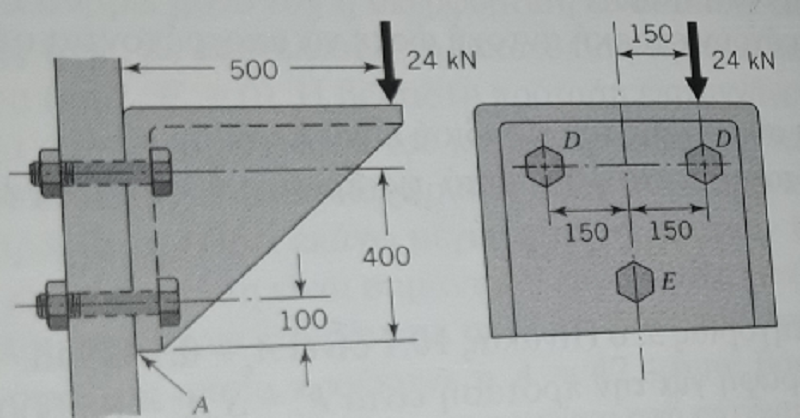

9. Τhe figure shows a vertically loaded support which is connected to a hinged member with three identical bolts. Although normally the load of 24 kN is applied at the center, the selection of bolts should be made assuming the load eccentricity indicated in the figure. Due to safety concerns, the specification calls for SAE grade 9.8 steel bolts and a minimum safety factor of 6. Find the right size bolt for this application (Give answer in the following form: Mx x y)

10. Which of the following sentences is in compliance with the rules?

A) A cockpit where the helmet of a 95th percentile male is 60 mm away from the straight line drawn from the top of the main hoop to the top of the front hoop is legal

B) A side impact structure 15 mm above the driver's shoulders without further components is legal

C) A monocoque-equipped vehicle where the template can reach 310 mm above the lowest inside chassis point between the front and main hoop is legal

D) Any configuration of anti-submarine belts and their attachments that can support 6.5 kN is legal

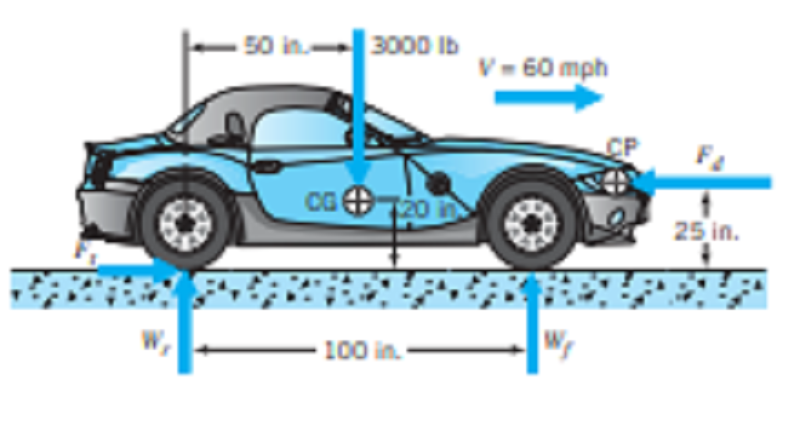

11. The 3000-lb (loaded weight) car shown in Figure 2.1 is going 60 mph and at this speed the aerodynamic drag is 16 hp. The center of gravity (CG) and the center of aerodynamic pressure (CP) are located as shown. Determine the ground reaction forces on the front and rear wheels. (answer in lb and whole numbers)
