Modules 11-13 IP Addressing

1. What is the prefix length notation for the subnet mask 255.255.255.224?
/25
/26
/27
/28
2. How many valid host addresses are available on an IPv4 subnet that is configured with a /26 mask?
254
190

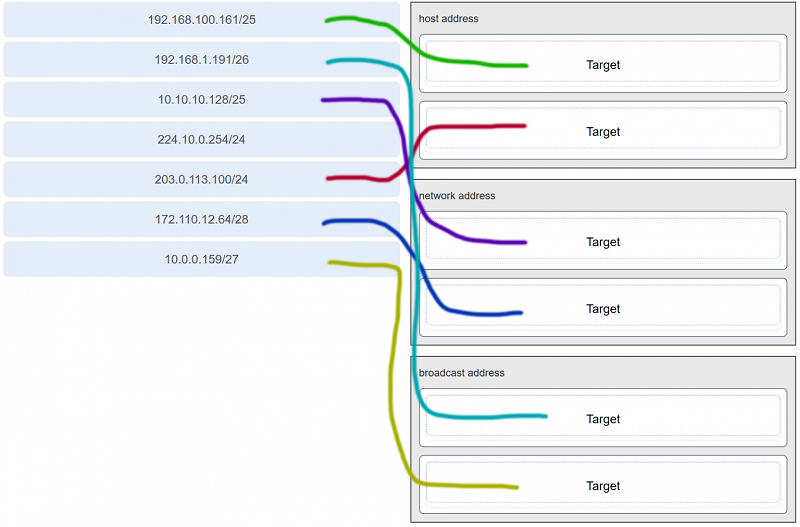

192
62
64
3. Which subnet mask would be used if 5 host bits are available?
255.255.255.0
255.255.255.128
255.255.255.224​
255.255.255.240
4. A network administrator subnets the 192.168.10.0/24 network into subnets with /26 masks. How many equal-sized subnets are created?
1
2
4
8
16
64

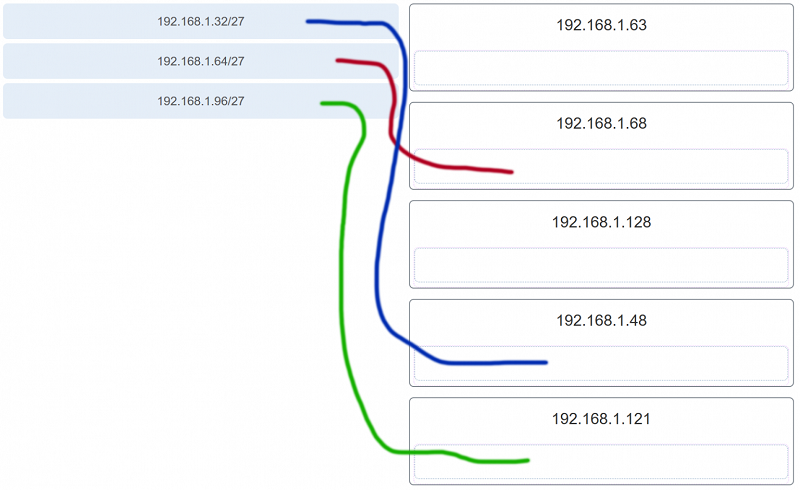

5. Match the subnetwork to a host address that would be included within the subnetwork. (Not all options are used.)
Did you memorize this?
Yes
No
6. An administrator wants to create four subnetworks from the network address 192.168.1.0/24. What is the network address and subnet mask of the second useable subnet?
Subnetwork 192.168.1.64 subnet mask 255.255.255.192
Subnetwork 192.168.1.32 subnet mask 255.255.255.240
Subnetwork 192.168.1.64 subnet mask 255.255.255.240
Subnetwork 192.168.1.128 subnet mask 255.255.255.192
Subnetwork 192.168.1.8 subnet mask 255.255.255.224
7. How many bits must be borrowed from the host portion of an address to accommodate a router with five connected networks?
Two
Three
Four
Five
8. How many host addresses are available on the 192.168.10.128/26 network?
30
32
60
62
64
9. How many host addresses are available on the network 172.16.128.0 with a subnet mask of 255.255.252.0?
510
512
1022
1024
2046
2048

10. Match each IPv4 address to the appropriate address category. (Not all options are used.)

Did you memorize this?
Yes
No
11. What three blocks of addresses are defined by RFC 1918 for private network use? (Choose three.)
10.0.0.0/8
172.16.0.0/12
192.168.0.0/16
100.64.0.0/14
169.254.0.0/16
239.0.0.0/8
12. Refer to the exhibit. An administrator must send a message to everyone on the router A network. What is the broadcast address for network 172.16.16.0/22?
172.16.16.255
172.16.20.255
172.16.19.255
172.16.23.255
172.16.255.255
13. A site administrator has been told that a particular network at the site must accommodate 126 hosts. Which subnet mask would be used that contains the required number of host bits?
255.255.255.0
255.255.255.128
255.255.255.224
255.255.255.240
14. Refer to the exhibit. Considering the addresses already used and having to remain within the 10.16.10.0/24 network range, which subnet address could be assigned to the network containing 25 hosts?
10.16.10.160/26
10.16.10.128/28
10.16.10.64/27
10.16.10.224/26
10.16.10.240/27
10.16.10.240/28
15. What is the usable number of host IP addresses on a network that has a /26 mask?
256
254
64
62
32
16
16. Which address prefix range is reserved for IPv4 multicast?
240.0.0.0 – 254.255.255.255
224.0.0.0 – 239.255.255.255
169.254.0.0 – 169.254.255.255
127.0.0.0 – 127.255.255.255
17. Refer to the exhibit. Match the network with the correct IP address and prefix that will satisfy the usable host addressing requirements for each network.
i304956v6n1_207918CCNA1-v7-ITN-IP-Addressing-Exam-Answers-003-1536x754-1
Yes
No
18. A high school in New York (school A) is using videoconferencing technology to establish student interactions with another high school (school B) in Russia. The videoconferencing is conducted between two end devices through the Internet. The network administrator of school A configures the end device with the IP address 209.165.201.10. The administrator sends a request for the IP address for the end device in school B and the response is 192.168.25.10. Neither school is using a VPN. The administrator knows immediately that this IP will not work. Why?
This is a loopback address.
This is a link-local address.
This is a private IP address.
There is an IP address conflict.
19. Which three addresses are valid public addresses? (Choose three.)
198.133.219.17
192.168.1.245
10.15.250.5
128.107.12.117
172.31.1.25
64.104.78.227
20. A message is sent to all hosts on a remote network. Which type of message is it?
Limited broadcast
Multicast
Directed broadcast
Unicast
21. A company has a network address of 192.168.1.64 with a subnet mask of 255.255.255.192. The company wants to create two subnetworks that would contain 10 hosts and 18 hosts respectively. Which two networks would achieve that? (Choose two.)
192.168.1.16/28
192.168.1.64/27
192.168.1.128/27
192.168.1.96/28
192.168.1.192/28
22. Which address is a valid IPv6 link-local unicast address?
FEC8:1::FFFF
FD80::1:1234
FE80::1:4545:6578:ABC1
FE0A::100:7788:998F
FC90:5678:4251:FFFF
23. Which of these addresses is the shortest abbreviation for the IP address: 3FFE:1044:0000:0000:00AB:0000:0000:0057?
3FFE:1044::AB::57
3FFE:1044::00AB::0057
3FFE:1044:0:0:AB::57
3FFE:1044:0:0:00AB::0057
3FFE:1044:0000:0000:00AB::57
3FFE:1044:0000:0000:00AB::0057
24. A network administrator has received the IPv6 prefix 2001:DB8::/48 for subnetting. Assuming the administrator does not subnet into the interface ID portion of the address space, how many subnets can the administrator create from the /48 prefix?
16
256
4096
65536
25. Given IPv6 address prefix 2001:db8::/48, what will be the last subnet that is created if the subnet prefix is changed to /52?
2001:db8:0:f00::/52
2001:db8:0:8000::/52
2001:db8:0:f::/52
2001:db8:0:f000::/52
26. Consider the following range of addresses:
2001:0DB8:BC15:00A0:0000::
2001:0DB8:BC15:00A1:0000::
2001:0DB8:BC15:00A2:0000::
2001:0DB8:BC15:00AF:0000::
The prefix-length for the range of addresses is?
/60
This is a writen question I can't do this on here.
27. What type of IPv6 address is FE80::1?
Loopback
Link-local
Multicast
Global unicast

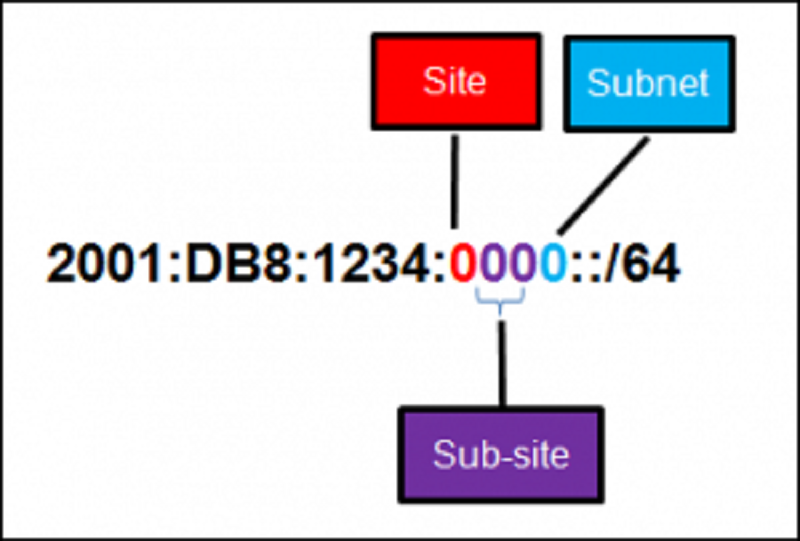

28. Refer to the exhibit. A company is deploying an IPv6 addressing scheme for its network. The company design document indicates that the subnet portion of the IPv6 addresses is used for the new hierarchical network design, with the site subsection to represent multiple geographical sites of the company, the sub-site section to represent multiple campuses at each site, and the subnet section to indicate each network segment separated by routers. With such a scheme, what is the maximum number of subnets achieved per sub-site?
0
4
16
256
29. What is used in the EUI-64 process to create an IPv6 interface ID on an IPv6 enabled interface?
The MAC address of the IPv6 enabled interface
A randomly generated 64-bit hexadecimal address
An IPv6 address that is provided by a DHCPv6 server
An IPv4 address that is configured on the interface
30. What is the prefix for the host address 2001:DB8:BC15:A:12AB::1/64?
2001:DB8:BC15
2001:DB8:BC15:A
2001:DB8:BC15:A:1
2001:DB8:BC15:A:12
31. An IPv6 enabled device sends a data packet with the destination address of FF02::1. What is the target of this packet?​
The one IPv6 device on the link that has been uniquely configured with this address
All IPv6 enabled devices on the local link​ or network
Only IPv6 DHCP servers​
Only IPv6 configured routers
32. Match the IPv6 address with the IPv6 address type. (Not all options are used.)
CCNA1-v7-ITN-IP-Addressing-Exam-Answers-004-1536x987-1
CCNA1-v7-ITN-IP-Addressing-Exam-Answers-004-1536x987-1
Did you memorize this?
Yes
No
33. Which IPv6 prefix is reserved for communication between devices on the same link?
FC00::/7
2001::/32
FE80::/10
FDFF::/7
34. Which type of IPv6 address refers to any unicast address that is assigned to multiple hosts?
Unique local
Global unicast
Link-local
Anycast
35. What are two types of IPv6 unicast addresses? (Choose two.)
Multicast
Loopback
Link-local
Anycast
Broadcast
36. Which service provides dynamic global IPv6 addressing to end devices without using a server that keeps a record of available IPv6 addresses?
Stateful DHCPv6
SLAAC
Static IPv6 addressing
Stateless DHCPv6
37. Which protocol supports Stateless Address Autoconfiguration (SLAAC) for dynamic assignment of IPv6 addresses to a host?
ARPv6
DHCPv6
ICMPv6
UDP

38. Three methods allow IPv6 and IPv4 to co-exist. Match each method with its description. (Not all options are used.)

CCNA1-v7-ITN-IP-Addressing-Exam-Answers-005-1536x650-1

Did you memorize this?

Yes
No
39. A technician uses the ping 127.0.0.1 command. What is the technician testing?
The TCP/IP stack on a network host
Connectivity between two adjacent Cisco devices
Connectivity between a PC and the default gateway
Connectivity between two PCs on the same network
Physical connectivity of a particular PC and the network

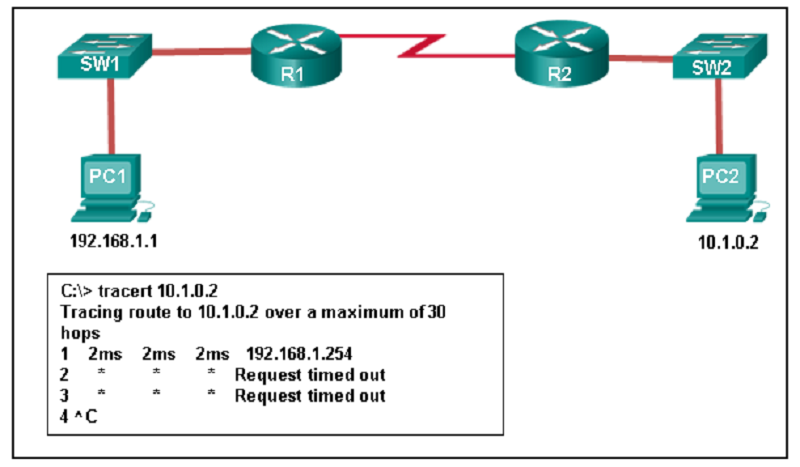

40. Refer to the exhibit. An administrator is trying to troubleshoot connectivity between PC1 and PC2 and uses the tracert command from PC1 to do it. Based on the displayed output, where should the administrator begin troubleshooting?
PC2
R1
SW2
R2
SW1
41. Which protocol is used by the traceroute command to send and receive echo-requests and echo-replies?
SNMP
ICMP
Telnet
TCP
42. Which ICMPv6 message is sent when the IPv6 hop limit field of a packet is decremented to zero and the packet cannot be forwarded?
Network unreachable
Time exceeded
Protocol unreachable
Port unreachable
43. A user executes a traceroute over IPv6. At what point would a router in the path to the destination device drop the packet?
When the value of the Hop Limit field reaches 255
When the value of the Hop Limit field reaches zero
When the router receives an ICMP time exceeded message
When the target host responds with an ICMP echo reply message
44. What is the purpose of ICMP messages?
To inform routers about network topology changes
To ensure the delivery of an IP packet
To provide feedback of IP packet transmissions
To monitor the process of a domain name to IP address resolution
45. What source IP address does a router use by default when the traceroute command is issued?
The highest configured IP address on the router
A loopback IP address
The IP address of the outbound interface
The lowest configured IP address on the router

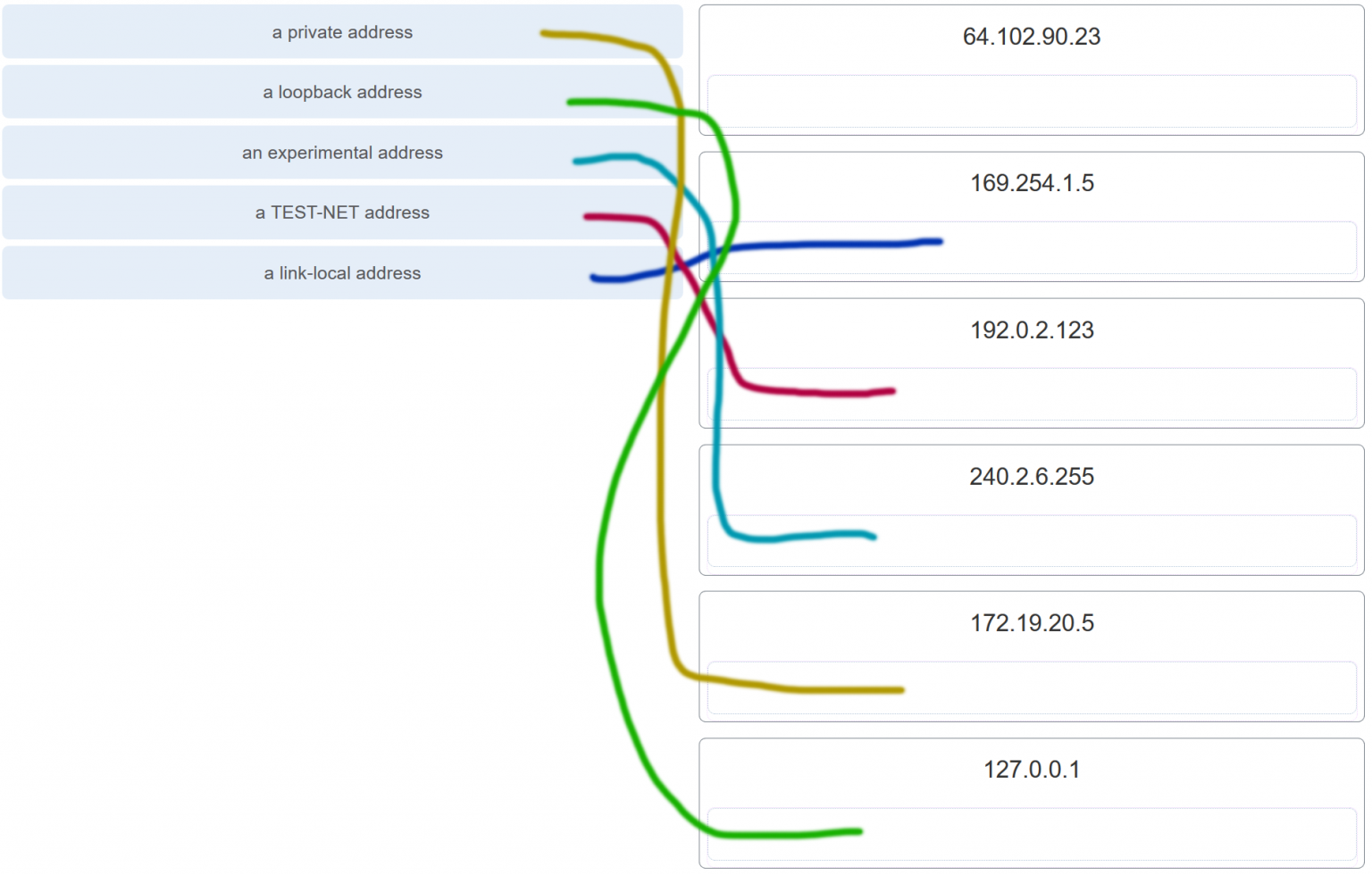

46. Match each description with an appropriate IP address. (Not all options are used.)

CCNA1-v7-ITN-IP-Addressing-Exam-Answers-006-1536x980-1

Did you memorize this?

Yes
No
47. A user issues a ping 192.135.250.103 command and receives a response that includes a code of 1. What does this code represent?
Host unreachable
Protocol unreachable
Port unreachable
Network unreachable
48. Which subnet would include the address 192.168.1.96 as a usable host address?
192.168.1.64/26
192.168.1.32/27
192.168.1.32/28
192.168.1.64/29

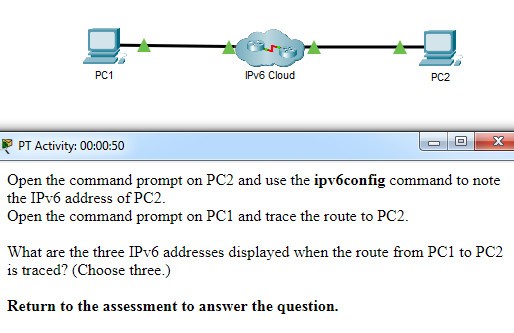

49. Open the PT Activity. Perform the tasks in the activity instructions and then answer the question.

CCNA-1-v7-Modules-11-13-IP-Addressing-Exam-Answers-Full

What are the three IPv6 addresses displayed when the route from PC1 to PC2 is traced? (Choose three.)

2001:DB8:1:1::1
2001:DB8:1:1::A
2001:DB8:1:2::2
2001:DB8:1:2::1
2001:DB8:1:3::1
2001:DB8:1:3::2
2001:DB8:1:4::1
50. A host is transmitting a broadcast. Which host or hosts will receive it?
All hosts in the same subnet
A specially defined group of hosts
The closest neighbor on the same network
All hosts on the Internet
51. A host is transmitting a unicast. Which host or hosts will receive it?
One specific host
A specially defined group of hosts
All hosts on the Internet
The closest neighbor on the same network
52. A user issues a ping 2001:db8:FACE:39::10 command and receives a response that includes a code of 3. What does this code represent?
Address unreachable
Network unreachable
Host unreachable
Protocol unreachable
53. A host is transmitting a multicast. Which host or hosts will receive it?
A specially defined group of hosts
The closest neighbor on the same network
One specific host
Directly connected network devices
60. Which is the compressed format of the IPv6 address 2001:0db8:0000:0000:0000:a0b0:0008:0001?
2001:db8::a0b0:8:1
2001:db8::ab8:1:0:1000
2001:db80:0:1::80:1
2001:db80:::1::80:1
61. Which is the compressed format of the IPv6 address fe80:09ea:0000:2200:0000:0000:0fe0:0290?
Fe80:9ea:0:2200::fe0:290
Fe80:9:20::b000:290
Fe80:9ea0::2020:0:bf:e0:9290
Fe80:9ea0::2020::bf:e0:9290
62. Which is the compressed format of the IPv6 address 2002:0042:0010:c400:0000:0000:0000:0909?
2002:42:10:c400::909
200:420:110:c4b::910:0:90
2002:4200::25:1090:0:99
2002:42::25:1090:0:99
63. Which is the compressed format of the IPv6 address 2001:0db8:0000:0000:0ab8:0001:0000:1000?
2001:db8::ab8:1:0:1000
2001:db8::a0b0:8:1
2001:db8:1::ab8:0:1
2001:db8:0:1::8:1
64. Which is the compressed format of the IPv6 address 2002:0420:00c4:1008:0025:0190:0000:0990?
2002:420:c4:1008:25:190::990
2002:42:10:c400::909
2002:4200::25:1090:0:99
2002:42::25:1090:0:99
65. Which is the compressed format of the IPv6 address 2001:0db8:0000:0000:0000:a0b0:0008:0001?
2001:db8::a0b0:8:1
2001:db8:1::ab8:0:1
2001:db8::ab8:1:0:1000
2001:db8:0:1::8:1
66. Which is the compressed format of the IPv6 address fe80:0000:0000:0000:0220:0b3f:f0e0:0029?
Fe80::220:b3f:f0e0:29
Fe80:9ea:0:2200::fe0:290
Fe80:9ea0::2020:0:bf:e0:9290
Fe80:9ea0::2020::bf:e0:9290
67. Which is the compressed format of the IPv6 address 2001:0db8:0000:0000:0000:a0b0:0008:0001?
2001:db8::a0b0:8:1
2001:db8::ab8:1:0:1000
2001:db80:0:1::80:1
2001:db8:0:1::8:1
68. Which is the compressed format of the IPv6 address 2002:0042:0010:c400:0000:0000:0000:0909?
2002:42:10:c400::909
2002:4200::25:1090:0:99
2002:420:c4:1008:25:190::990
2002:42::25:1090:0:99
69. Which is the compressed format of the IPv6 address fe80:09ea:0000:2200:0000:0000:0fe0:0290?
Fe80:9ea:0:2200::fe0:290
Fe80:9ea0::2020:0:bf:e0:9290
Fe80::220:b3f:f0e0:29
Fe80::0220:0b3f:f0e0:0029
70. A user issues a ping 2001:db8:FACE:39::10 command and receives a response that includes a code of 2 . What does this code represent?
Beyond scope of the source address
Communication with the destination administratively prohibited
Address unreachable
No route to destination
71. A user issues a ping 192.135.250.103 command and receives a response that includes a code of 1 . What does this code represent?
Host unreachable
Beyond scope of the source address
Address unreachable
Communication with the destination administratively prohibited
72. A user issues a ping fe80:65ab:dcc1::100 command and receives a response that includes a code of 3 . What does this code represent?
Address unreachable
Communication with the destination administratively prohibited
Beyond scope of the source address
No route to destination
73. A user issues a ping 10.10.14.67 command and receives a response that includes a code of 0 . What does this code represent?
Network unreachable
Protocol unreachable
Port unreachable
Host unreachable
74. A user issues a ping fe80:65ab:dcc1::100 command and receives a response that includes a code of 4. What does this code represent?
Port unreachable
Host unreachable
Protocol unreachable
Network unreachable
75. A user issues a ping 198.133.219.8 command and receives a response that includes a code of 0 . What does this code represent?
Network unreachable
Protocol unreachable
Port unreachable
Host unreachable
76. A user issues a ping 2001:db8:3040:114::88 command and receives a response that includes a code of 4 . What does this code represent?
Port unreachable
Host unreachable
Protocol unreachable
Network unreachable
77. A user issues a ping 2001:db8:FACE:39::10 command and receives a response that includes a code of 2. What does this code represent?
Beyond scope of the source address
Host unreachable
Protocol unreachable
Network unreachable
{"name":"Modules 11-13 IP Addressing", "url":"https://www.quiz-maker.com/QPREVIEW","txt":"1. What is the prefix length notation for the subnet mask 255.255.255.224?, 2. How many valid host addresses are available on an IPv4 subnet that is configured with a \/26 mask?, 3. Which subnet mask would be used if 5 host bits are available?","img":"https://www.quiz-maker.com/3012/CDN/94-4620829/ccna1-v7-itn-ip-addressing-exam-answers-001-1536x942-1.png?sz=1200"}
Powered by: Quiz Maker
