Propulsion scavenge system

An educational infographic depicting parts of a propulsion scavenge system, including oil tanks, scavenge pumps, and filters, with labeled components and a clean, technical design.

Propulsion Scavenge System Quiz

Test your knowledge of the propulsion scavenge system with our engaging quiz! This quiz covers key components and their functions, designed for aviation enthusiasts and professionals alike.

Participants can expect:

  • 11 multiple-choice questions
  • A focus on critical components within the scavenge system
  • Scoring to help assess your knowledge
11 Questions3 MinutesCreated by NavigatingEngine3

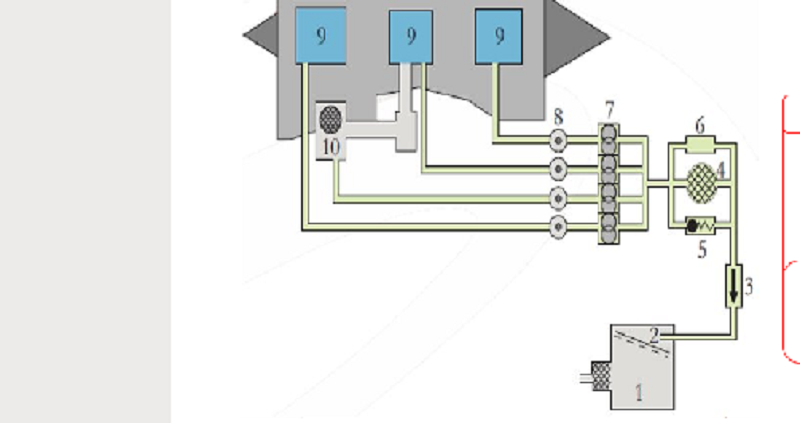

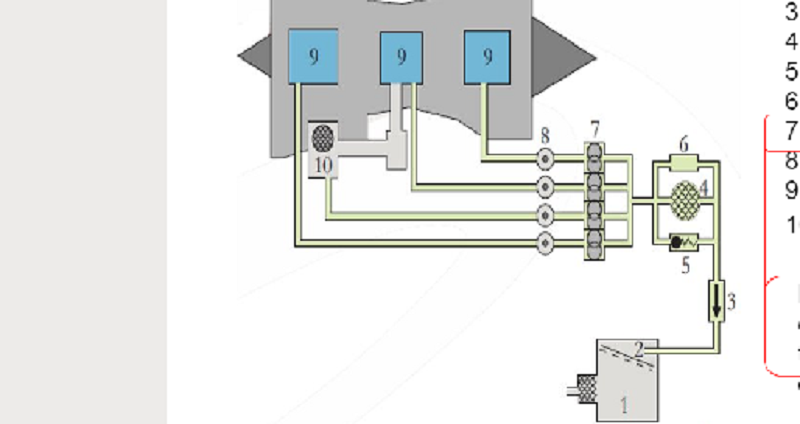

Name component 1
Oil Tank
De aerator
Scavenge pumps
Name component 2
De aerator
Oil Tanks
Scavenge filter
Name component 3
Scavenge filter
Scavenge pumps
Non-return valve
Name component 4
Pressure differential switch
Scavenge filter
Scavenge Pumps
Name component 5
Magnetic chip detectors
Filter by-pass valve
Accessory gearbox sump
Name component 6
Pressure differential switch
Non-return valve
Bearing chamber sumps
Name component 7
Scavenge pumps
Magnetic chip detectors
Scavenge filter
Name component 8
Filter by-pass valve
Pressure differential switch
Magnetic chip detectors
Name component 9
Accessory gearbox sump
Bearing chamber sumps
Magnetic chip detectors
Name component 10
De aerator
Filter by pass valve
Accessory gearbox sump
The scavenge pump capacity MUST be...
Lower than the pressure pump output
Higher than the pressure pump output
Equal to the pressure pump output
