AE 212 Basic Electronics Module 2 Quiz

Create a high-quality digital illustration of various electrical components such as resistors, thermistors, and rheostats, arranged in a visually appealing layout, with a light background and educational elements, focused on basic electronics education.

AE 212 Basic Electronics Quiz

Test your knowledge of basic electronics concepts with our interactive quiz designed for students. This quiz covers essential topics like resistors, thermistors, and rheostats.

  • 12 engaging questions
  • Multiple choice and text input answers
  • Ideal for self-assessment
12 Questions3 MinutesCreated by WiringWizard2023
Full Name
It is a type of resistor constructed using a conductive wire which is wrapped or wound around an insulating core.
A.) Wire-wound resistor
B.) Surface-mount resistor
C.) Thermistors
D.) Fusible resistors
The NTC type of Thermistor stands for what?
A.) National Telecommunications Commission
B.) National Trade Certificate
C.) Negative Temperature Coefficient
D.) Nike Training Club
This is a tiny rectangular ceramic body with silver conductive edges on either end and is also known as chip resistors.
A.) Wire-wound resistor
B.) Surface-mount resistor
C.) Thermistors
D.) Fusible resistors
Determine the resistance and tolerance of the 4-color band shown in the figure below.
Q4
A
C
B
D

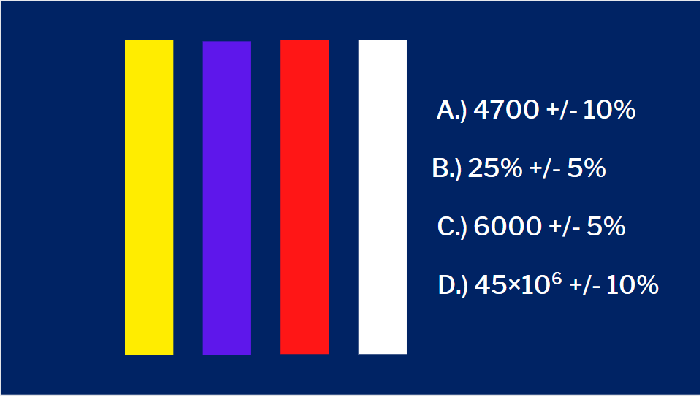

Determine the resistance and tolerance of the 4-color band shown in the figure below.
Q5
A
C
B
D

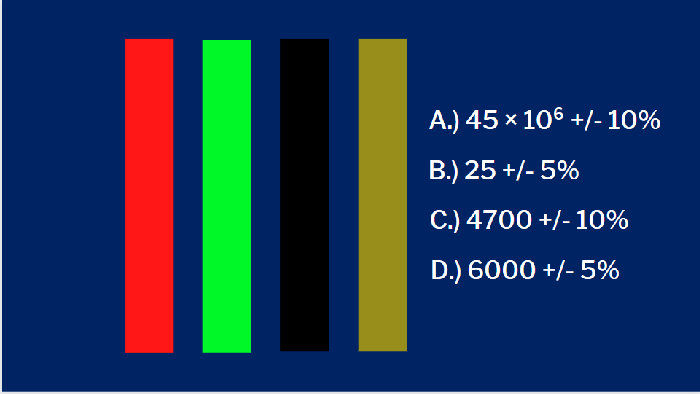

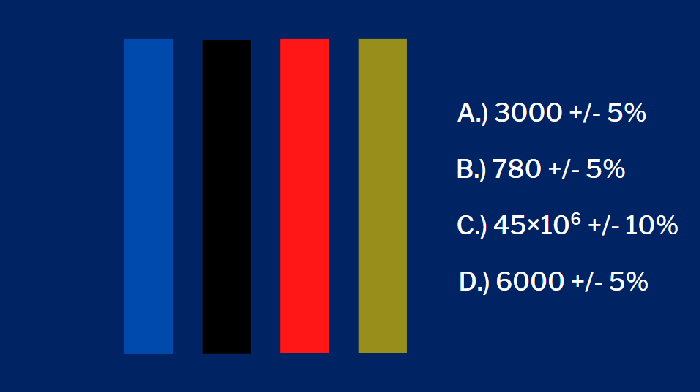

Determine the resistance and tolerance of the 4-color band shown in the figure below.
Q6
A
C
B
D

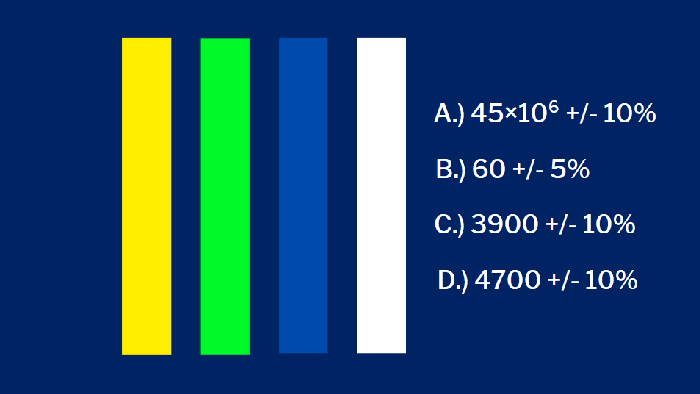

Determine the resistance and tolerance of the 4-color band shown in the figure below.
Q7
A
C
B
D
When we use a rheostat in a circuit, what we are basically doing is changing the ________ of the circuit, to change the current.
A.) Voltage
B.) Resistance
C.) Transistors
What instrument type is a rheostat?
A.) Variable Resistor
B.) Sensor
C.) Parlington Pair Transistor

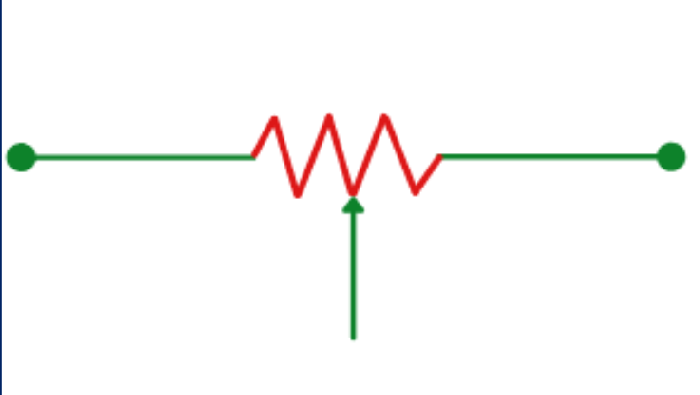

The diagram presented is a schematic symbol of ______.
Q10
A.) Rheostat
B.) Potentiometer
C.) Transistors
