Module 7c - Set 2
Electrical Measurement Mastery Quiz
Test your knowledge on the principles of electrical measurements and aircraft systems with our engaging quiz. Challenge yourself with a variety of questions that cover topics such as rectifiers, coaxial cables, and safety precautions when using measuring equipment.
- 10 multiple choice questions
- Assess your understanding of crucial electrical concepts
- Ideal for students and professionals alike
... Can be connected to a rectifier when measuring AC Current and Voltage
D'Arsonval moving coil
Moving vane
Ammeter
When test leads are attached to the aircraft, it provides automatic temperature compensation created by cold junction
FQI test set
Time domain Reflectometer
Turbine Temperature Tester
What happens if Coaxial Cable is dented
Capacitance change due to smaller dielectric gap between conductor and sheath
RF interference due to damaged shielding
How directional wattmeter is connected to check Radio Frequency
Inserted between transmitter and load
Antenna is removed and replaced with
Transmitter and Antenna
What is the bonding resistance from a device attached to an aircraft control surface which dissipates accumulated electrostatic charge
1 Ohm
0.03 k Ohm
50 mOhm (0.05 ohm)
When conductor is tinned there is a wick of solder
Acceptable wire gets harder when tinned
Acceptable for as long as no sign of burn on insulator
Not acceptable
Precaution when using measuring equipment
Connect ammeter in parallel
Check if calibration is valid
Connect voltmeter in series
Bend radius of wire bundle as compared to its diameter
6 times
20 times
10 times

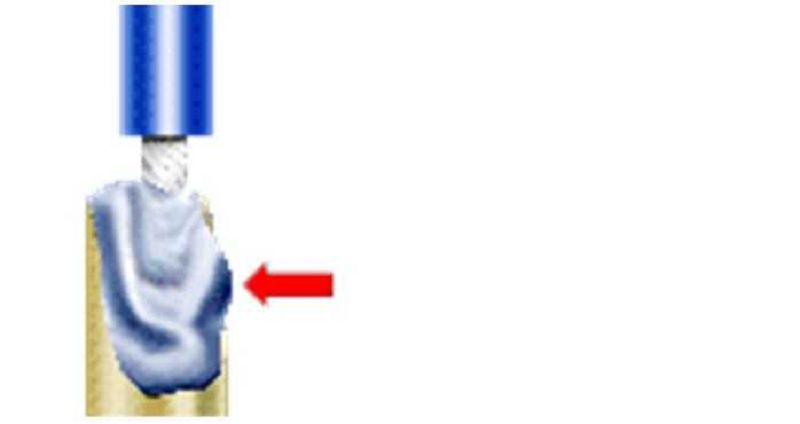

Cup is underfilled
Cup is overfilled
Not acceptable

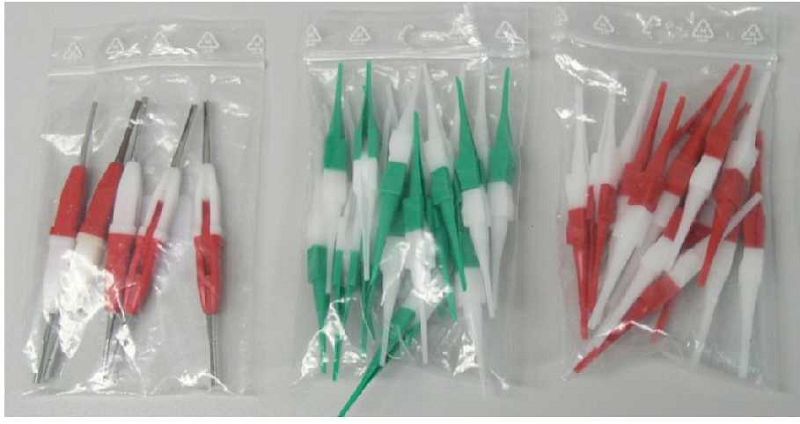

What is the purpose of the different colours?
Ease of identification
Will not damage pin retainer
AWG sizing
