Project #5 - Rotary Wing Component Identification
Rotary Wing Component Identification Quiz
Welcome to the Rotary Wing Component Identification Quiz! Test your knowledge of the Bell 206B and R22 helicopters by answering 10 challenging multiple-choice questions. This quiz is designed for aviation enthusiasts, students, and professionals looking to enhance their understanding of helicopter components.
Key Features:
- 10 Engaging Questions
- Focus on Bell 206B and R22 Models
- Immediate Feedback on Answers
In the Bell 206B helicopter C-GZBL (S/N 371), where is the battery located?
Baggage compartment
Nose
Engine bay
Aft component shelf
In the Bell 206B helicopter C-GZBL (S/N 371), what type of battery is used?
24 V Lead Acid
12 V Lead Acid
24 V Nickel-Cadmium
12 V Nickel-Cadmium
In the Bell 206B helicopter C-GZBL (S/N 371), where are the voltage regulator and reverse current relay located?
Aft electrical compartment (Behind hat box)
Below instrument panel
Forward nose compartment
Aft baggage compartment

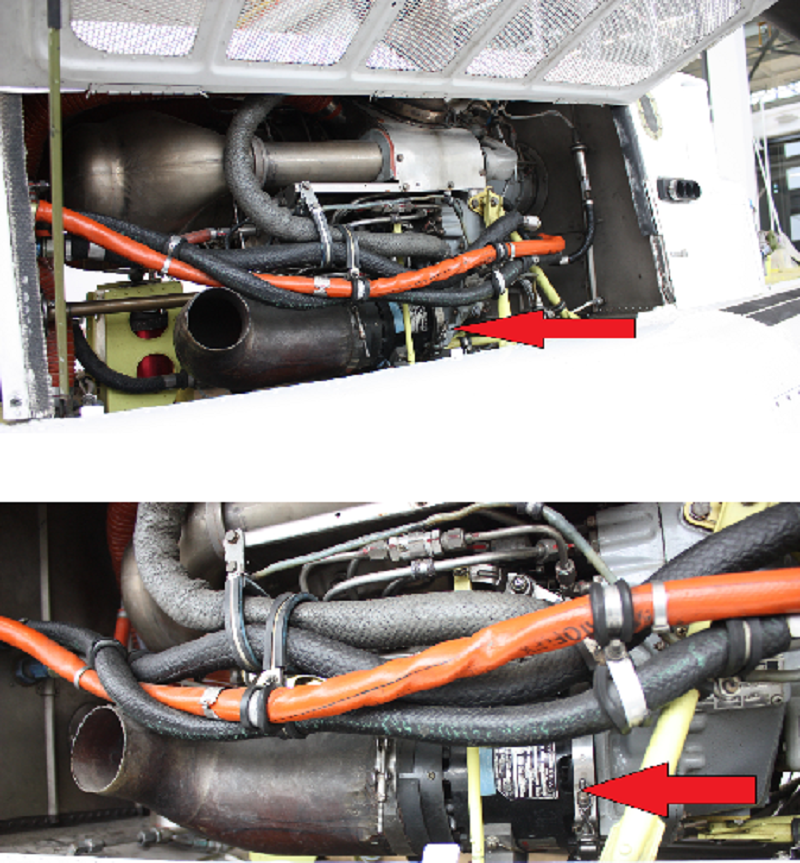

Refer to attached image of Bell 206B helicopter C-GZBL (S/N 371). What component is the red arrow pointing to?
Alternator
Generator
Starter Generator
Starter
In the Bell 206B helicopter C-GZBL (S/N 371), where is the generator reset switch located?
Overhead console
On the starter-generator
Aft electrical compartment (Behind hat box)
Forward nose compartment

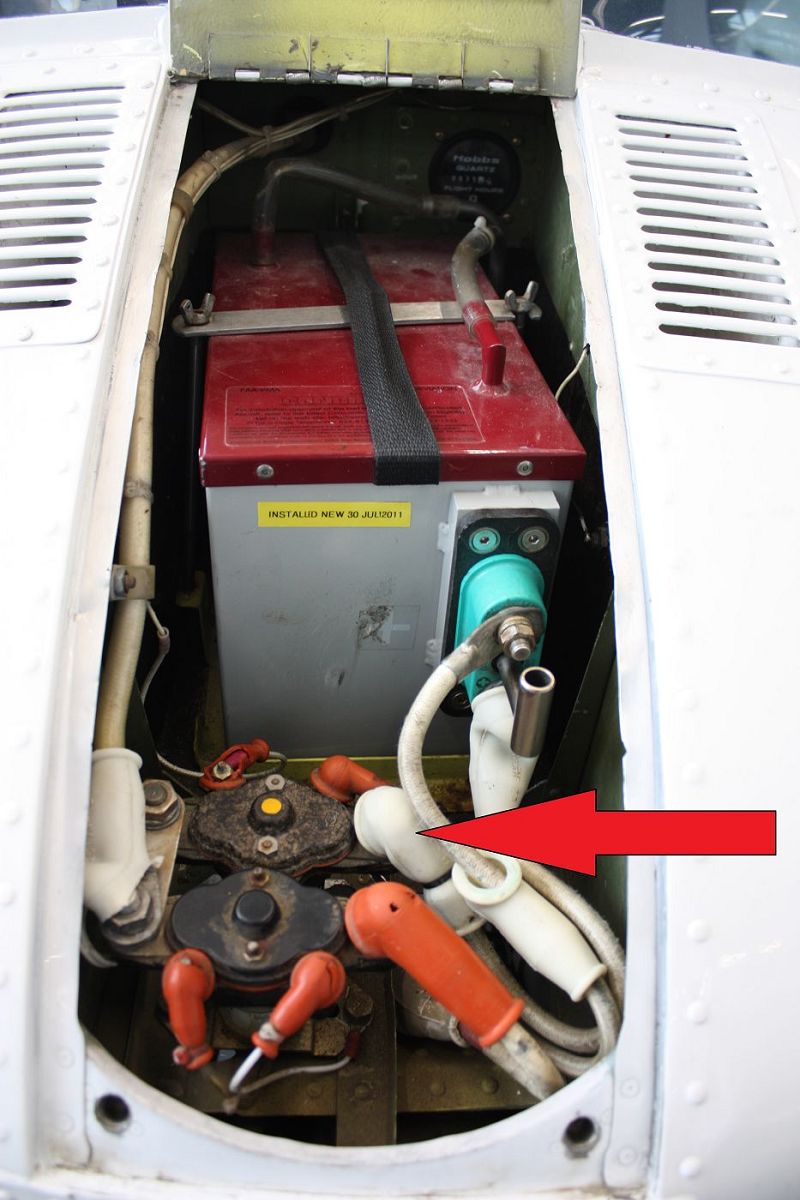

Refer to attached image of Bell 206B helicopter C-GZBL (S/N 371). What component is the red arrow pointing to?
K1 External power relay
K2 Battery relay
Battery
K3 Starter relay
On the R22 helicopter, what is the electrical system voltage?
28 VDC
115 VAC
14 VDC
26 VAC
On the R22 helicopter, where is the standard location for the battery?
Aft side of firewall
Nose under the upper console
Left seat baggage compartment
Lower left steel tube frame

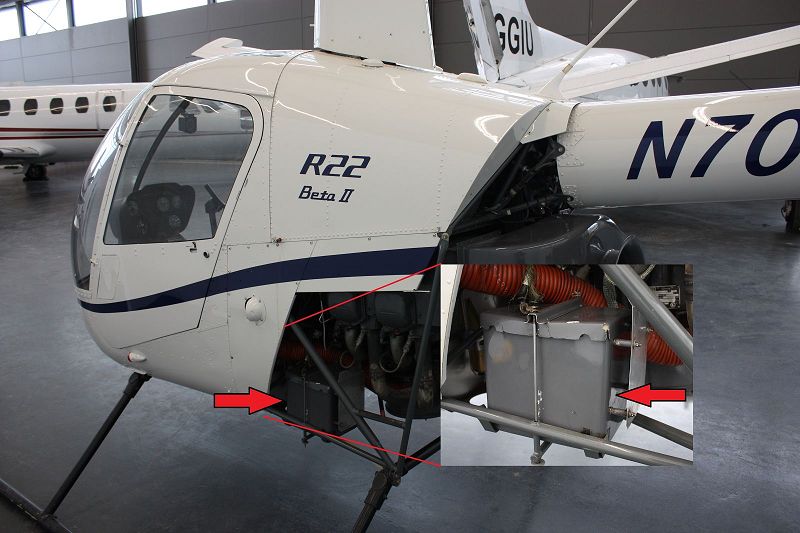

Refer to the attached image of the Robinson R22 helicopter N7017H (S/N 2824). What component is the red arrow pointing to?
12 VDC battery
28 VDC battery
Electrical Junction Box
Baggage box

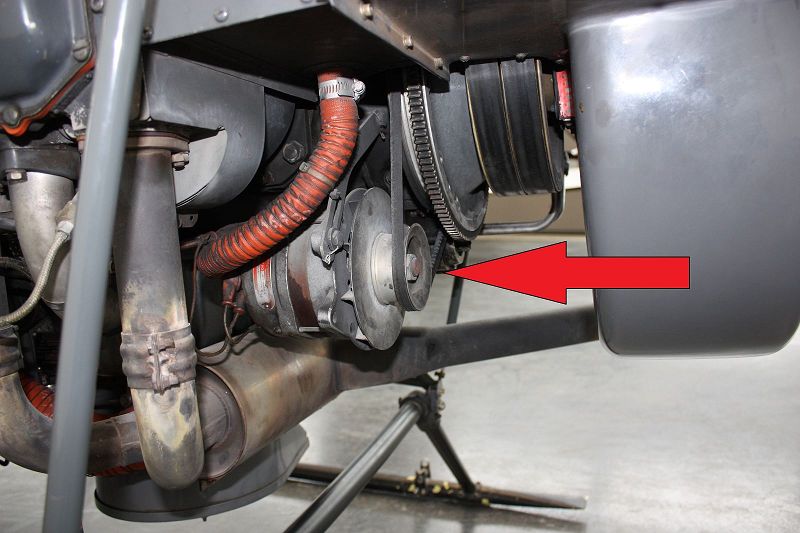

Refer to the attached image of the Robinson R22 helicopter N7017H (S/N 2824). What component is the red arrow pointing to?
70 Amp Generator
Governor
60 Amp Alternator
Starter
