Project #5 - Fixed Wing Component Identification

A highly detailed and educational illustration of a Cessna 172N and a Piper PA-28-151 aircraft, showcasing various components with labels such as alternator, battery, and voltage regulator. The image should emphasize the mechanical aspects, suitable for aviation training purposes.

Fixed Wing Component Identification Quiz

Test your knowledge on the components of fixed-wing aircraft with this engaging quiz! This quiz focuses on identifying key elements in the Cessna 172N and Piper PA-28-151 models, perfect for aviation enthusiasts and professionals alike.

Here’s what you’ll find inside:

  • 10 questions about aircraft components
  • Focus on both Cessna and Piper aircraft
  • Multiple choice format for easy answering
10 Questions2 MinutesCreated by FlyingVessel317

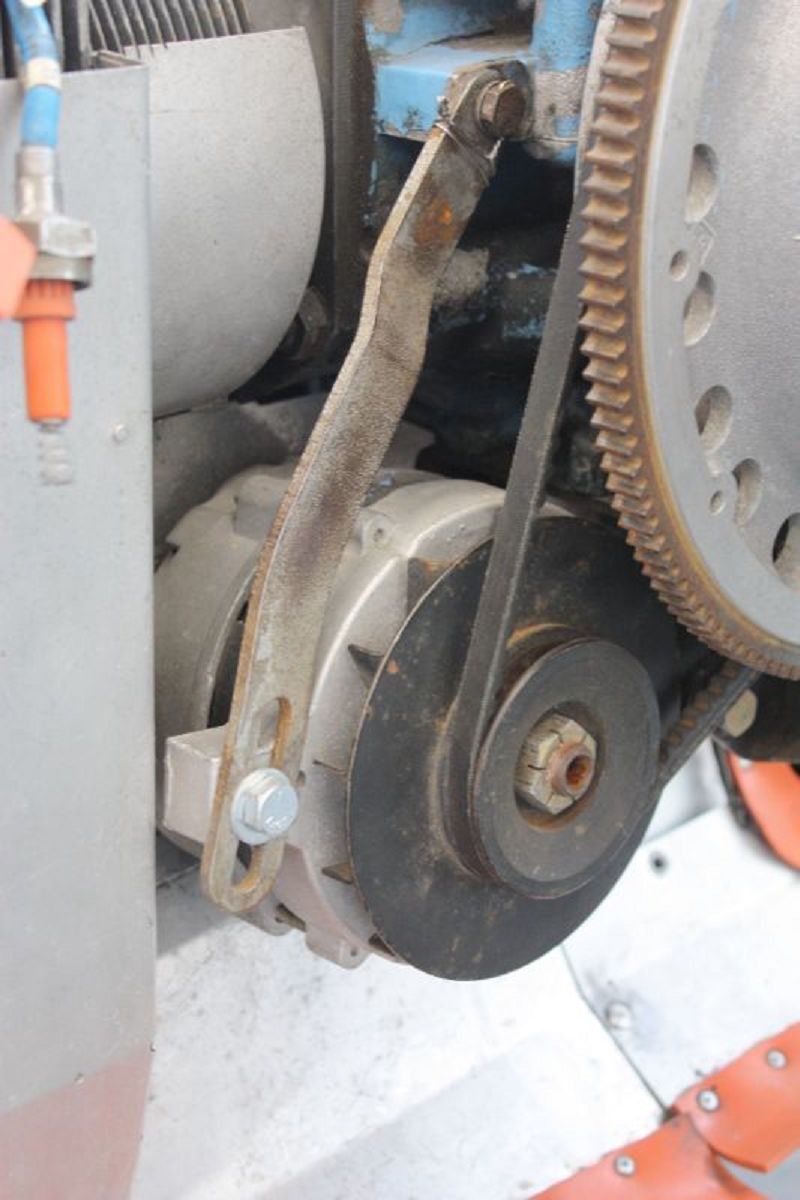

Refer to attached image of Cessna 172N C-GYGE (S/N 17268118). How does the alternator get driven?
It's solid state so has no moving parts
Direct drive from air driven propeller
Belt driven from engine
Gear driven from engine

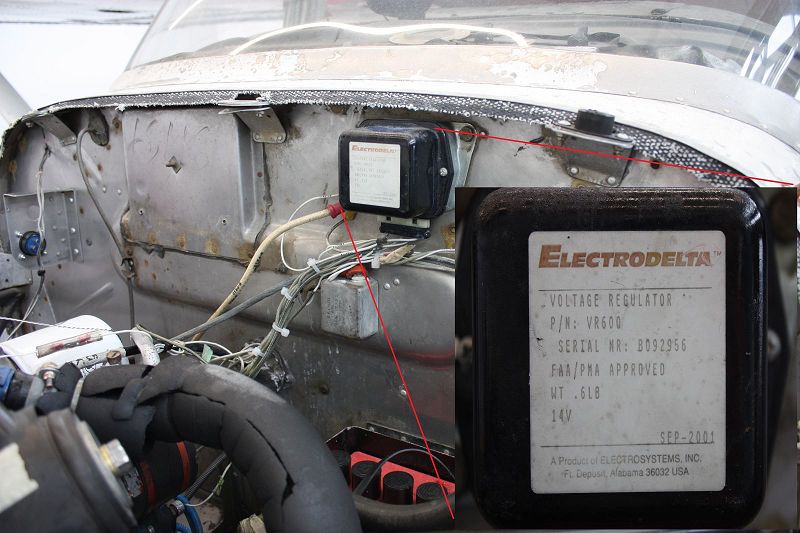

Refer to attached image of Cessna 172N C-GYGE (S/N 17268118) What component is shown in the enlarged inset image?
Regulator, Voltage
Power Supply, Strobe Light
Control Unit, Alternator
Dimming Assembly, Transistorized Light

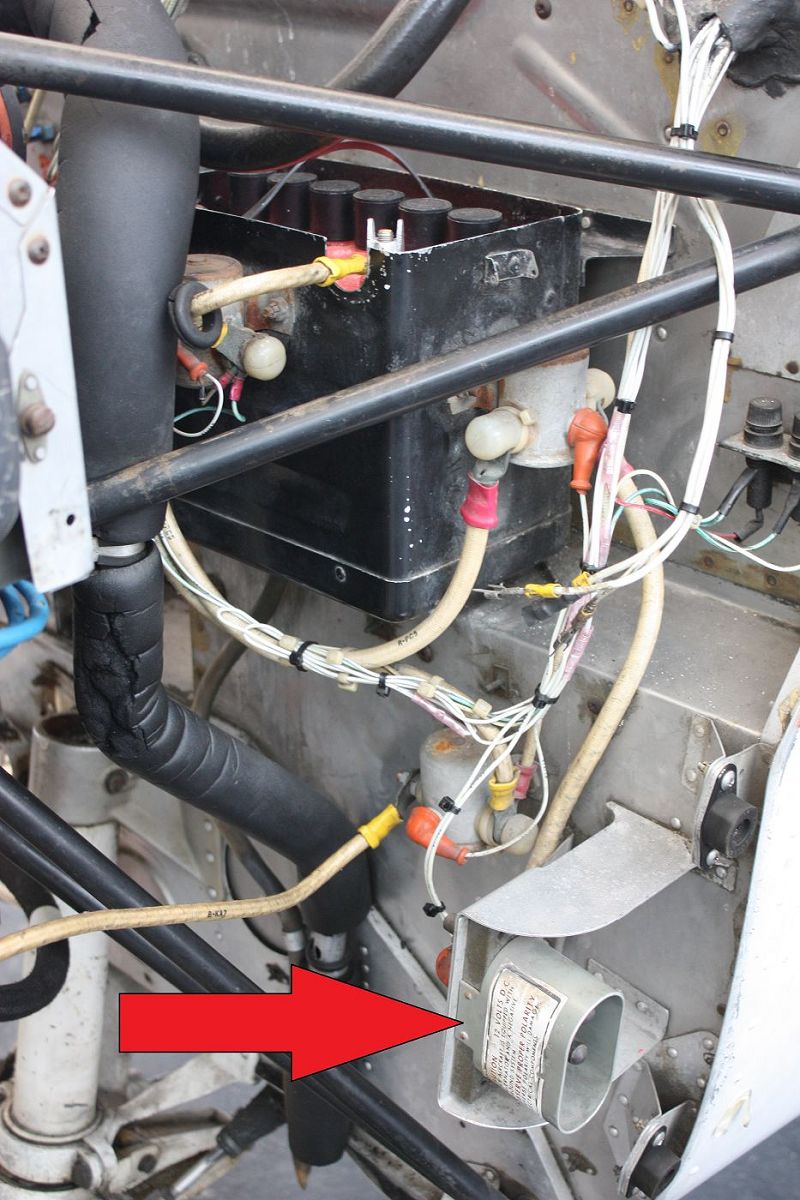

Refer to attached image of Cessna 172N C-GYGE (S/N 17268118). What component is the red arrow pointing to?
Receptacle, Ground Service Plug
Contactor, External Power
Contactor, Battery
Receptacle, Battery Charger

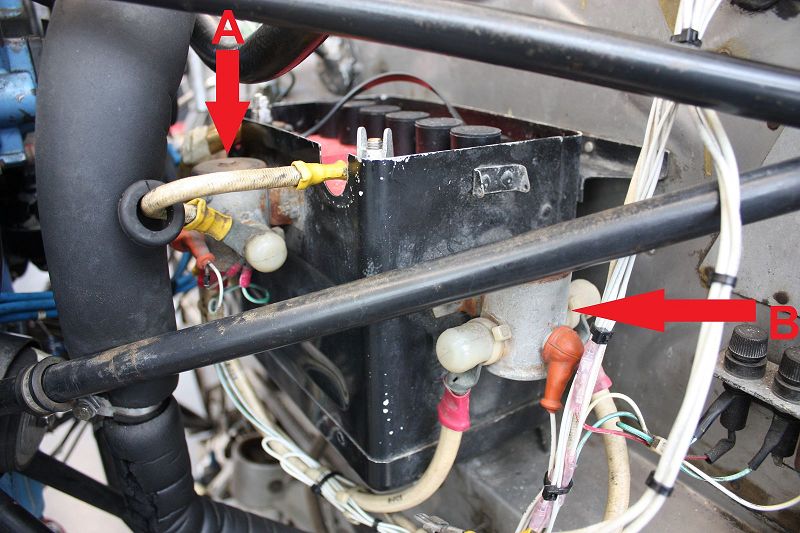

Refer to attached image of Cessna 172N C-GYGE (S/N 17268118) What component is arrow 'A' pointing to?
Contactor, Battery
Regulator, Voltage
Contactor, External Power
Contactor, Starter
What is the voltage of the battery used in Cessna 172N C-GYGE (S/N 17268118)?
12 VDC
14 VAC
26 VAC
28 VDC

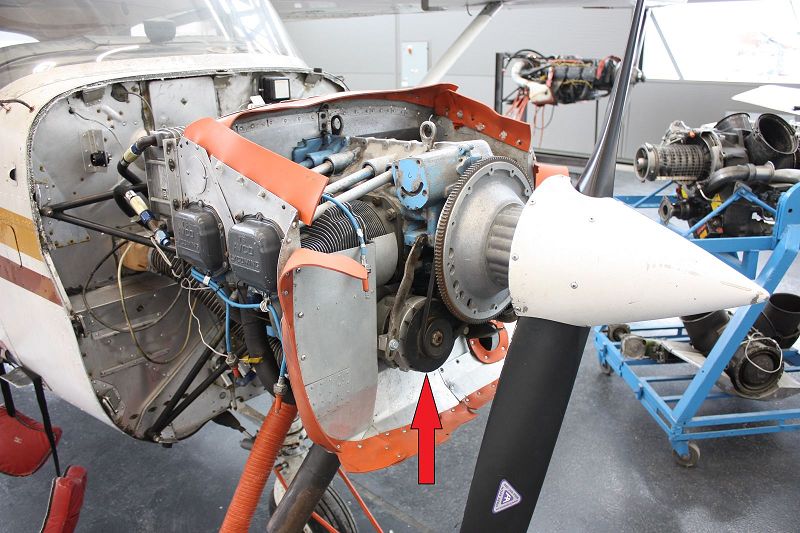

Refer to attached image of Cessna 172N C-GYGE (S/N 17268118). What component is the red arrow pointing to?
Compressor, Air Conditioner
Alternator
Generator
Starter
What is the voltage of the electrical system used in Piper PA-28-151 C-GGZW (S/N 28-7415124)?
14 VDC
12 VAC
26 VAC
28 VDC
Where is the battery located in Piper PA-28-151 C-GGZW (S/N 28-7415124)?
Beneath rear bench seat
On forward side of firewall
Underneath pilot seat
On aft side of firewall

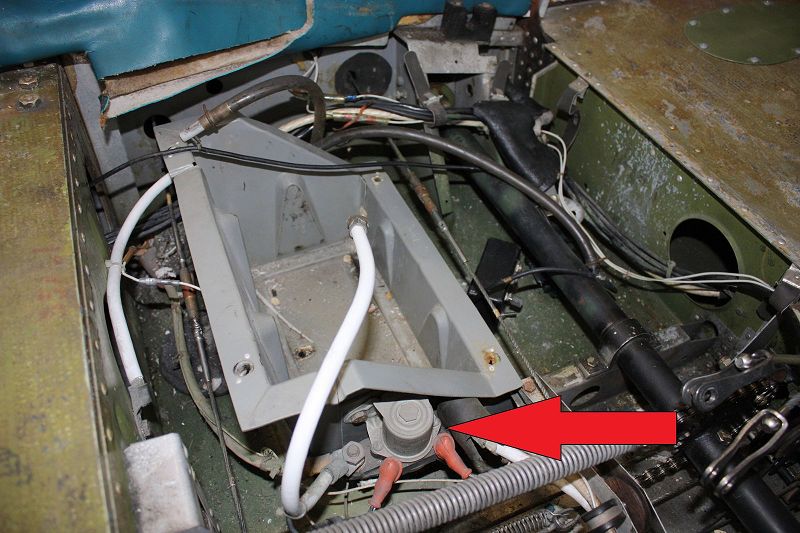

Refer to attached image of Piper PA-28-151 C-GGZW (S/N 28-7415124) What component is the red arrow pointing to?
Contactor, Starter
Regulator, Voltage
Contactor, External Power
Contactor, Power Relay
In Piper PA-28-151 C-GGZW (S/N 28-7415124), what component prevents damage to electrical and avionics equipment in case of regulator malfunction?
Regulator, Voltage
Master Switch
Relay, Overvoltage
Contactor, Power Relay
