What is the use of a Spectrum analyzer

To view signal in time domain

To view signal in frequency domain

To view signal in isometric domain

None of the above

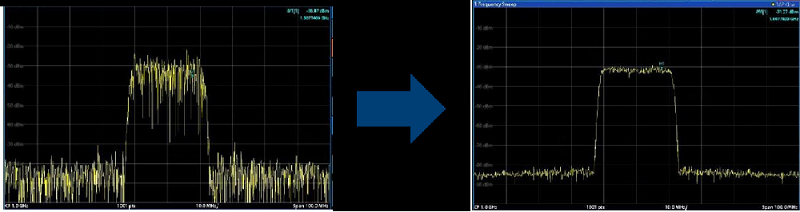

How do you transform the signal as above?

Increase Resolution BW

Decrease Resolution BW

Increase Video BW

Decrease Video BW

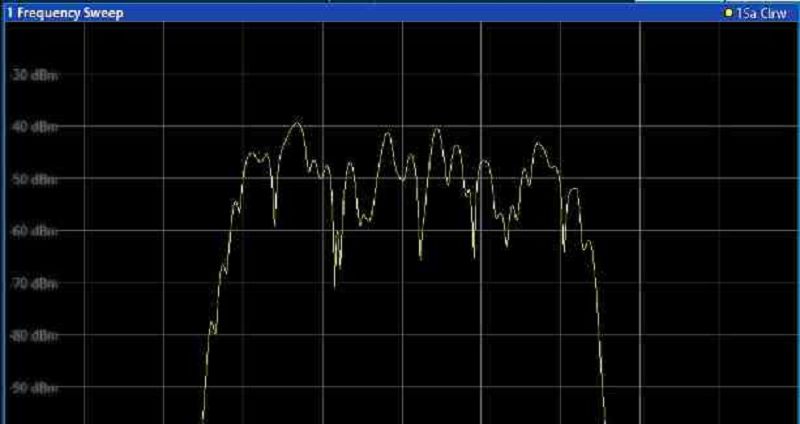

What is Span?

Bandwidth of the signal

Distance between Start and stop frequencies

Distance between Reference Level and Noise Floor

None of the above

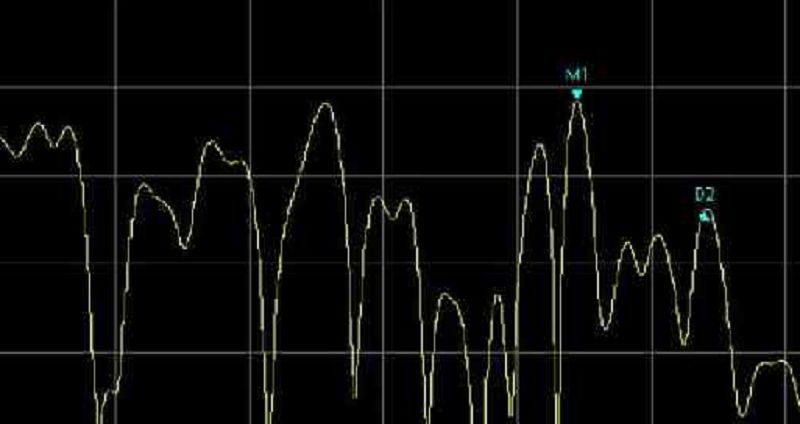

What does D2 indicate?

The value of the signal at that point

Difference in frequency and level from M1

Difference in level from M1

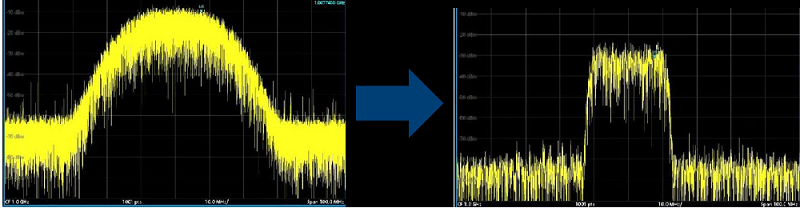

How do you transform the signal as above?

Reduce Resolution Bandwidth

Increase Video Bandwidth

Reduce Video Bandwidth

Increase Resolution Bandwidth

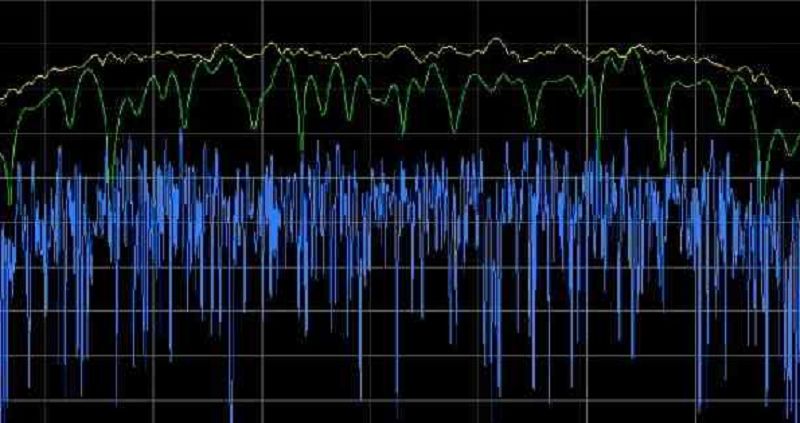

What does the blue spectrum in the above image indicate?

Blank trace

Clear Write trace

Max Hold trace

Min Hold trace

What is the maximum permissible power at the input of the FSV30?

-20dBm

+20 dBm

0 dBm

+30dBm

What does the PRESET key on the Spectrum analyzer do?

Find the best setting for Spectrum analysis

Loads a saved setting

Resets the instrument to Factory default state

None of the above
