FSG#103_DONE 27.12.2020

1)Which of the following is/are not acceptable with the rules?

A)One set of four tires on rims for wet conditions have to be presented for pre-inspection

B)Only the shortest driver of the team should be presented at mechanical inspection

C)After passing the noise test only the function of the master switch and the cockpit-mounted shutdown button will be tested.

D)Violation of the rules without advantage for the team on acceleration event comes to a penalty of 0.3s at the specific event

3)The tensile strength in austenitic stainless steel can be increased by:

A)Hardening and cold working

B)Normalizing

C)Martempering

D)Full annealing

6)Throttle cables must be located:

A)50mm from any exhaust system component and inside of the exhaust stream.

B)1.97inches from any exhaust system component and inside of the exhaust stream.

C)0.17feets from any exhaust system component and inside of the exhaust stream.

D)None of the above

7)Select the correct sentence for a superficial Rockwell hardness tester.

A)Scale symbol: 30N , Indenter: 1/16in. ball , Major load: 15kg

B)Scale symbol: 45N , Indenter: Diamond , Major load: 45kg

C)Scale symbol: 30T , Indenter: 1/16in. ball , Major load: 15kg

D)Scale symbol:15W , Indenter: 1/8in. ball , Major load: 30kg

9) Which of the following does not comply with the rules?

A)A push to open circuit shutdown buttons

B)A symbol consisting of a red spark on a blue-edged white triangle affixed near each shutdown button

C)Not removing the shutdown buttons during maintenance

D)A cockpit-mounted shutdown button with 12.1mm radius

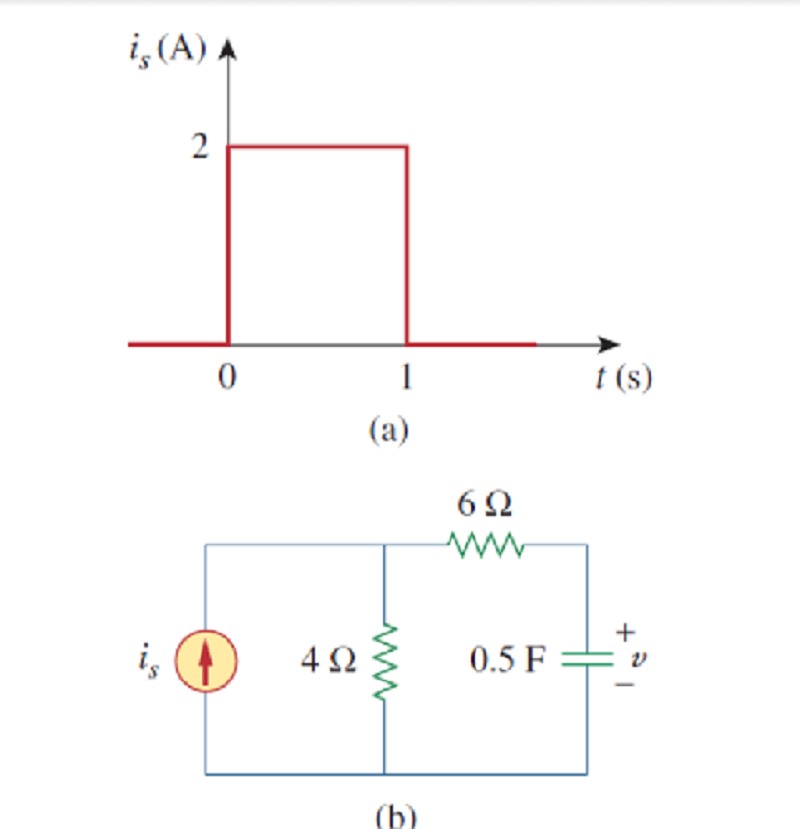

10)If the waveform in Fig 7.116(a) is applied to the circuit of Fig 7.116(b), find v(t) for 0<t<1sec. Assume that v(0)=0.

A)8*(1-e^(-t/5)) Volt

B)4*(1-e^(-t/6)) Volt

C)6*(1-e^(-t/9)) Volt

D)1.45*e^(-(t-1)/5) Volt
