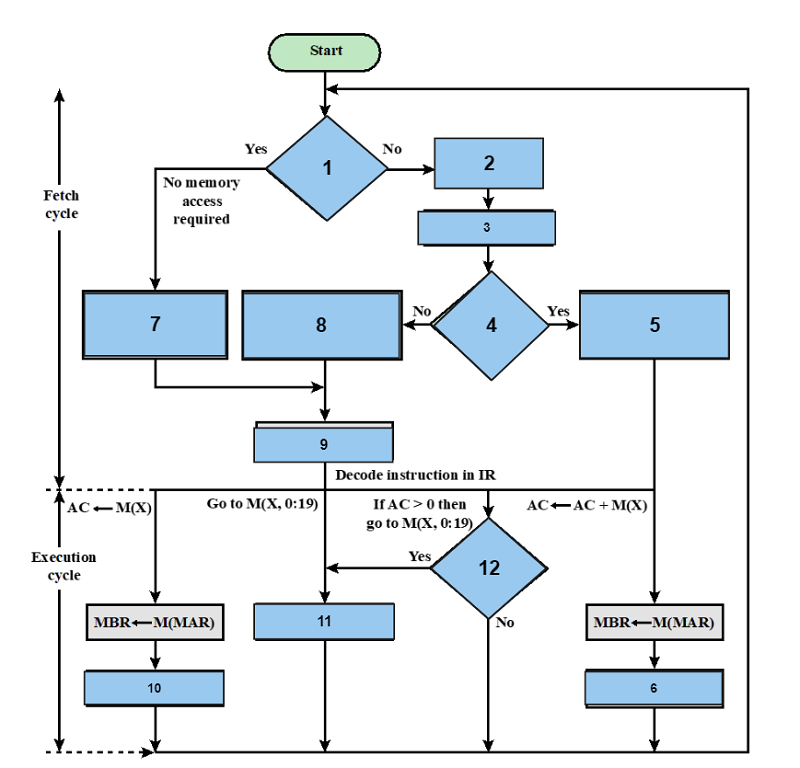

Flowchart

Put every statement in the right place

Is next instruction in IBR?

MAR <- PC

MBR <- M(MAR)

Left instruction required?

IBR, IR, MAR <- MBR

AC <- AC + MBR

IR, MAR <- IBR

IR, MAR <- MBR

PC <- PC + 1

AC <- MBR

PC <- MAR

Is AC > 0?
