N-MOSFET and BSPD Circuit Knowledge Quiz

Test your knowledge on n-MOSFETs, BSPDs, and their functionality in circuit design. This quiz is designed for those with a technical background who want to sharpen their understanding of electronic components.

Challenge yourself with:

  • 11 insightful questions
  • Multiple choice and integer answer formats
  • Real-world applications and theory
11 Questions3 MinutesCreated by DesigningCircuit101

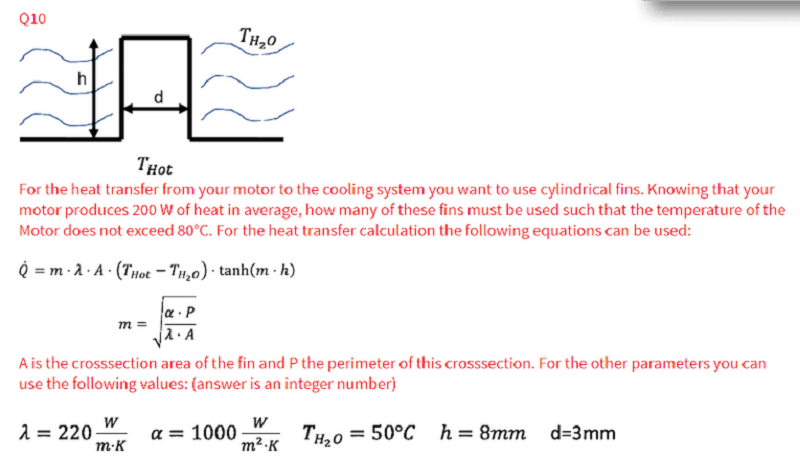

Give your answer as an integer number
An n-MOSFET with V(gs,th)=1V and Vgs=1.5V is integrated in a circuitry. In general, the drain source of the n-MOSFET without considering the body diode can be

Only positive
Not below the threshold current
Either positive or negative
Only negative
The BSPD must open the shutdown circuit if hard braking occurs and the delivered power to the motors is higher or equal to 5kW at the same time for more than 500ms.
The BSPD must open the shutdown circuit if hard braking and power to the motor is over 5kw occur at the same time for more than 500ms.
Which statement about the BSPD is wrong?

To detect hard braking a pressure sensor must be used
The BSPD must open the shutdown circuit if the hard braking and power to the motor is over 5kW occur at the same time for more than 500ms
The current sensor must not be installed inside the TSAC
Standalone is defined as there is no additional functionallity implement on all required PCBs . The interface must be reduced to the minimum necessary. Diagnosis signals, which cannot influance the intended functionalliry in any state, are allowed
The BSPD must be directly supplied by LVMS

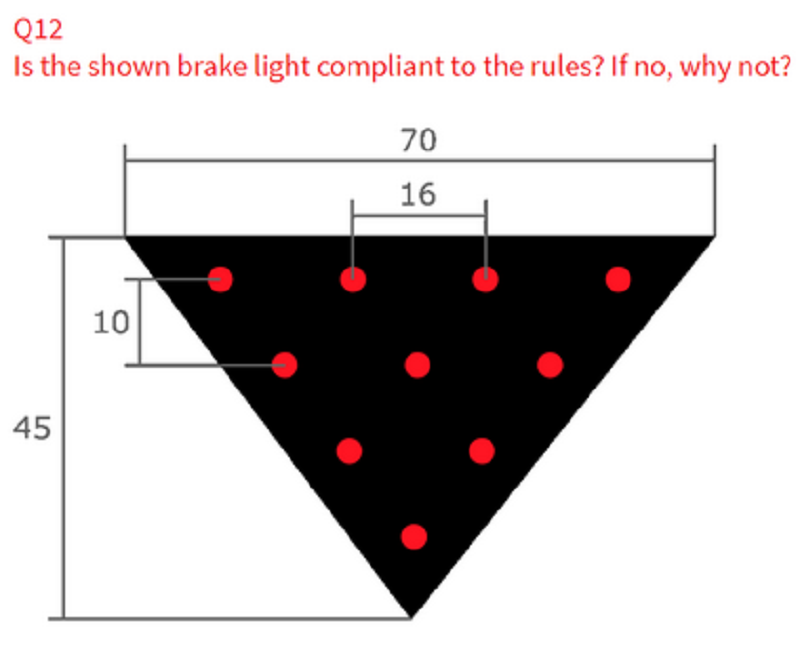

No, other reason
No, because the illuminated surface is not big enough
Yes
No, because the LEDs are too far apart form each other
Give your answer rounded to 2 decimals.

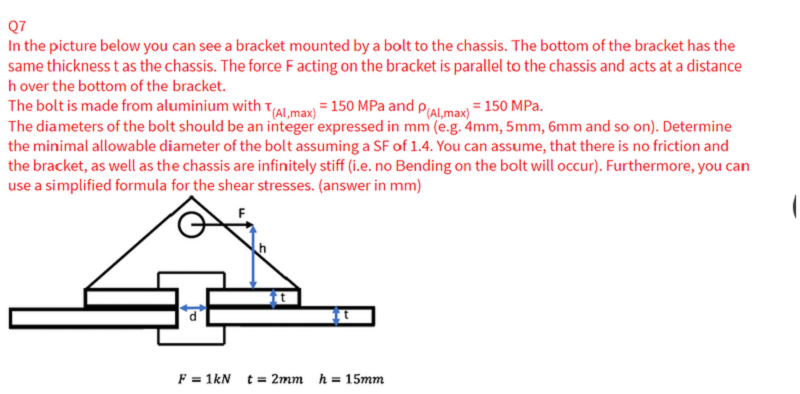

Give your answer as an integer number
If two analogs APPS are used, it is sufficient to have transfer functions with:
Different offsets
Different slopes
Different offsets and postive slopes
Not crossing slopes with a distance of at least 10% pedal travel

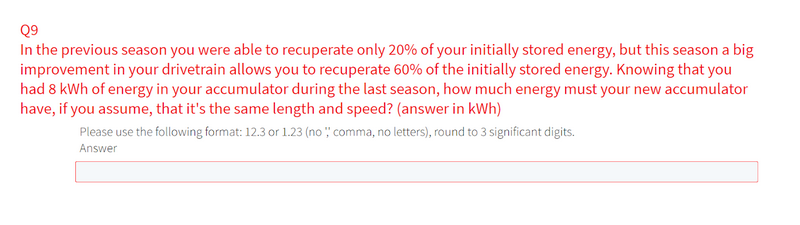

Give your answer with 2 decimal points.

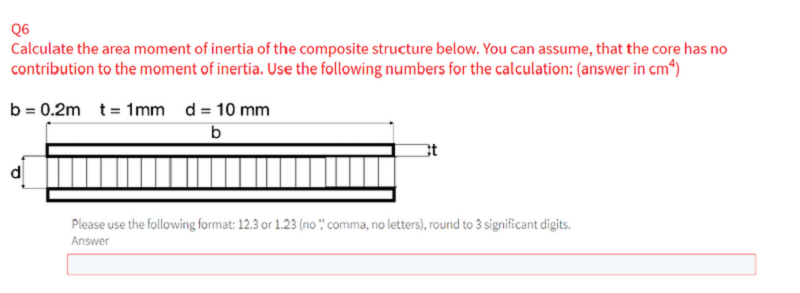

Give your answer with two decimals.
Two decimals
2 decimals
