Instrument Calibration Quiz
Testing your knowledge on various instruments and calibration techniques can be both insightful and fun! This quiz covers topics related to measuring devices, control systems, and their applications in industrial settings.
Key Features:
- Multiple choice questions
- Focus on practical applications
- Enhance your understanding of instrumentation
This measuring instrument are the type of semi conductor meaning you have the greater of the resistance, they are conductive a materials the lower resistance that has insolating material is______
Thermocouple
Resistance temperature Detector
Thermistor
RPT 100
a type of calibratiions error in which are the shift are the fun
Zero shift
Expand ship
Linear calibration error
Secrecies calibration error
It is also known as the feedback control sytems because of the output....
Closed loop
Open loop
A device in which the measure the concentration of the specific substances for the purpose of measuring and controling of this concentration in the process steam the presence of dangerous concentration of the specific substances to the water...?
Tachometer
Laser thermometer
Safety glass Analyzer
PH heater
The following symbol below representative?
Flow line
Processor
Terminator
A simple exmaple of flow metering device in which is uses a solid object.... Of the float indicator?
Turbine
Vertex
Rotameter
It is a single form of continuous control that can be used in closed loop system. But it does not always bring the system to the desired set point?
Cascade
Proportional
Derivation
Integral
It is a type of thermocouple of a device in which it used in primary measuring the temperature of non corrosive gas...
Exposed junction thermocouple
Insolated
Sealed
Junction thermocouple
The test equipment made of the resistance, inductance, capacitance which can increase the value of switching for the contact input and output.
Humidity calibrator
Temperature calibrator
Decade box
Pressure calibrator
A collection of data in which the behavior of the temperature response in the value of resistance?
Flow chart
Temperature chart
Resistance Temperature Detector
Gun Chart
The following statement are the advantages of PLC based on the control except?
PLC manufacturer
PLC integration of the hardware
Perceived to the chief
Durability
The flow chart symbol below represent what?
Predefined process
Precision
Termination
Process
This is a schematic representation of the pipeline equipment. Control system found on the process of the environment and also shipping industry?
Piping instrumentation Diagram
Piping Motor Diagram
Schematic Diagram
Block Diagram
A type of motor that can be rotate with a great precision.. Same specific angle?
Servo motor
Stepper motor
Induction motor
Hydraulic motor
A type of temperature measuring device in which indicate the temperature measurement with a charge of voltage as a temperature... Is not necessary linear?
Thermometer
Bimetallic
Thermocouple
RTD
Is a type of thermocouple device in which it used the application were the fluid or gas being measured is corrective or otherwise... Thermo elements?
Exposed junction thermocouple
Insolated Junction thermocouple
Sealed Junction thermocouple
Earth
Device sense the difference in pressure between of two ports and outputs a signal representing the pressure in relation of the calibrated range?
Manometer
Ph meter
Pressure transmitter
Tachometer
Effective technology for the right visual level for the tank?
Pressure gauge
Floating device
Hydrostatic
Level gauge
The cooling water outlet temperature is usually maintain at about what?
85-90 degree C
78 - 82 degrees F
90 - 100 degree C
85 to 90 degree F
It can be defined to resistance the flow of the fluid?
Pressure
Resistance
Viscosity
Frequency
The fuel is heated and viscosity of the fuel reduce to CST?
13 - 15 CST
15 - 16 CST
8 - 12 CST
3 -5 CST
The elements takes the ouput from the sensor and convert into the form in which suitable in the display and onward transmission in some control systems
Transmission
Signal processor
Signal Conditioner
It is used an element which convert the output of the sensor into the suitable form for the further processing?
Sensor
Signal processor
Receiver and output devices
Signal conditioner
It is a type of measuring device sensor with are the most common type of the platinum resistance thermometer?
Thermocouple
RTD
PT 100
Barometer
This type of calibration of tools can be develop to help the manage and data associated with calibration and to make the instrument technical.. Minimize human error
Automated Calibration
Linear calibration
Zero calibration
Given the main engine maneuvering diagram 150 stand for
Ball valve
Switch
Air receiver
Air pressure regulating/reduction unit
To justify the high cause every possible control fun
Centralized computer
Back computer
Front computer
HAYS
. In this type of control the output of the controller is quickly changed from maximum to zero
On/off controller
Derivative controller
Integral Controller
Proportion Controller
Given the diagram, an increasing pressure applied to the low port of a dp transmitter will drive the output signal to
Drives the output toward 4 amp
Drives the output toward 20 amp
Drives the output toward 7 amp
Drives the output toward 60 Hz
The following below are the best installation method of level switches for correct level measurement except
Keep sensor on the path of falling material or from falling material
Understand the switch type
Proper alignment
None of the above
Very common form of on/off valve(produce magnetic field when actuated)
Solenoid valve
Gate valve
Ball valve
Relief valve
Given the main engine maneuvering diagram item no. 74 stands for
Air receiver
Compressed air system
Fresh water tank
Boiler drum

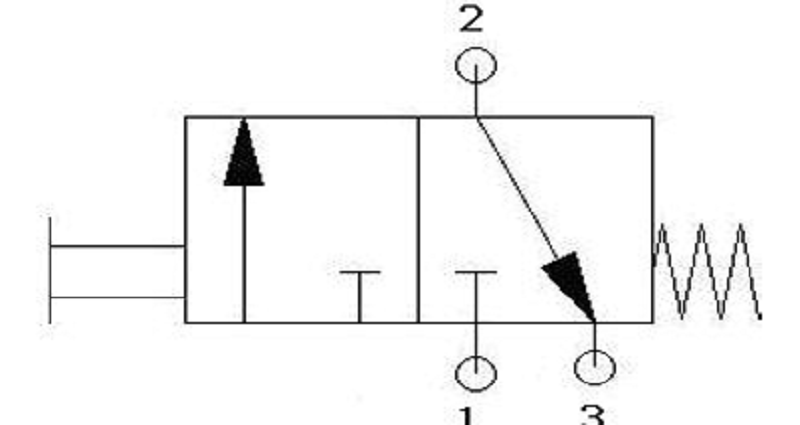

Given solenoid valve
3/2 way normally open solenoid driven spring returned sol valve
4/2 way normally open solenoid driven spring returned sol valve
5/2 way normally open solenoid driven spring returned sol valve
6/2 way normally open solenoid driven spring returned sol valve

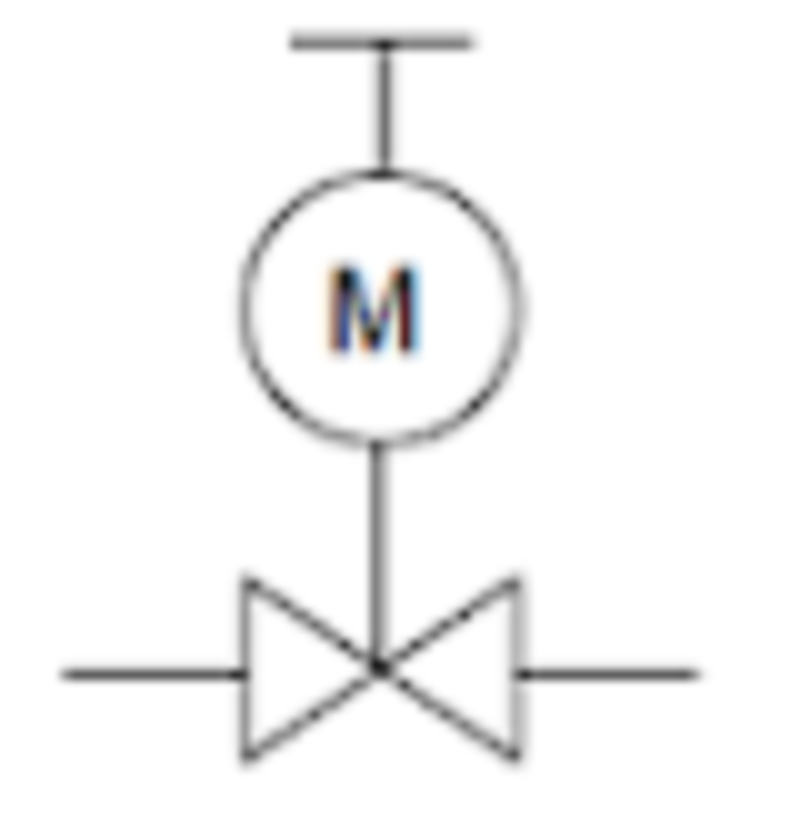

The symbol below is an example of
Electric motor with hand jack actuator
Electric motor with blow jack actuator
Hydraulic motor with hand jack actuator
Electric motor with hand jack transmission
Given the ME diagram item 137 stands for
Non return valve
Return
Back
Follow
This presents ,measured value in a form which enables an observer to recognize it
Receiver or output device
Receiver or input device
Sender or output device
Sender or input device
Is the comprision of measurement value delivere by device under test with those of a calibration standard know accuracy
Instrumentation
Control
PID
None of the above
Measurement instrument device that operates electrical contact when a preset of fluid pressure is reached
Pressure switch
Limit switch
Lights off
Level switch
. Is a device that can simulate temperature sensors or a device that sources temperature as a point of reference at known level
Temperature calibrator
Pressure Calibrator
RTD
Flow calibrator
The last step of automation is the action from the measurement and evaluation operation
Control
Manual
Automatic
PLC
is the type of process control wherein the input(control action) doesn’t depend on the output of the system
Open loop control
Closed loop control
Semi closed loop control
All of the above
The best installation method for levekl switches when being used as a low level alarm is
Mounted vertically at the detection level
Mounted horizontally at the detection level
Mounted 90 degree at the detection level
Mounted 60 degree at the detection level
Is a type of thermocouple device in which is a variation of the insulated junction that is rated for higher pressure application and has a faster response time
Earth junction temperature
Sealed junction temperature
Insulated junction temperature
None of the above

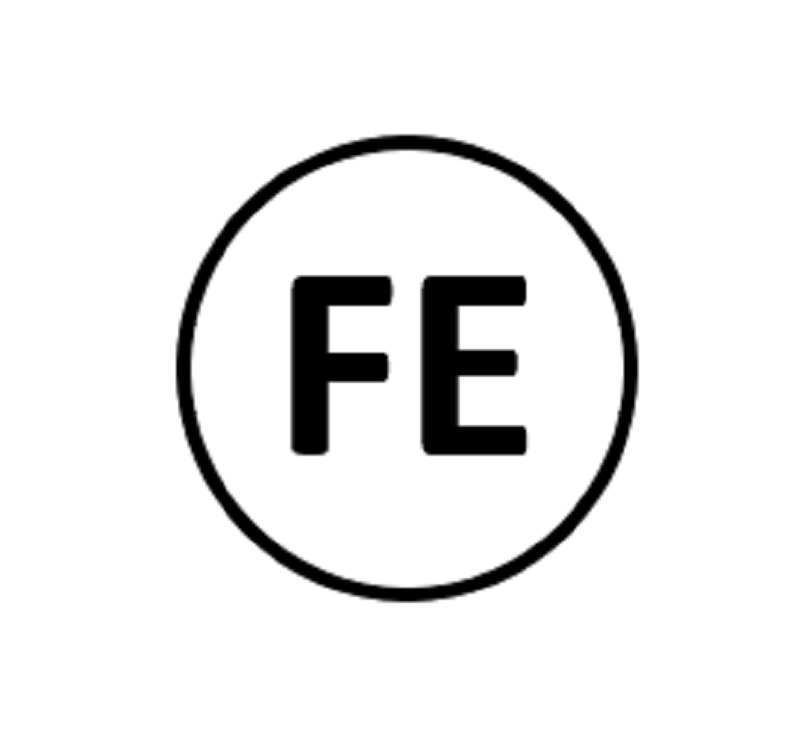

The symbol below is an example of
Flow element
Processor
Conditioner
Shampoo
a type of calibration error which causes the instrument response fun
Linear calibration error
Vertical calibration error
Horizontal calibration error
None of the above
Is a comparative device that receives an input
Electronic controller
Pneumatic controller
Mechanical controller
Hydraulic controller
Is a type of measuring device an electronic device used to determine the temperature by measurering resistance
Resistance temperature Detector
PID
Thermistor
Thermocouple
One of the most common final control elemrts in industrial control systems that woeks ro restrict the flow of fluid through a pipe at the command of a remotely sourced signal
Control Valves
Ball valves
Gate valves
Relief valves
The flowchart symbol represents
Decision
Precision
Calibration
Potion
Measurement instrument device that detects the level of substances like liquids, slurries, granular
Level Swicth
Limit switch
Pressure switch
Temperature Switch
