Work Schedule (Part 1)

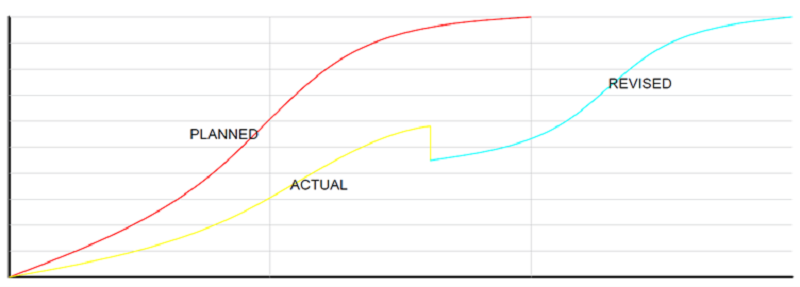

Given the S-Curve, what is the reason for the revision? See Figure 1.

a. Time Extension without Variation Order

b. Variation Order without Time Extension

c. Suspension and Resumption Order

d. Variation Order with Time Extension

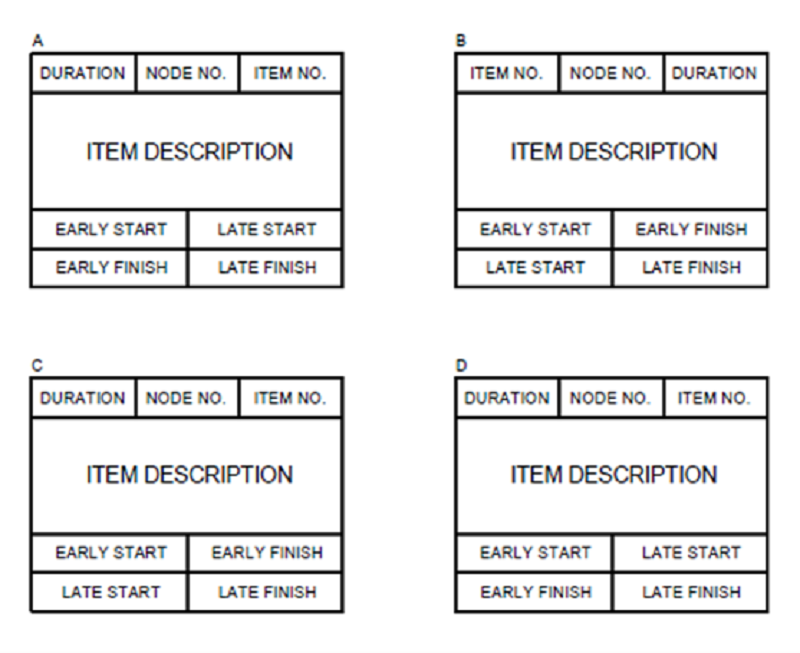

What is the DPWH Standard PDM Node? See Figure 2.

What is the percent weight distribution in a Normal S-Curve?

a. 20-30-30-20

b. 25-50-25

c. 25-25-25-25

d. 30-40-30

What does the acronym PDM stand for?

a. Precedence Diagram Method

b. Presedence Diagram Method

c. Precedence Diagramming Method

d. Presedence Diagramming Method

Who will prepare the complete set of the Construction Schedules prior to the signing of the Contract?

a. Bids and Awards Committee

b. Planning and Design/Division

c. Contractor

d. Construction Section/Division

According to Annex “A” of the Revised IRR of RA ______, the program of work shall include, among other things, estimates of work, items, quantities and costs and a PERT/CPM network of the project activities.

a. 8194

b. 9148

c. 9184

d. 8149

It is the amount of time a scheduled activity may either be delayed or extended from its early start date without delaying the project finish date.

a. Dummy

b. Float

c. Lag

d. Lead

It is the Department Order instructing the adoption of the PDM as the project scheduling technique to be utilized in DPWH infrastructure projects.

a. D.O. no. 137, series of 2016

b. D.O. no. 137, series of 2015

c. D.O. no. 133, series of 2015

d. D.O. no. 133, series of 2016

Which of the following is NOT a use of Construction Schedules in DPWH projects?

a. Determination of Construction Duration

b. Decision Making

c. Monitoring of Accomplishments

d. Basis for Billings

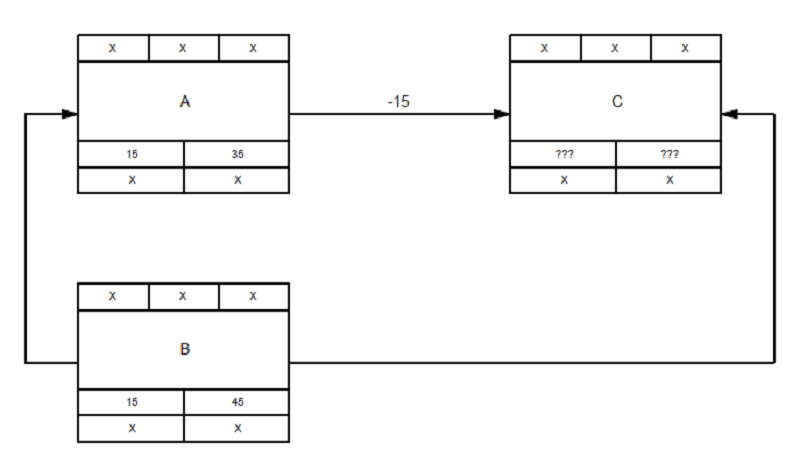

Complete the Forward Pass. Duration of Activity C is 30. See Figure 3.

a. 15 and 45

b. 20 and 50

c. 35 and 65

d. 50 and 80
